| Icemedal 5 Ton/Day Edible Cube Ice Production Line is a compact and integrated solution for producing and packing food-grade cube ice. Designed for small ice factories and commercial ice businesses, the complete line combines cube ice making, de-icing, conveying, automatic weighing, bag filling and sealing in one streamlined production process. | |||||||||
Icemedal

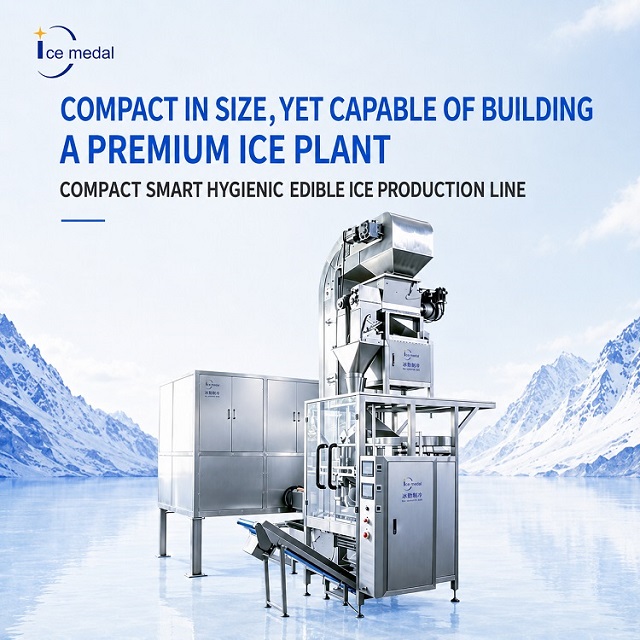

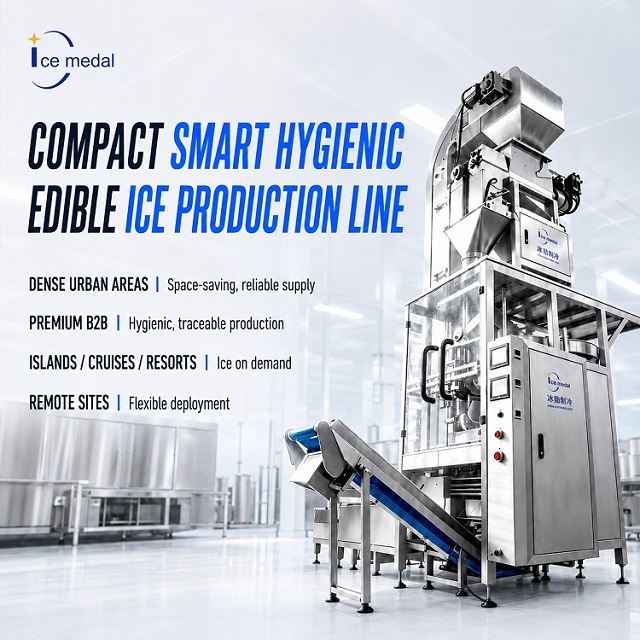

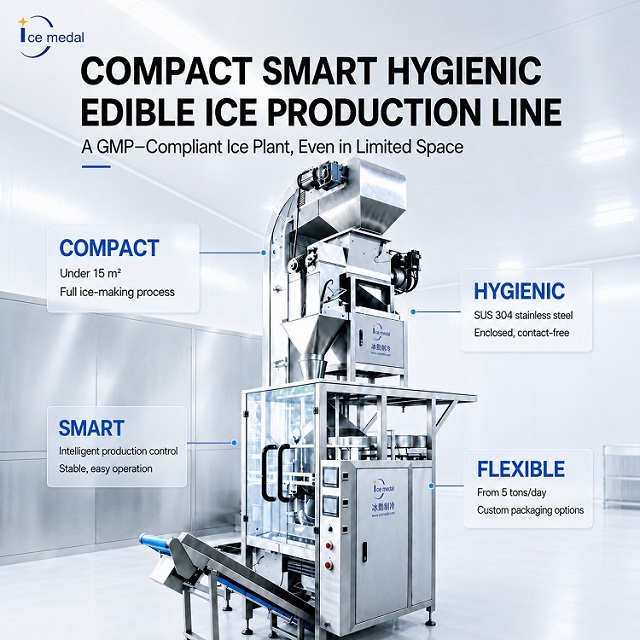

Icemedal 5 Ton/Day Edible Cube Ice Production Line is a compact turnkey solution for producing and packing food-grade cube ice. Designed for small ice factories and businesses that need an efficient ice production solution with limited space and investment, the complete line integrates ice making, de-icing, conveying, automatic weighing, bag filling and sealing into one production process.
The production capacity can be customized according to your market demand, factory space and investment plan.

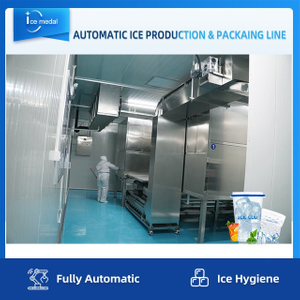

The edible cube ice production line combines the main equipment required for commercial ice production and packaging:
Cube Ice Machine
Ice Conveyor
Automatic Weighing and Filling System
Ice Bagging Machine
Bag Sealing Machine

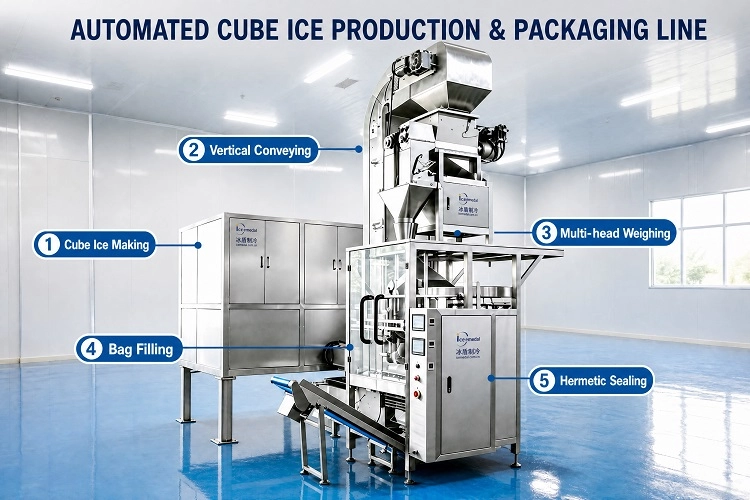

The complete process runs from:
Ice Making → Conveying → Weighing → Bag Filling → Sealing
This integrated design reduces manual handling and helps create a more efficient workflow from ice production to finished bagged ice.

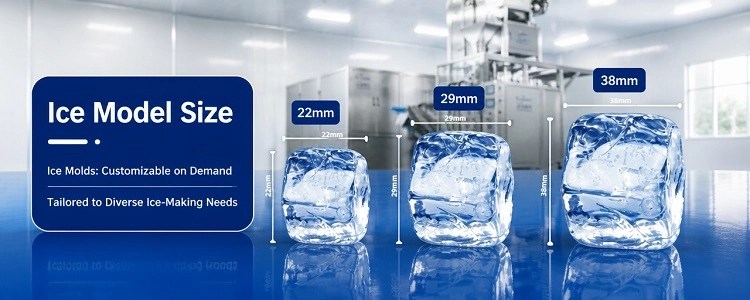

Different cube ice sizes are available for different applications and market requirements:
22 × 22 × 22 mm
29 × 29 × 22 mm
38 × 38 × 22 mm
The cube ice size and production capacity can be customized according to your requirements.

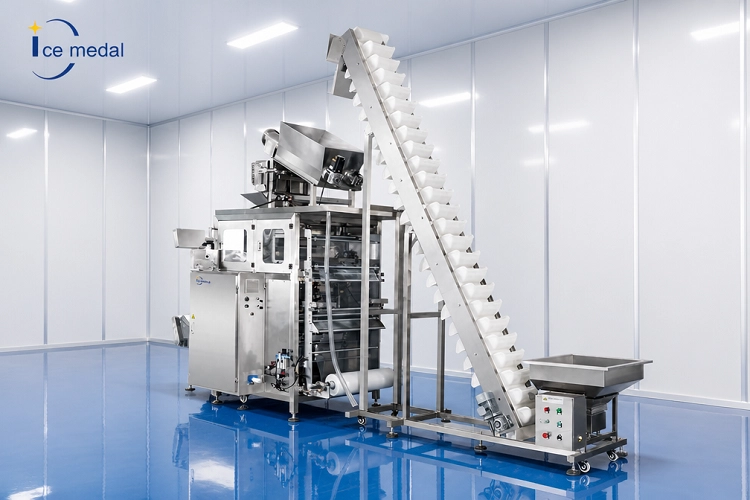

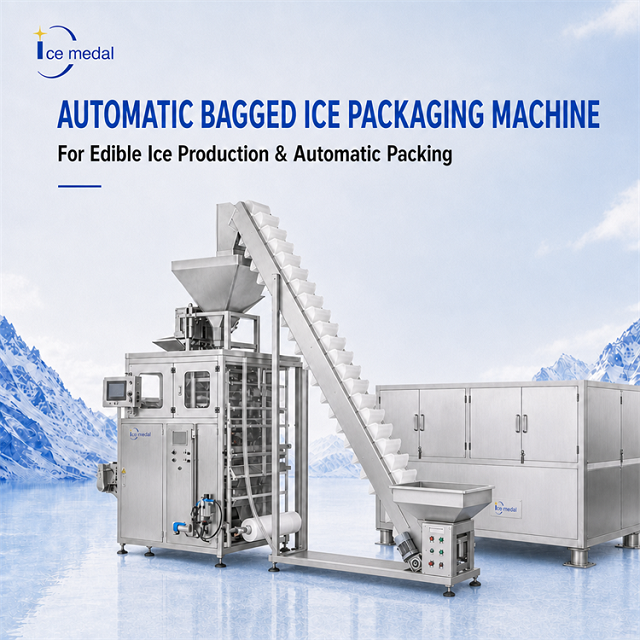

The automatic packing system is designed for convenient commercial ice packaging. Standard bagging options are available from 2–5 kg per bag, while other packaging weights can be customized.
The system can automatically weigh and fill the required amount of ice before sealing the bag. We support customized packaging bags are also available, allowing businesses to use their own branding and packaging design.

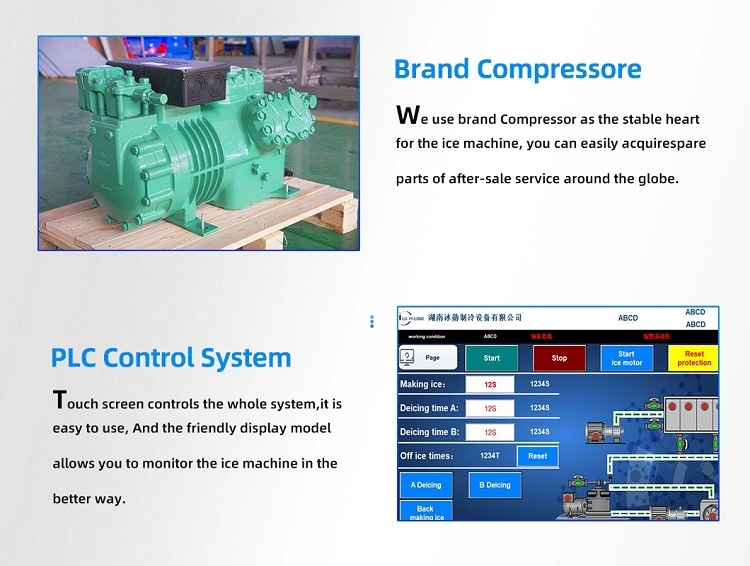

The ice production line can be configured with well-known refrigeration components according to the required capacity and operating conditions.
Compressor: Bitzer / Refcomp / Hanbell
Refrigerant: R404A / R507
Cooling: Air cooled / Water cooled
PLC: Siemens
Power Supply: 220V / 380V / 440V, 50/60Hz, 3 Phase
The refrigeration system and electrical configuration can be customized according to the customer's local power supply and project requirements.
The bagged edible cube ice production line can be used for a wide range of commercial and food-related applications, including:
Small ice factories
Chain Supermarkets and Chain convenience stores
Ice distribution businesses
Coffee factories
Beverage and fruit juice factories
Baking industry
Food and catering businesses
Other commercial ice applications
For new ice businesses, the compact design and integrated packing system can help simplify the setup of a small edible ice production facility.
Key Factor | Automated Bagged Ice Production Line | Manual Ice Packing |
Space | Complete ice making, conveying, bagging and sealing about 15 ㎡ of floor space. | Requires dedicated working space for manual packing, handling and product movement |
Hygiene | Reduces direct handling of ice during conveying and packing operations | Involves more direct operator contact during packing and handling |
Labor | Automates routine conveying and packing tasks, helping reduce manual handling requirements | Requires personnel for manual packing, handling and related operations |
Market | Well suited to chain supermarkets, food service businesses, ice distributors and other commercial ice operations | Offers flexibility for smaller-scale operations and businesses with manual packing requirements |
Every market has different requirements for ice capacity, cube ice size, packaging weight, power supply and factory layout. Icemedal can customize the ice production line according to your project requirements.
From the cube ice machine and conveying system to automatic weighing, bagging and sealing, the complete solution is designed to provide a practical production line for businesses starting or expanding an edible ice operation.
Tell us your required capacity, ice size, packaging weight and factory space, and our engineers can design a suitable cube ice production and packing solution for your project.
What equipment is included in the automatic ice packing line?
A complete solution can include a Cube Ice Machine, Ice Conveyor, Automatic Weighing and Filling System, Ice Bagging and Bag Sealing Machine. The configuration can be adjusted according to the required production capacity and packaging process.
How much space is needed for the 5 ton edible ice production line?
The compact production line requires less than 15㎡ of footprint, making it suitable for customers who have limited space but want to establish a complete edible ice production business.
IIs the cube ice production line fully automatic?
The production line can integrate automatic ice making, de-icing, conveying, weighing, bag filling and sealing. This helps reduce manual handling and provides a continuous workflow from ice production to finished bagged ice.
What is the voltage and power supply?
We can customize according to your local standard: 380V/420V, 50Hz/60Hz,3 phase.
What bag sizes can the automatic packing system handle?
The standard packing range is 2–5 kg per bag. Other packaging weights can be customized according to your sales requirements. Customized packaging bags and bag designs are also available.
Can the production capacity and configuration be customized?
Yes. Icemedal can customize the production capacity, cube ice size, packaging weight, electrical configuration, cooling method and production line layout according to your project requirements.
Can I get a complete turnkey ice factory solution?
Yes. Icemedal can provide a customized solution covering ice production, conveying, automatic weighing and packing, as well as other equipment required for your project. The system layout can be designed according to your required capacity, available space and production process.
