VCR
ICEMEDAL
1. Our cold room/freezer room specification:
1. Temperature range: -60°C to +20°C (-60°F to +68°F) are all available.
2. Functions: fresh-keeping, freezing, quick-freezing, fire-proof, explosion-proof, air-conditioning are all available.
3. Easy to install and dismantle.
4. Control box: Digital indicator.
5. Type of door: Sliding door/Swing door.
6. Size of door: as your demand.
7. Refrigeration unit: Copeland, Bitzer, Hitachi, Franscold and others.
8. Local power supply: 380V or 220V, Single phase or triphase, 50Hz or 60Hz.

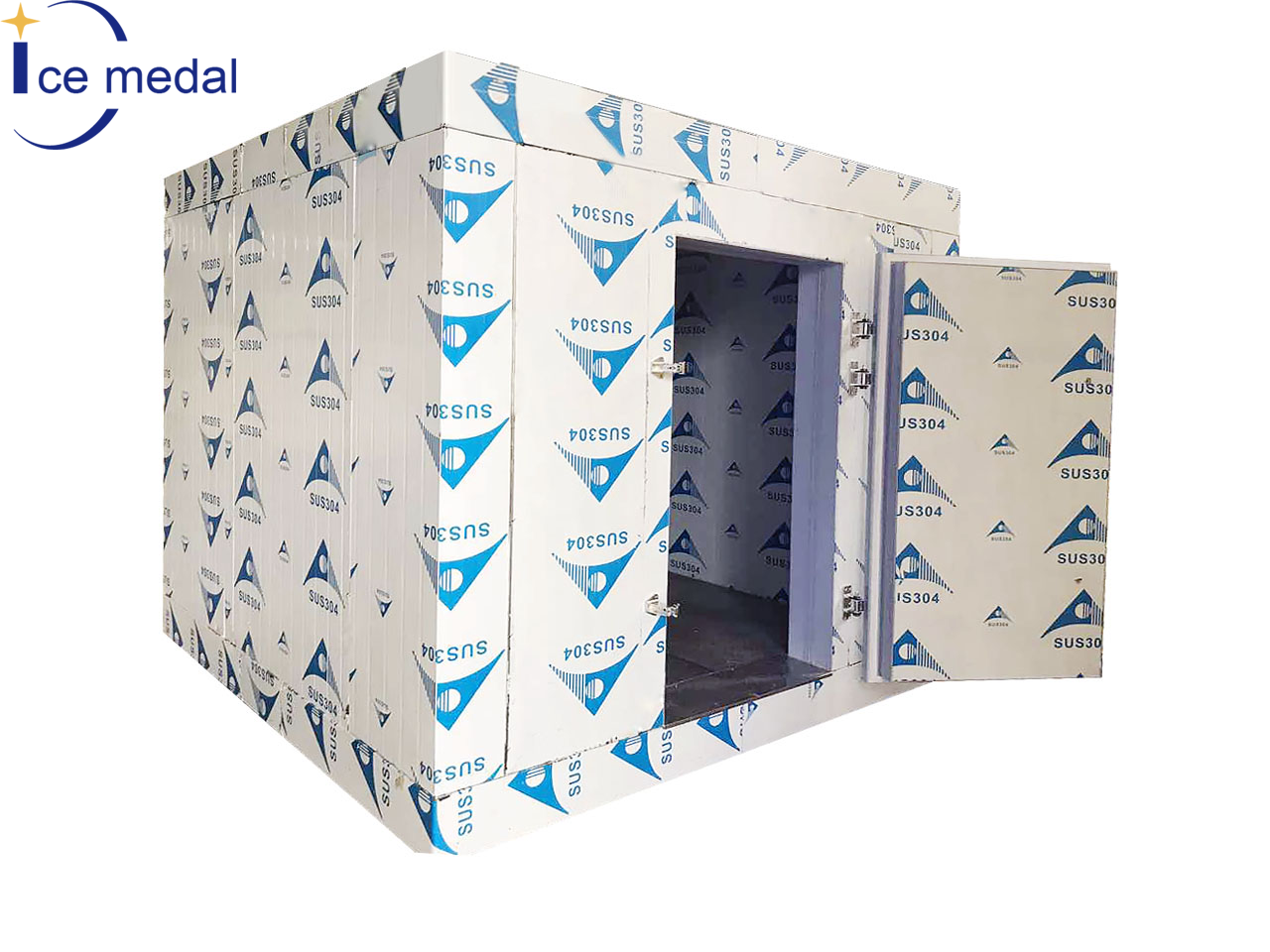

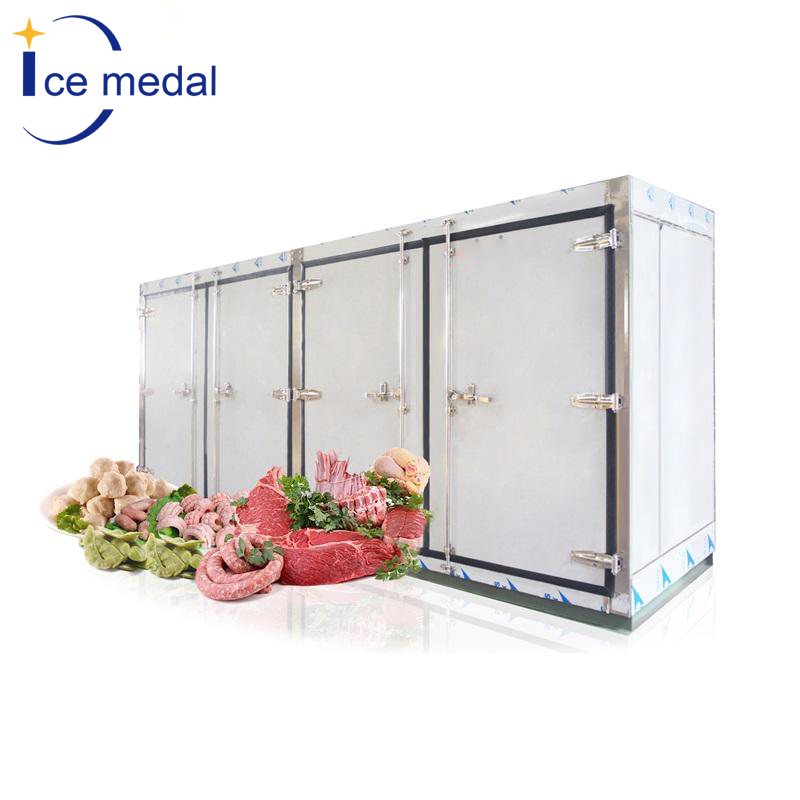

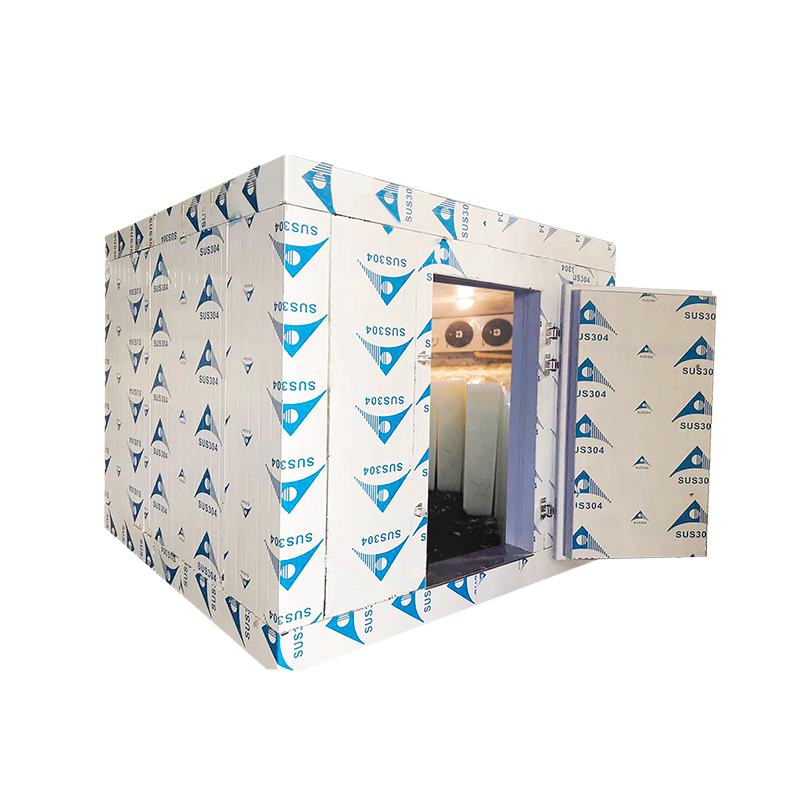

2. Detailed Images:
3. Cold room parameter:
Thickness | Suitable temperature |
50mm | 5 degree or above |
70mm | -5 degree or above |
100mm | -28 degree or above |
150mm | -35 degree or above |
200mm | -45 degree or above |
The polyurethane cold panel is process by mold high pressure foam ,with a certain standard size,the width of the cold panel regards 295.3 as the modulus, the length of the cold panel not more than 12 meters, non-standard sizes can be customized ,the price is extra.
All panels are made tongue and groove edges and are locked together with cam lock fasteners, which can be unscrewed easily with a hexagon.
Varieth panel for optioanl:
A.embossed aluminum plate
B.The monitoring of the steel plate
C.Stainless steel plate
D.Galvanized sheet
E.Color zinc plate
4. Company introduction:
Hunan Icemedal Refrigeration Equipment Co., Ltd. is a research and development, production, sales and service in one of the professional refrigeration equipment manufacturing enterprises. The products mainly include fresh cold room, storage cold room, food processing and sorting workshop, quick freezer storage room, Ice Flake machine, ice cube machine, ice tube machine, ice block machine.
All parts of our equipment from material selection to processing to finished products must go through strict testing and quality control to ensure the quality of equipment. Products are widely used in food processing, aquatic products processing, large supermarket chains, hotels, logistics, Mine Cooling, chemical, ice storage and other fields. Products sell well in all cities of China. Our products are also exported to Africa, the Middle East, Southeast Asia, Australia, South America and other countries and regions. It also brings us a wealth of experience and valuable data to improve our products, so that our products in different environmental conditions can be sustained and stable operation. Adhering to the “Integrity, win-win, enjoy life” concept, has been committed to building modular boutique factory for customers, to provide customers with solutions for profit replication, so as to achieve our "Win-win" business value. Note: "integrity” refers to the integrity of character, and the hard work. "Win-win” refers to the maximization of customer profits, and our company has made profits. "Enjoyable life” refers to the hard work, efforts, create value, leisure time can enjoy life, family harmony.
5. Package and transportation:
6. Application Industry:
Food (meat, vegetable, fruit, dairy, drink), medicine, chemical, electronics, etc.
Storage products | Storage temperature approach |
Vegetable,fruit storage | -5 to 5 degree or above |
Drink,beer storage | 2 to 8degree or above |
Meat,fish freeze storage | -18 to -25 degree or above |
Medicine storage | 2 to 8degree or above |
7. Certification:
8. Installation:
1). Installing by the user: we will tested and install well the machine before shipment, all necessary spare parts, operation manual and CD are provided to guide the installation.
2).Installing by our engineers:
(1) Before our engineer arrived in your site, the installation place, electricity, water and installation tools should be ready. Meanwhile, we will provide you a Tool List with the machine when delivery.
(2) 2~ 3 workers are required to assist the installation for big project.
Guarantee Period: During 12 months after selling, maintenance and parts free of charge
