1 ton Flake ice machine is well known for its convenience and good durability.Have been applied in refreshing vegetable, fruit, in supermarket; blast cooling for processing of fishery products and butchery.
| |||||||||
IMF1
IceMedal

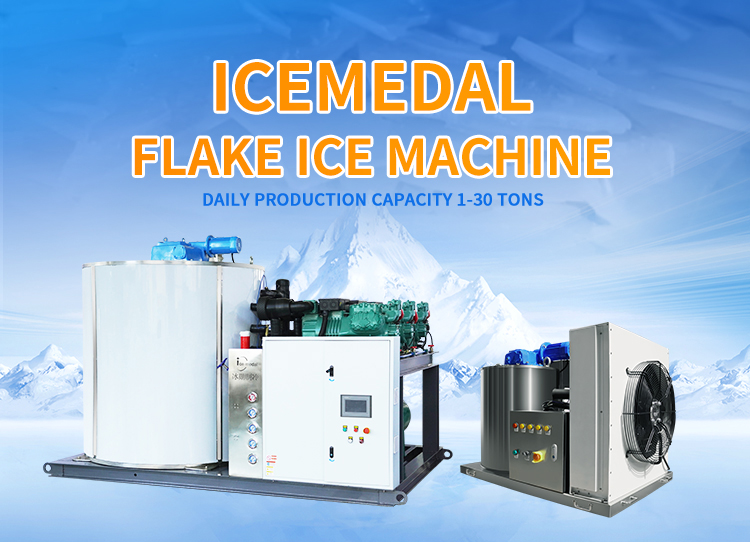

Icemedal IMF1 1Tons Per Day Flake Ice Making Machine for Seafood Preservation

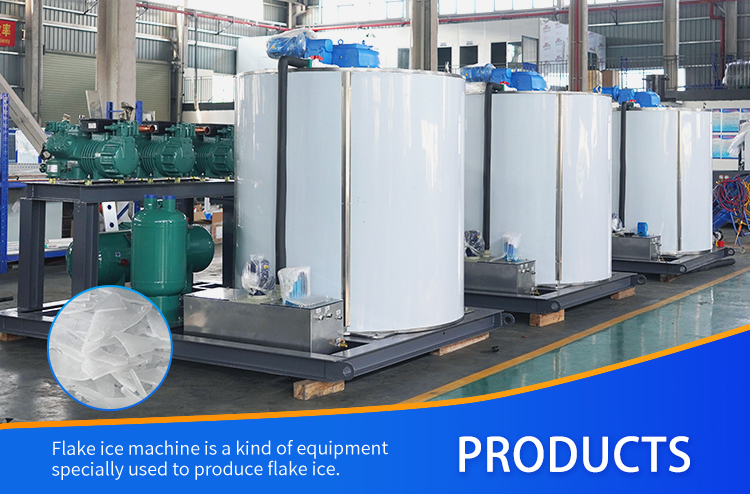

The 1 ton 24-hour flake ice machine IMF10 is widely used in restaurants to preserve seafood and fish. The flake ice machine adopts the latest vertical spiral ice cutting evaporator. When making ice, water is evenly distributed to the inner wall of the ice bucket through the water distribution device. The system consists of a container-type flake ice machine and a cold storage with a rake system.
| The Features of Flake Ice Machine
Spiral Skate Blade design, do not damage skate blade.
Continuous spray welding to ensure that the evaporator is not easily deformed. Reducing the Mechanical Resistance of ice machine during operation.
Smooth flow path, small resistance, improve refrigeration effect, reduce energy consumption.
Even ice thickness, covering an area of large, dry non-adhesion.
Thin, dry, loose white ice. The plane shape is irregular, the thickness is 15 mm-22 mm, the diameter is about 12-45 mm.
Brand Compressor
We use brand Compressor as the stable heart for the ice machine, you can easily acquire spare parts of after-sale service around the globe.
Stainless Steel Evaporator
Ice is forming on the stainless-steel surface, The ice is clear and healthful, And the lifespan is guaranteed.
High Quality Ice Scraper
The ice scraper is made of high density material from U.S, It has long lifespan and reliable performance.
Adjustable Water Spraying System
The water volume can be adjusted by using the valve, The thickness is different with the different water volume, Open more valves to get thicker ice.

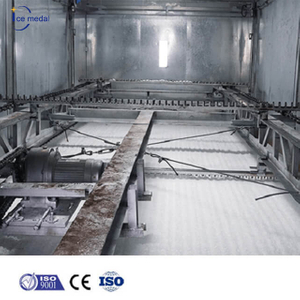

Rake Ice System
Flake Ice Machine Ice Delivery System Rake System, screw transmission, etc. usually used in big capacity flake ice machine.
Auto Control System
The machine is using Simens PLC and touch screen controller for system control,After very short learning,operator may get to handle the whole machine.
| Product Parameters
IMF1 1ton Flake Ice Machine Parameters | ||
Name | Unit | Parameter |
Bitzer Compressor Parameter | Model | 4NES-14 |
Cooling Capacity(kW) | 19.83 | |
Power(kW) | 8.45 | |
Condenser | Model | WN-15 |
Heat Exchange(kW) | 49.2 | |
Condensing Temperature | Degree Celsius(℃) | 40 |
Evaporating Temperature | Degree Celsius(℃) | 20 |
Ambient Temperature | Degree Celsius(℃) | -32 |
Ambient Temperature | Degree Celsius(℃) | 20 |
Refrigerant | R22 | |
Voltage | V/P/HZ | 380/3/50 |
Evaporator | Reducer Power(kw) | 0.37 |
Circulating Pump Power(kw) | 0.12 | |
Brine Pump Power(kw | 9 | |
Cooling Tower | Model | LX-15 |
Power(kW) | 0.37 | |
Cooling Pump | Model | GD40-20 |
Power | 1.5 | |
Machine Dimension(Water Cooling) | L*W*H(mm) | 1500*1250*1260 |

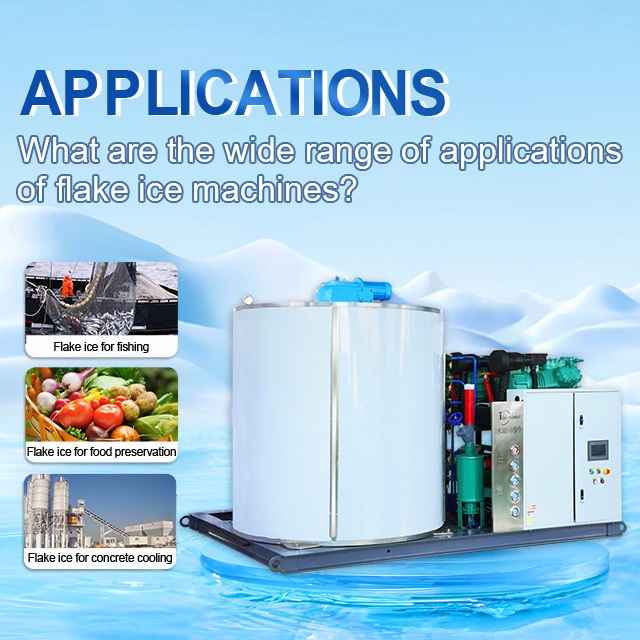

| Ice Flake Machine Application
Flake ice are widely used in aquatic product processing,meat processing,vegetable preservation,supermarkets and seafood markets,cold chain logistics,concrete cooling,chemical industry etc.

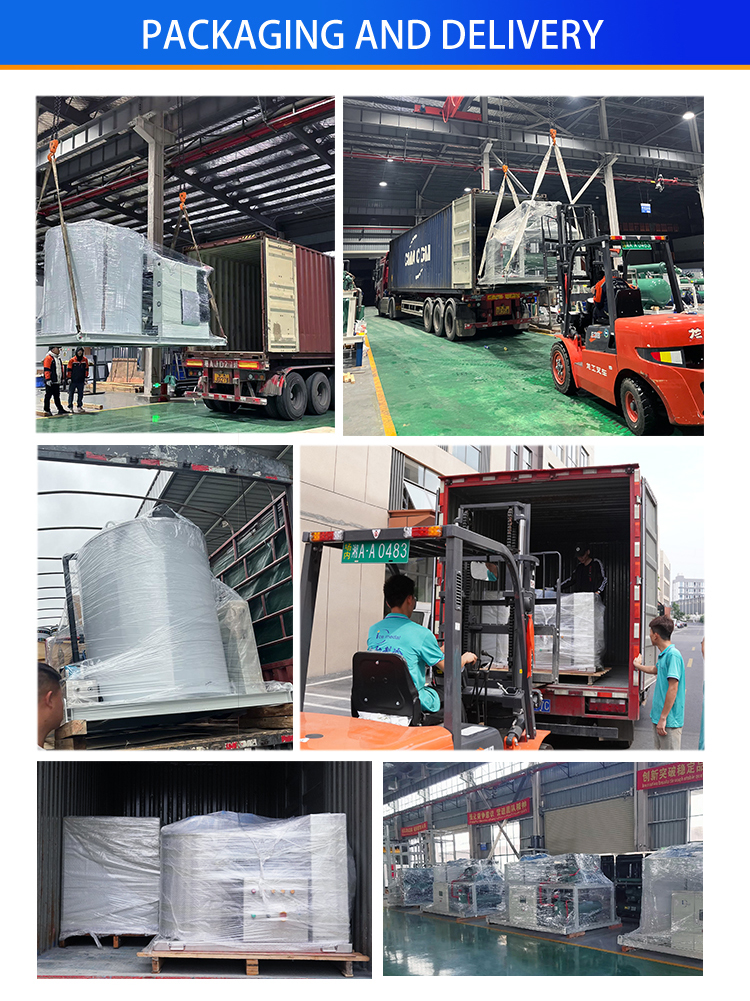

| Product Shipping & Packaging
1. Use bubble wrap or standard wooden case.
2. Completely ice machine contain: ice machine, cooling tower, water pump, water pipes and water pipe fittings.
3. Machine come into use, customer only need prepare power for the machine.
4. All required components for install the machine will be provide
