IMC 1
ICEMEDAL

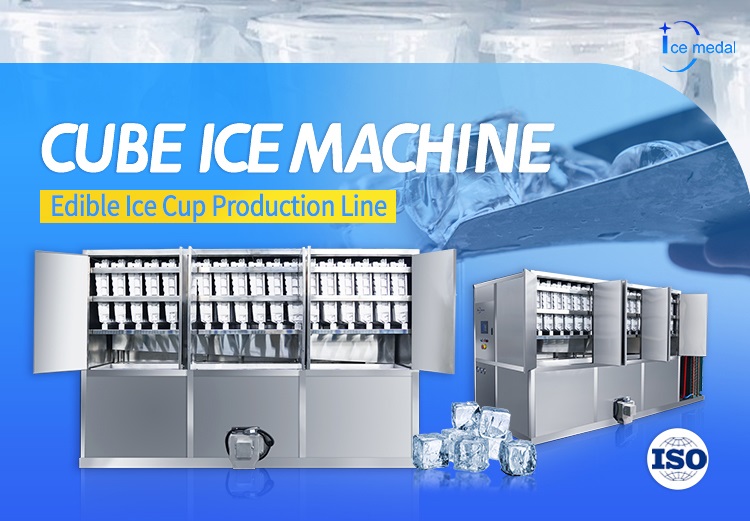

Automatic esophageal ice machine Equipment up to 10 tons shall be of integral design. All the materials which come into contact with ice-making water are edible grade materials. There are a number of stainless steel tube evaporator refrigerant flow between the tube and tube, water in the tube from top to bottom in the role of the water under the spiral flow, water in the flow of ice formation.
Advantages:
The 3d modeling assembly is strict, the structure is compact, the operation maintenance is simple.

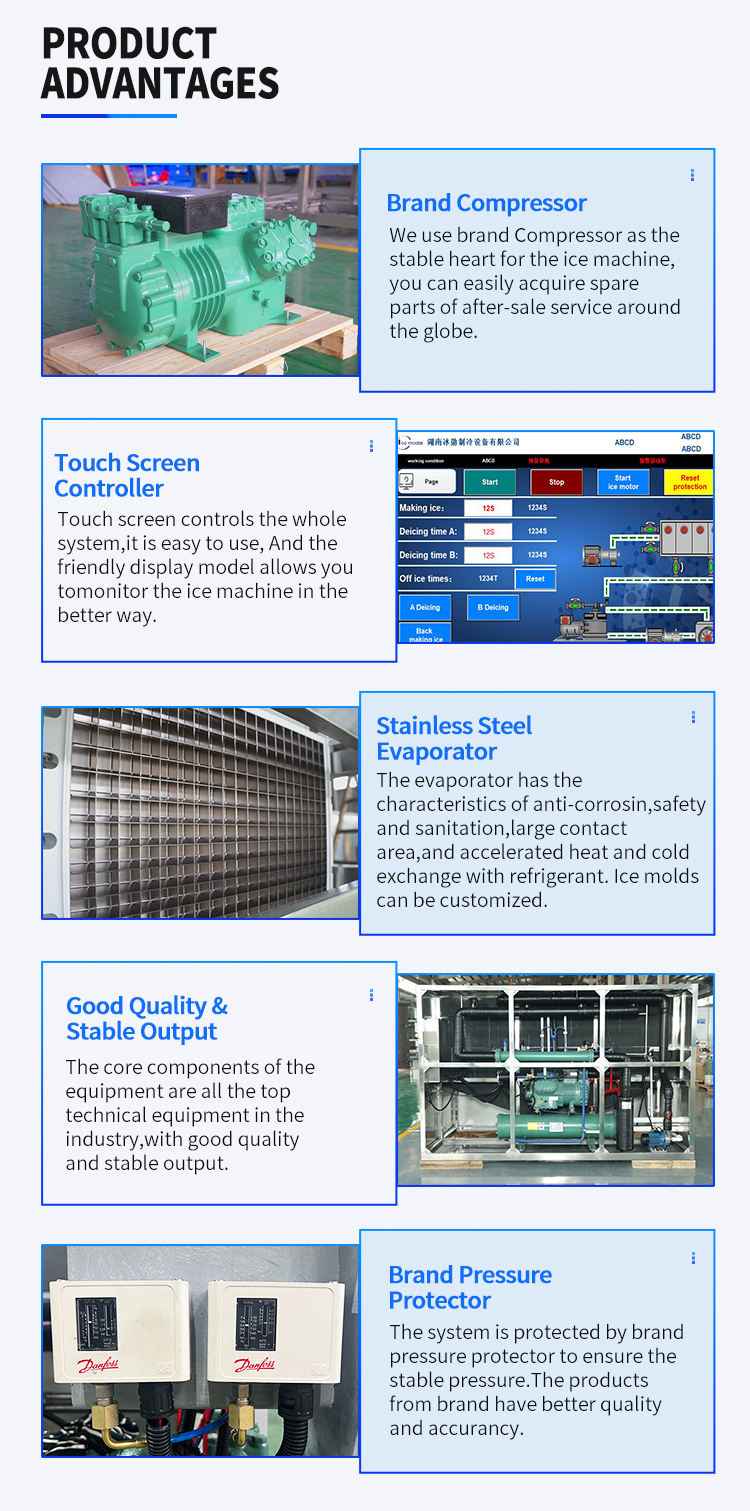

Evaporator heat exchange pipe imported from Japan, welded by hydraulic expansion technology, no leakage, to ensure smooth deicing.
The refrigeration system adopts the design of instantaneous multi-channel interval to ensure the stable operation of the equipment for a long time.
Product Parameters
| IMC 1 1Ton Cube Ice Machine Parameters | ||
Name | Unit | Parameter |
Compressor Parameter | Model | 4EES-4 |
Cooling Capacity（kW） | 11.7 | |
Power（kW） | 4.34 | |
Condenser | Model | WN-5 |
Heat Exchange（kW） | 19.4 | |
Condensing Temperature | Condensing Temperature | 40 |
Evaporating Temperature | Degree Celsius（℃） | -10 |
Ambient Temperature | Degree Celsius（℃） | 32 |
Water Temperature | Degree Celsius（℃） | 20 |
Refrigerant | R22 | |
Voltage | V/P/HZ | 380/3/50 |
Circulating Pump | Power（kW) | 0.37 |
Cooling Tower | Cooling Tower | LX-8 |
Power(kW) | 0.18 | |
Cooling Pump | Model | GD40-15 |
Power | 1.1 | |
Product Features:
Sanitation & Safety: Fully adopted SUS304 stainless steel to build this machine; special water flow design, automatic cleaning, sanitary, safe, and fulfills the demand of QS test standard.
● Low energy consumption: 85~90 kWh/ton in summer, 70~85 kWh/ton if the ambient temperature is lower than 23℃.
● Large capacity: Single machine’s daily capacity can be 1 ton to 20 tons and production is stable, in hot summer we can still reach 90~95% of the rated capacity. If the ambient temperature is lower than 20℃, it can reach 100~130%.
● Stable performance: Ice is crystal clear and hard, well-shaped and beautiful, can be stored for a long time.
● Components brand: Brand Compressor, Brand electric devices .
● Ice cube size: 22*22*22mm / 29*29*22mm / 38*38*22mm or customized.
● Automatic operation: PLC controlled, be able to automatically adjust the thickness of ice, forming ice, harvesting ice, and add water.
● Fully automatic and need no human adjustment.
Product Details:
Nickel-plated copper ice mould
NICKEL-A material with better resistance to accelerated oxidation at high temperatures. The melting point of nickel is about 2 times that of copper, which can protect the plated conductor effectively at high temperature.
304 stainless steel ice hopper
Possessing corrosion resistance, heat resistance, low temperature strength and mechanical properties. Stamping, bending and other hot processing, no heat treatment hardening phenomenon is suitable for food processing, storage and transportation.
PVC Pipe
Additive. With non-inflammable, high strength, resistance to climate change and excellent geometric stability. PVC has strong resistance to oxidant, reductant and strong acid.
FAQ
| Q:Why should I choose Icemedal large cube ice machine instead small commercial machines? |
| A:(1) The small-capacity ice-making machine has a small daily output and cannot meet the market demand; |
| (2) Small-scale edible ice-making machines consume high electricity, and consume 160kw of electricity per ton of ice; |
| (3) The capacity of small-scale edible ice-making machines is relatively low. When the ambient temperature is high, the climate is hot and can not reach the standard; |
| (4) The cooling water of the small-scale edible ice machine cannot be recycled, resulting in waste of water; |
| (5) The small-scale edible ice machine still stays in manual operation, and the intelligent operation is low; |
| (6) The small service life of small-sized ice-making ice machines is also a major drawback; |
