3 ton 24 hrs cube ice machine is the most welcomed ice machine for small or middle sized ice plant. It occupys very little land, and saves much more power than small cube ice machine(under 300 lbs 24 hrs).
| |||||||||
IMC 3
ICEMEDAL
Ice cube making machine is a large-scale production of edible cube ice making equipment. The produced cube ice is clean, hygienic and crystal clear. It is widely used in hotels, bars, restaurants, convenience stores, cold drinks shops, etc. place.

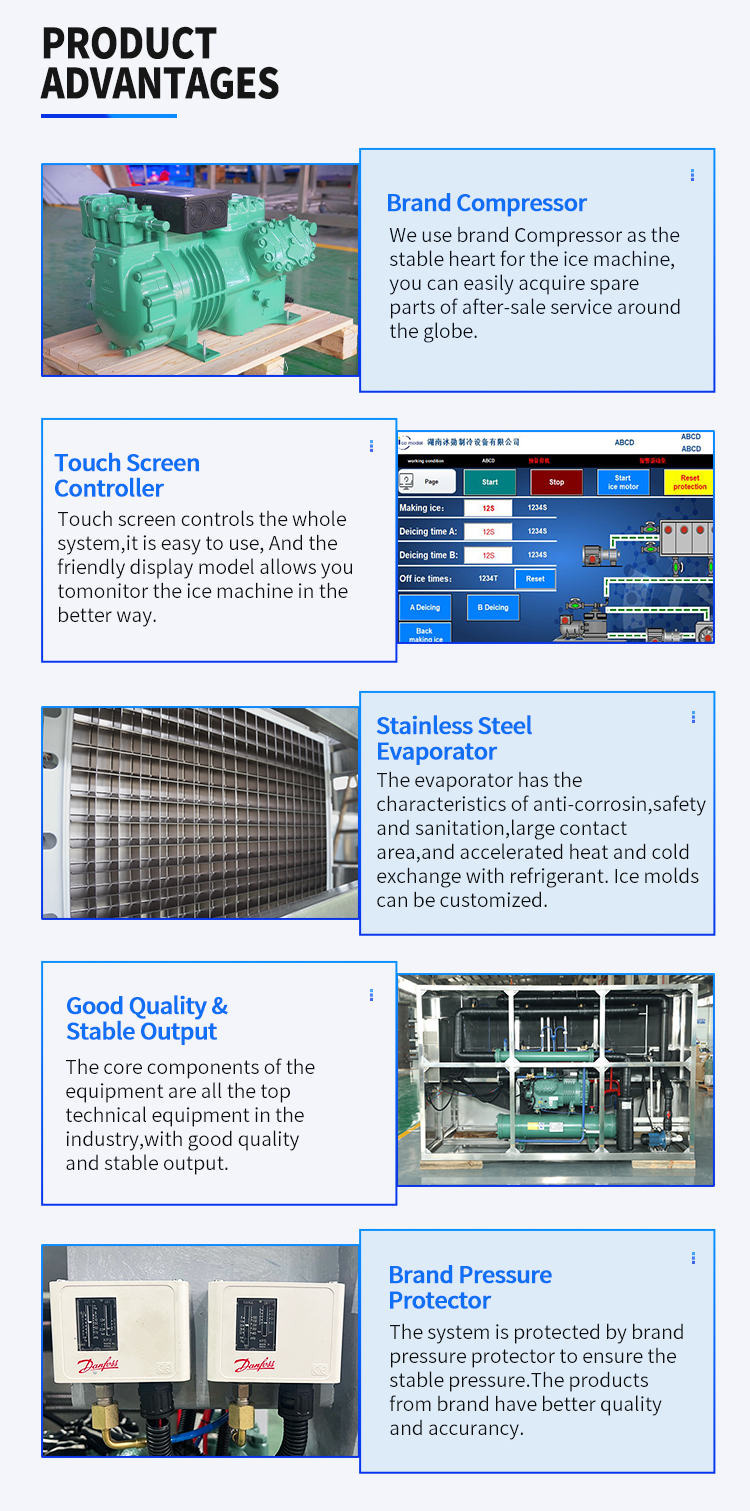

| Ice Cube Making Machine Features
1.Ambient temperature adaptive system ensures consistent ice thickness.
flat-wall heat transfer technology is unique in ice extraction design and has obtained a national patent. PATENT: ZL201420070472.X
3.The ice consumes 80kw per ton of electricity.
4.It uses Modular design, which is recommended for docking with the packaging system and has a small footprint.
| Parameters
| IMC3 Cube Ice Machine Parameters | ||
| Name | Unit | Parameter |
Bitzer Compressor Parameter | Model | 6HE-28 |
Cooling Capacity(kW) | 60.2 | |
| Power(kw) | 10.58 | |
Condenser | Model | WN-25 |
Heat Exchange(kW) | 95.2 | |
Condensing Temperature | Degree Celsius(℃) | 40 |
Evaporating Temperature | Degree Celsius(℃) | -10 |
Ambient Temperature | Degree Celsius(℃) | 32 |
Water Temperature | Degree Celsius(℃) | 20 |
Refrigerant | R507 | |
Voltage | V/P/HZ | 380/3/50 |
Circulating Pump | Power(kW) | 0.55 |
Cooling Tower | Model | LX-30 |
| Power(kw) | 0.56 | |
Cooling Pump | Model | GD65-19 |
| Power(kw) | 2.2 | |
Cooling Fan | Power(kw) | 1.5 |
Machine Dimension(Water Cooling) | L*W*H(mm) | 1980*1630*1860 |
| Weight | KG | 1200 |
| ♦ Size of cube ice：22*22*22mm / 29*29*22mm / 38*38*22mm ♦ Compressor Brand: Bitzer / Frascold; Refrigerant: R22/R404A; Cooling Method: Water Cooling / Air Cooling; ♦ Power Supply: Voltage 380V/3P/50Hz (For non-standard voltage, unit configuration needs to be calculated separately). ♦ Operating Conditions: T(water supply) : 20 ° C, T(ambient) : 32 ° C, T(condensing) : 40 ° C,T(evaporating)：-10℃. ♦ (Note: The actual ice production varies due to the influence of water supply temperature and ambient temperature.) ♦ (The final interpretation of the above metioned parameters is in Icemedal, there will be no further notice, if there is any technical change.) | ||
| Product Details
1.Nickel-plated copper ice mould
NICKEL-A material with better resistance to accelerated oxidation at high temperatures. The melting point of nickel is about 2 times that of copper, which can protect the plated conductor effectively at high temperature.
2.304 stainless steel ice hopper.
Possessing corrosion resistance, heat resistance, low temperature strength and mechanical properties. Stamping, bending and other hot processing, no heat treatment hardening phenomenon is suitable for food processing, storage and transportation.

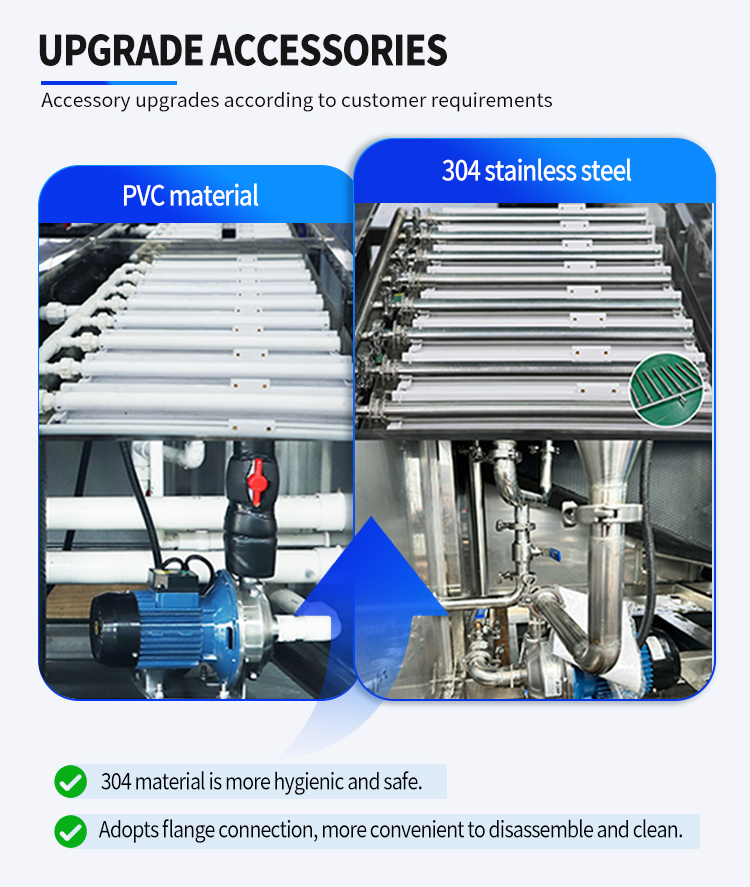

3.PVC Pipe
Additive. With non-inflammable, high strength, resistance to climate change and excellent geometric stability. PVC has strong resistance to oxidant, reductant and strong acid.
| Cube Ice Applications
Cube ice are widely used in hotel,Bar, Banquet Hall, Western restaurant, Fast Food Shop, convenience store, cold drinks shop, KTV, breakfast shop, Western fast food, beer room and other places need ice.
Bar
Cold Drinks
Restaurant
Hotel

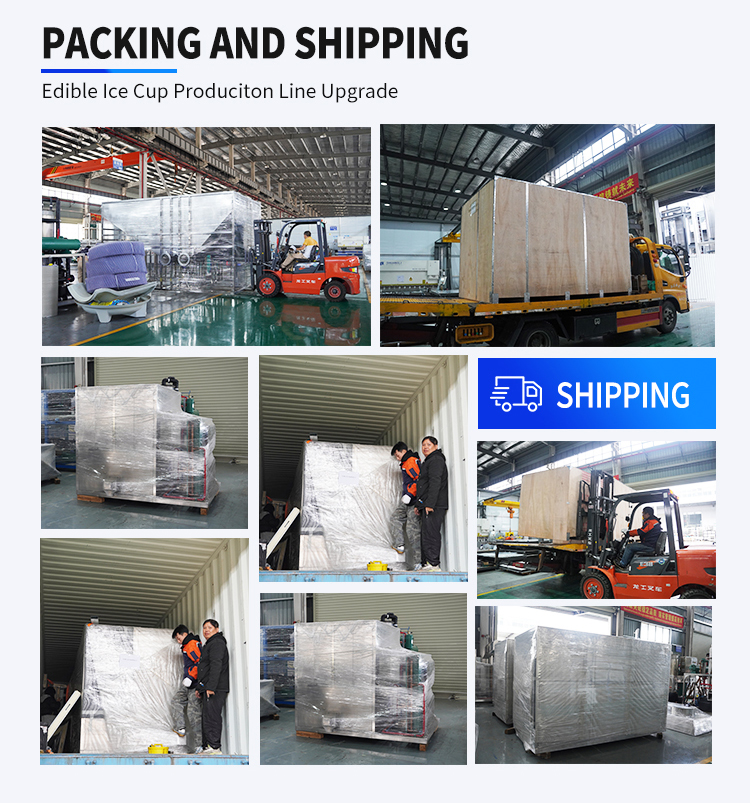

| Product Packaging & Shipping
Use bubble wrap to wrap the outside of the ice machine for multi-layer packaging,avoid scratches and wear.
