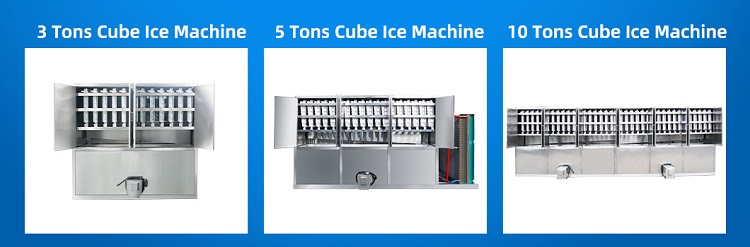

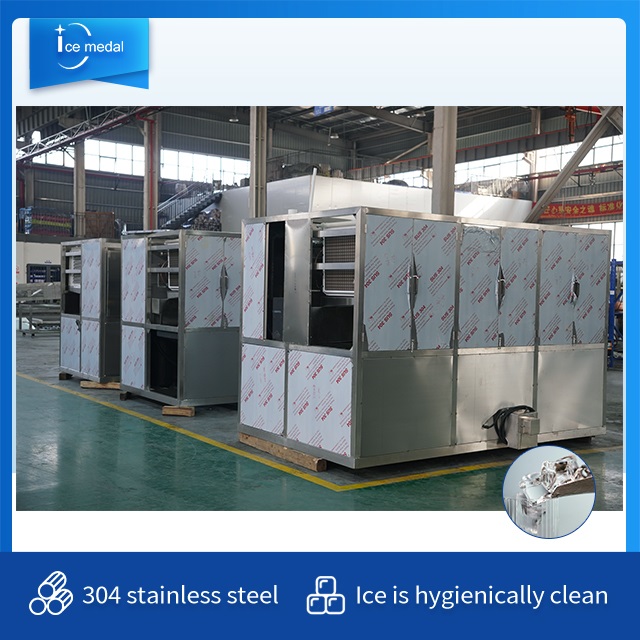

Icemedal cube ice machine, available from 1 tons to 20 tons, and available ice diameter from 22*22*22mm, 29*29*22mm, 38*38*22mm
| |||||||||

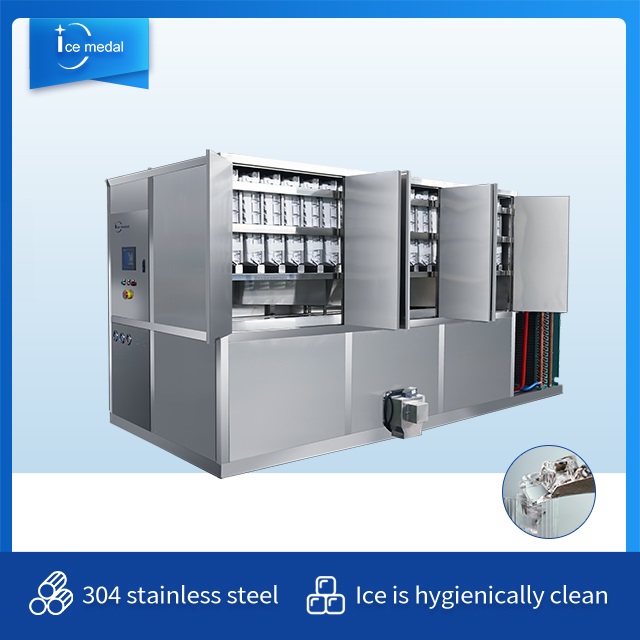

IMC 5
ICEMEDAL

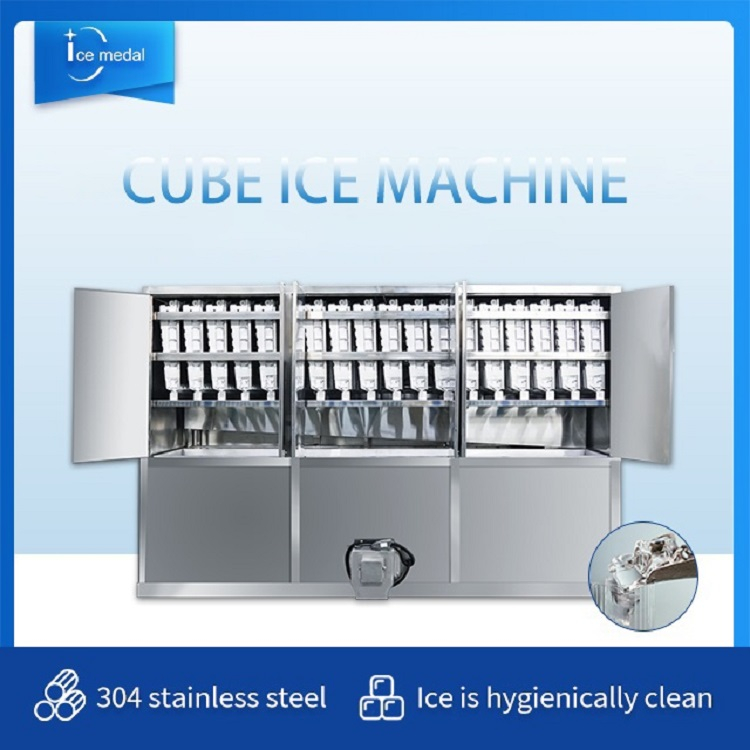

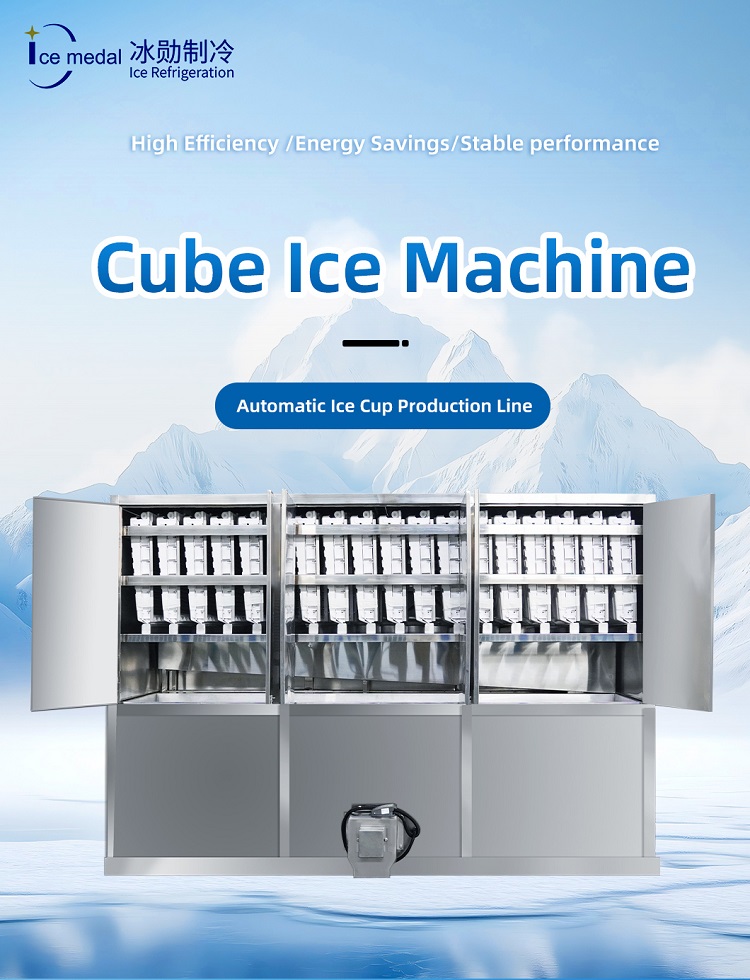

Icemedal offers a wide range of high-quality cube ice machine for various applications. our ice cube machines are designed to produce crystal-clear and long-lasting ice cubes, perfect for use in restaurants, bars, hotels, and other food service establishments. With different capacities available, ranging from 1 ton to 20 tons per day, Icemedal ice cube machines can meet the demands of both small-scale and large-scale ice production.
| Features of Cube Ice Machine
1.Safety and sanitation:The machine is made of 304 stainless steel. The water sink is specially designed to avoid incrustation. The machine also has an automatic cleaning function, to make sure the cube ice is sanitation, safety, and meeting international standards.
2.Low power consumption:Power consumption is 85-90 degrees/ton in summer, if the ambient temperature is below 23 degrees, and the power consumption is 70-85 degrees/ton.

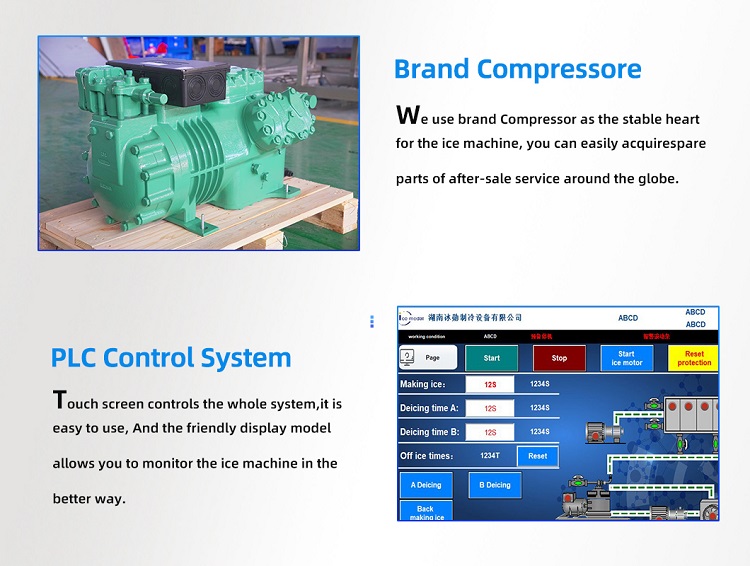

3.Automatic operation:Cube ice machine adopts PLC centralized control, so the machine has the following automatic functions, automatic adjustment of ice thickness, automatic ice formation, automatic ice harvest, and automatic water replenishment.
4.Large ice production:The output of a single machine is stable from 1 ton to 20 tons. Summer output can reach 90%-95%; when the ambient temperature is below 20 degrees, the output can reach 100%-130%.
5.Stable performance:ice cubes are crystal clear, have high hardness, uniform rules, beautiful appearance long storage time, clean and hygienic, and fully meet the national hygienic requirements for edible ice.
6.Brand accessories:Brand Compressor, and brand electrical accessories.
7.Edible ice cube size:22*22*22mm / 29*29*22mm / 38*38*22mm and many other models.
| Product Parameters
| IMC5 5ton Cube Ice Machine Parameter | ||
| Name | Unit | Parameter |
Bitzer Compressor Parameter | Model | 6HE-28 |
Cooling Capacity(kW) | 60.2 | |
| Power(kw) | 21 | |
Condenser | Model | WN-25 |
Heat Exchange(kW) | 95.2 | |
Condensing Temperature | Degree Celsius(℃) | 40 |
| Evaporating Temperature | Degree Celsius(℃) | -10 |
| Ambient Temperature | Degree Celsius(℃) | 32 |
| Water Temperature | Degree Celsius(℃) | 20 |
| Refrigerant | R404/R507 | |
| Voltage | V/P/HZ | 380/3/50 |
| Circulating Pump | Power(kW) | 0.55 |
Cooling Tower | Model | LX-30 |
| Power | 0.75 | |
Cooling Pump | Model | GD65-19 |
| Power | 2.2 | |
Cooling Fan | Power(kw) | 1.5 |
Machine Dimension(Water Cooling) | L*W*H(mm) | 2890*1780*1860 |
Weight | kg | 1600 |
| Cube ice Application
Cube ice are widely used in Hotel,Bar, Banquet Hall, Western restaurant, Fast Food Shop, convenience store, cold drinks shop, KTV, breakfast shop, Western fast food, beer room and other places need ice.
| Why You Choose Us
1. latest technology on the refrigeration system which reduce the electricity consumption.
2. special design on the ice defrosting.
3. The flat-wall heat transfer technology is unique in ice extraction design and has obtained a national patent.
4. special design for the ice cutter.
Mature pre-sales and after-sales service
1. It can make different size cube ice.
2. Localized after-sales service in some countries.
3. Provide Installation or After-sales Service Global Wide.
Easy Operation
Fully automatic, easy installation, easy operation, easy maintenance.
