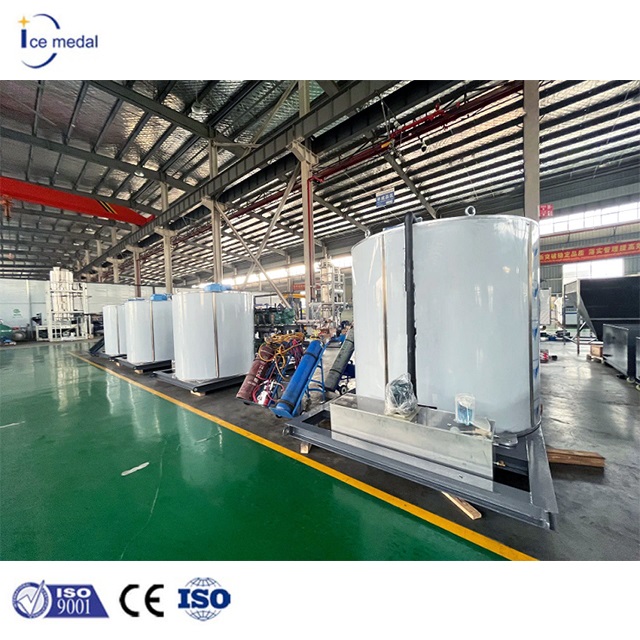

2 ton flake ice machine is a professional ice making equipment with daily output up to 2000kg, adopting high efficiency refrigeration technology, which can produce thin flake ice with uniform thickness. It is widely used in food preservation, medical cooling and industrial cooling.
| |||||||||
IMF2
Icemedal
Ice machine evaporator adopts three-dimensional design, that is, internal scraping type ice making, the evaporator does not move, ice knife in the inner wall rotating scraping ice. This design reduces wear and provides high tightness
.SUS 304 stainless steel spiral ice blade, small resistance, low loss, no noise, uniform ice.
Refrigeration unit accessories are imported to ensure barrier-free and efficient operation.
Brand Compressor.
Spiral Skate Blade design, do not damage skate blade.
Continuous spray welding to ensure that the evaporator is not easily deformed. Reducing the Mechanical Resistance of ice machine during operation.
Smooth flow path, small resistance, improve refrigeration effect, reduce energy consumption.
Even ice thickness, covering an area of large, dry non-adhesion.

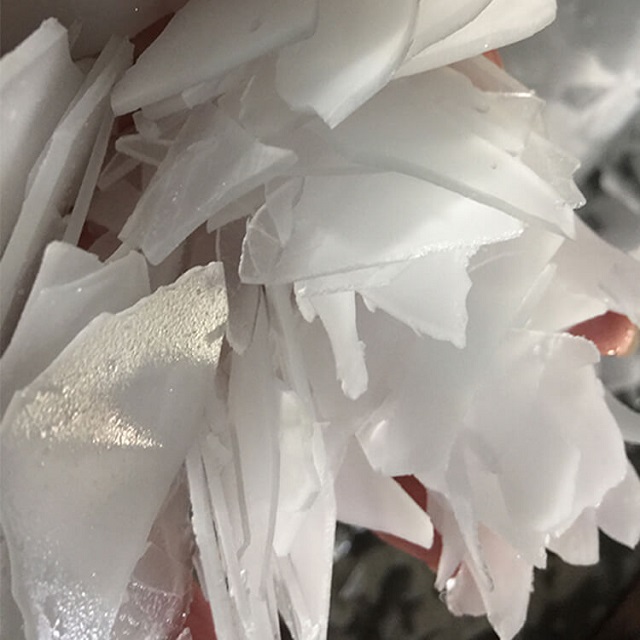

Thin, dry, loose white ice. The plane shape is irregular, the thickness is 15 mm-22 mm, the diameter is about 12-45 mm.
| IMF2 2ton Flake Ice Machine Parameters | ||
| Name | Unit | Parameter |
Compressor Parameter | Model | 4NES-14 |
| Cooling Capacity(kW) | 19.83 | |
| Power(kW) | 8.45 | |
Condenser | Model | WN-15 |
| Heat Exchange(kW) | 49.2 | |
| Condensing Temperature | Degree Celsius(℃) | 40 |
Evaporating Temperature | Degree Celsius(℃) | -20 |
| Ambient Temperature | Degree Celsius(℃) | 32 |
| Water Temperature | Degree Celsius(℃) | 20 |
| Refrigerant | R22 | |
| Voltage | V/P/HZ | 380/3/50 |
Evaporator | Reducer Power(kw) | 0.37 |
| Circulating Pump Power(kw) | 0.12 | |
| Pump Power(kw) | 9 | |
Cooling Tower | Model | LX-15 |
| Power(kW) | 0.37 | |
Cooling Pump | Model | GD40-20 |
| Power | 1.5 | |
| Machine Dimension(Water Cooling) | L*W*H(mm) | 1500*1250*1260 |
Flakes ice are widely used in Food and aquatic products processing, concrete cooling, pharmaceutical industry, poultry processing, fisheries, poultry meat processing,slaughterhouses,vegetable distribution and fresh keeping, chemical dyes and other places need ice.
Hunan lcemedal Refrigeration Equipment Co., Ltd, apioneer in the large-scale freon system & ammoniarefrigeration ice making equipment industry, a largeice plant and cold storage engineering solution serviceprovider, is an innovative and entrepreneurialhigh-tech enterprise that integrates research, design,manufacture, sales, and after-sales service of alarge-scale edible ice factory equipment, large-scaleindustrial ice making equipment, complete ice makingsystem and small and large cold storage project.
Ice machine evaporator adopts three-dimensional design, that is, internal scraping type ice making, the evaporator does not move, ice knife in the inner wall rotating scraping ice. This design reduces wear and provides high tightness
.SUS 304 stainless steel spiral ice blade, small resistance, low loss, no noise, uniform ice.
Refrigeration unit accessories are imported to ensure barrier-free and efficient operation.
Brand Compressor.
Spiral Skate Blade design, do not damage skate blade.
Continuous spray welding to ensure that the evaporator is not easily deformed. Reducing the Mechanical Resistance of ice machine during operation.
Smooth flow path, small resistance, improve refrigeration effect, reduce energy consumption.
Even ice thickness, covering an area of large, dry non-adhesion.
Thin, dry, loose white ice. The plane shape is irregular, the thickness is 15 mm-22 mm, the diameter is about 12-45 mm.
| IMF2 2ton Flake Ice Machine Parameters | ||
| Name | Unit | Parameter |
Compressor Parameter | Model | 4NES-14 |
| Cooling Capacity(kW) | 19.83 | |
| Power(kW) | 8.45 | |
Condenser | Model | WN-15 |
| Heat Exchange(kW) | 49.2 | |
| Condensing Temperature | Degree Celsius(℃) | 40 |
Evaporating Temperature | Degree Celsius(℃) | -20 |
| Ambient Temperature | Degree Celsius(℃) | 32 |
| Water Temperature | Degree Celsius(℃) | 20 |
| Refrigerant | R22 | |
| Voltage | V/P/HZ | 380/3/50 |
Evaporator | Reducer Power(kw) | 0.37 |
| Circulating Pump Power(kw) | 0.12 | |
| Pump Power(kw) | 9 | |
Cooling Tower | Model | LX-15 |
| Power(kW) | 0.37 | |
Cooling Pump | Model | GD40-20 |
| Power | 1.5 | |
| Machine Dimension(Water Cooling) | L*W*H(mm) | 1500*1250*1260 |
Flakes ice are widely used in Food and aquatic products processing, concrete cooling, pharmaceutical industry, poultry processing, fisheries, poultry meat processing,slaughterhouses,vegetable distribution and fresh keeping, chemical dyes and other places need ice.
Hunan lcemedal Refrigeration Equipment Co., Ltd, apioneer in the large-scale freon system & ammoniarefrigeration ice making equipment industry, a largeice plant and cold storage engineering solution serviceprovider, is an innovative and entrepreneurialhigh-tech enterprise that integrates research, design,manufacture, sales, and after-sales service of alarge-scale edible ice factory equipment, large-scaleindustrial ice making equipment, complete ice makingsystem and small and large cold storage project.
