| 30 Tons Flake ice machine has a big capacity with a large contact surface and can be rapidly cooled food. it can be widely used in supermarket food preservation, fishery protection, food processing, concrete cooling, etc. Certification：CE MOQ：1 set Warranty: 12 months Payment: T/T, Western Union, Money Gram, L/C Lead time: 40 days after getting deposit After-sales Service Provided: Engineers available to service overseas | |||||||||
IMF30

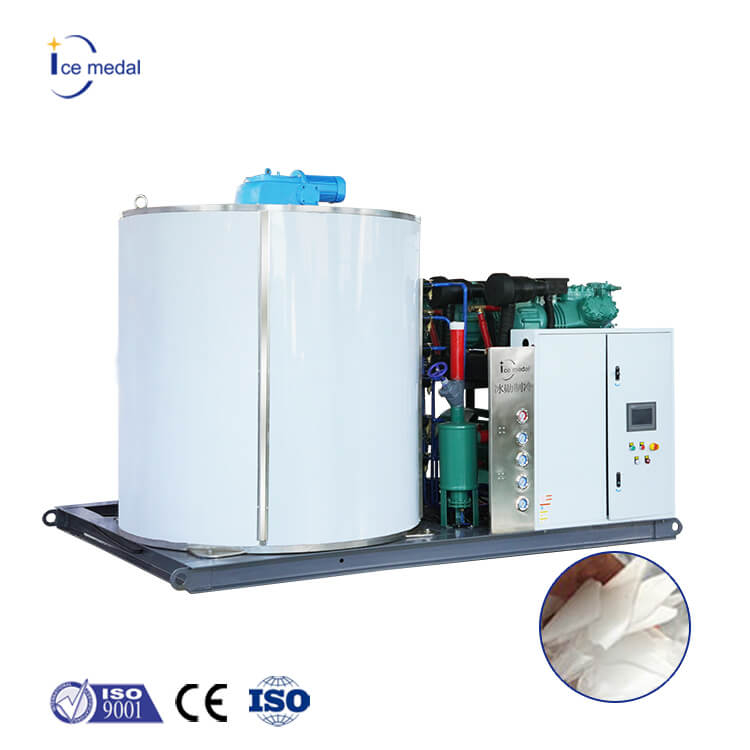

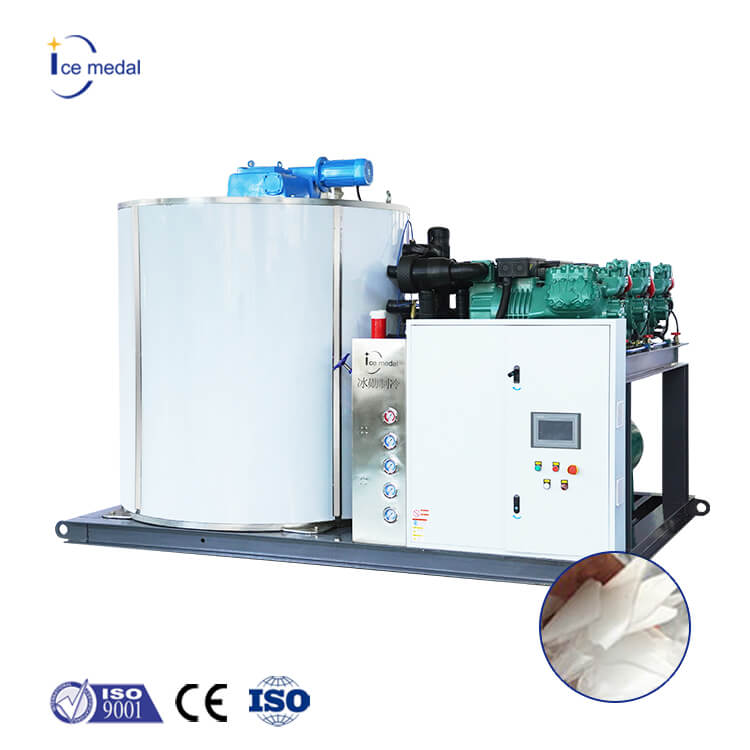

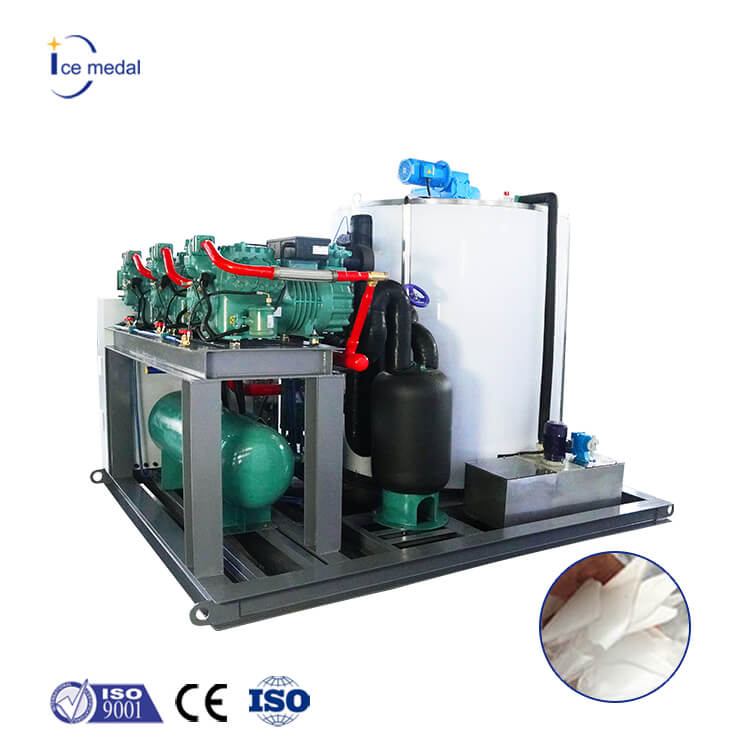

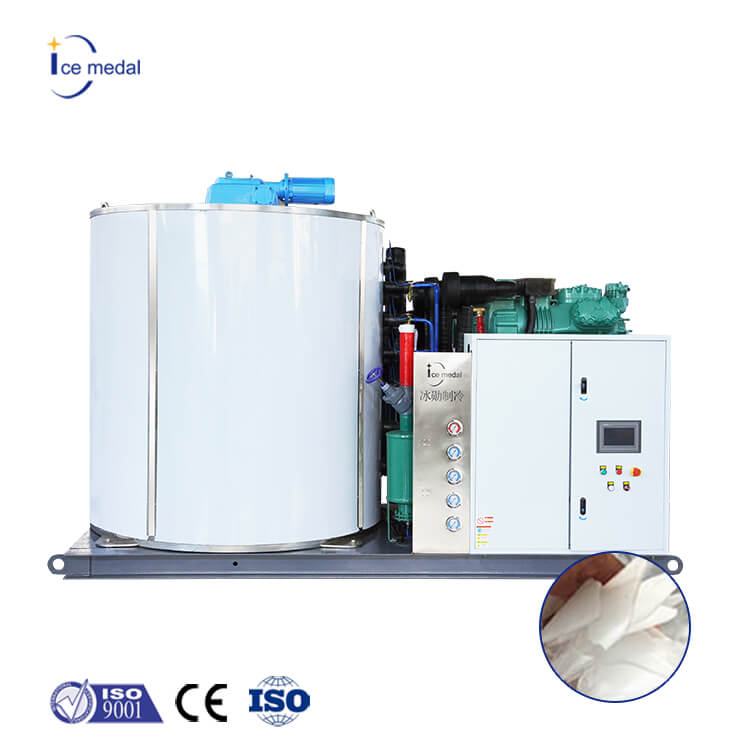

IMF30 industrial flake ice machine can produce dry, loose white flake ice with a thickness of 1.5-2.2m and a diameter of 12-45mm. The flake ice machine has excellent refrigeration effect, has the characteristics of large refrigeration capacity and rapid ice making, and is widely used in catering and supermarkets, fishery preservation, food processing, concrete cooling and other fields.
Features of Icemedal Ice Flake Machine
● Daily Production:30 ton 24 hrs
1. International brand compressors. Original authentic, The compressor has high working efficiency and is durable and not easily damaged.
2. Vertical evaporator, ice scraper with imported material. The inner wall of the evaporator and the ice scraper are extremely wear-resistant, avoiding problems such as poor ice scraping.
3. Fully automated ice production. Turn on the power and water source and turn on the equipment to continuously produce ice.
4. The operation is simple and convenient. Touch screen operation, operation keys are clearly marked, easy to learn, and very simple to use.
5. Small footprint. The 3D three-dimensional design fully optimizes the pipeline and component layout and reduces the land occupation.
Machine Details
Parameters
| 30 Ton Flake Ice Machine Parameters | ||
| Name | Unit | Parameter |
Compressor Parameter | Model | 6FE-50*30 |
| Cooling Capacity（kW） | 201 | |
| Power(kW) | 93.7kw | |
Condenser | Model | WN-145 |
Heat Exchange(kW) | 324.6 | |
| Condensing Temperature | Degree Celsius(℃) | 40 |
| Evaporating Temperature | Degree Celsius(℃) | -20 |
| Ambient Temperature | Degree Celsius(℃) | 32 |
| Water Temperature | Degree Celsius(℃) | 20 |
| Refrigerant | R507 | |
| Voltage | V/P/HZ | 380/5/30 |
Evaporator | Reducer Power(kw) | 2.2 |
Brine Pump Power(kw) | 7.5 | |
Cooling Tower | Model | LX-90 |
Power(kW) | 2.2 | |
Cooling Pump | Model | GD100-19A |
| Power | 5.5 | |
| Unit size (L*W*H) | (mm) | Unit size (L*W*H mm) |
| Weight | kg | 5000kg |
Quality Control
