| Quantity: | |||||||||
|---|---|---|---|---|---|---|---|---|---|

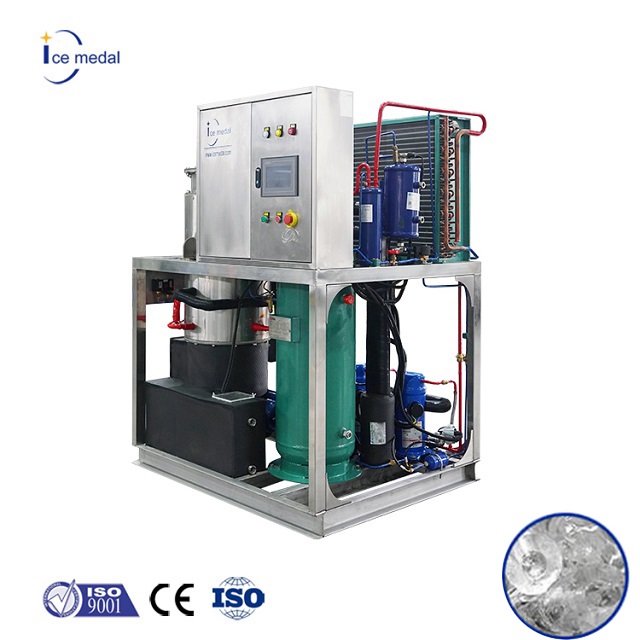

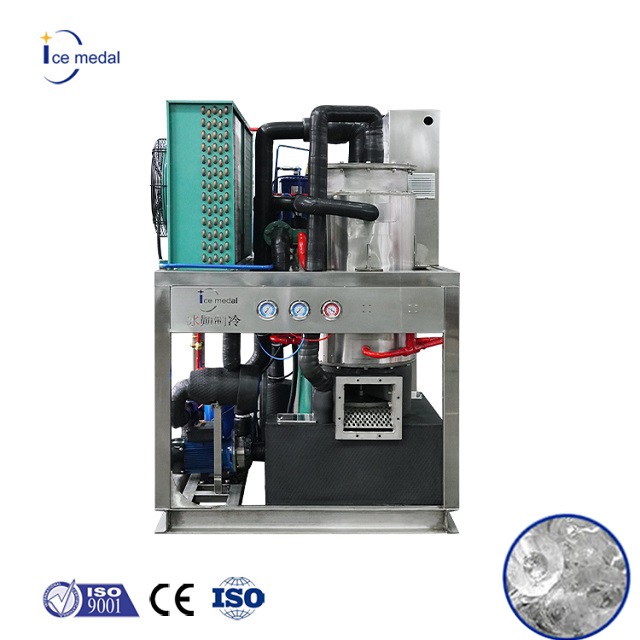

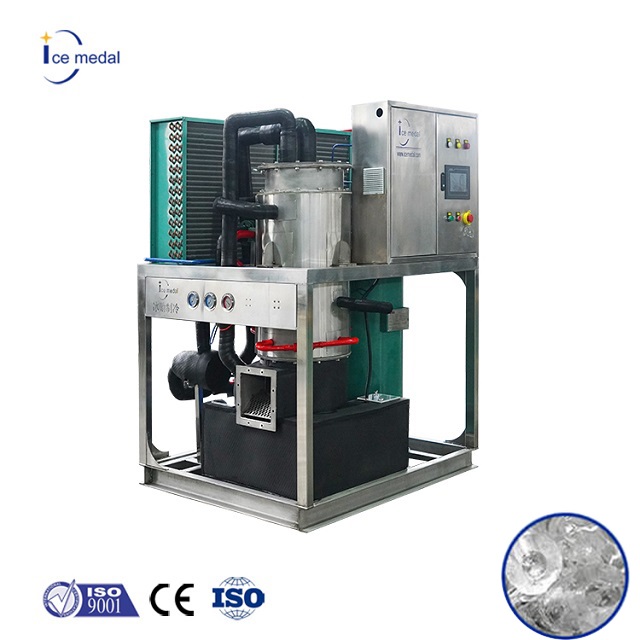

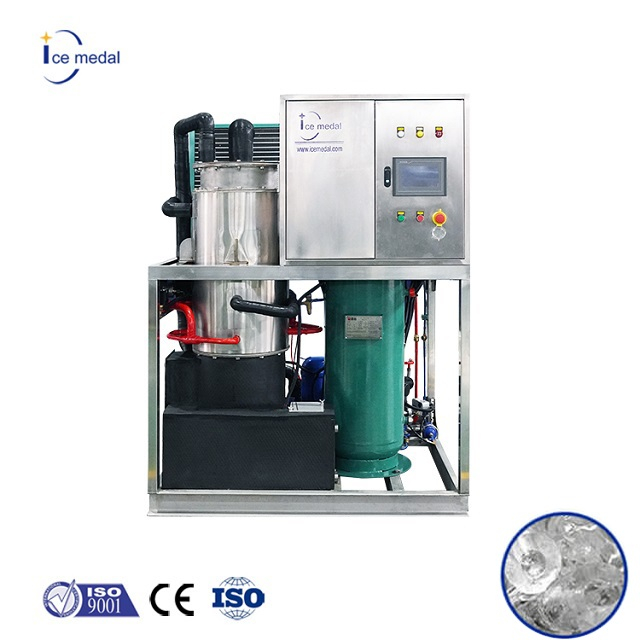

| 1 ton per 24h Tube Ice Machine. The low power consumption and convenience make 1 ton tube ice machine the very welcomed product in many countries. Certification：CE MOQ：1 set Warranty:12 months Payment：T/T, Western Union, Money Gram, L/C Lead time：40 days after getting deposit After-sales Service Provided：Engineers available to service overseas | |||||||||
IMT1
1 ton per 24h Ice Tube Machine. The low power consumption and convenience make 1 ton tube ice machine the very welcomed product in many countries.
| Features
● Production capacity from 1 tons/ 24hr.
●The outer diameter of the tube ice is divided into φ22mm, φ28mm, φ35mm and other specifications. The length ranges from 30 to 60mm
●Low energy consumption mean low ice production cost.
●PLC intelligent controlled, full automatic production, need no human operation.
●Machine has passed CE certification.
| Product Parameter
| IMT 1 ton Ice Tube Machine Parameters | ||||
| Name | Unit | Parameter | ||
| Tube Diameter | mm | Φ22 | Φ28 | Φ35 |
| Compressor Parameter | Refrigerating capacity(kw) | 11.04 | ||
Power(kw) | 4.1 | |||
| Condenser | Model | WN-5 | ||
Heat exchange capacity(kw) | 19.4 | |||
| Condensing Temperature | Temperature(℃) | 40 | ||
| Evaporating Temperatue | Temperature(℃) | -12 | ||
| Ambient Temperature | Temperature(℃) | 32 | ||
| Water Supply Temperature | Temperature(℃) | 20 | ||
| Refrigerant | R22 | |||
| Power Supply | V/P/HZ | 380/3/50 | ||
| Motor Power | Ice Cutting Motor(kW) | 0.75 | ||
| Recircling Pump(kW) | 0.37 | |||
| Cooling Tower | Model | LX-8 | ||
| Power(kw) | 0.25 | |||
| Cooling Pump | Model | GD40-15 | ||
Power(kw) | 1.1 | |||
| Cooling Fan Power | Power(kw) | 0.18 | ||
| Water Cooling Machine Dimension | L*W*H(mm) | 1100*900*1780 | ||
| Refrigerant Quantity | kg | 50 | 53 | 58 |
| Machine Weight | kg | 900 | ||
| Tube Ice Application
Tube ice are widely used in the fields of food preservation and beverage ice,frozen food preservation, medical applications, KTV, banquet hall, drinks modulation, hotels, hotels, bars, westernrestaurants, fast food shops, cold drinks shop, beer room and other places need ice.
 |  |
| Cold drink | Food processing |
 |  |
| Restaruant | Bar |
| About Us
Hunan Icemedal Refrigeration Equipment Co., Ltd. is a research and development, production, sales and service in one of the professional refrigeration equipment manufacturing enterprises. The products mainly include cold room, storage cold room,Ice Flake machine, ice cube machine, ice tube machine, ice block machine.
Adhering to the “Integrity, win-win, enjoy life” concept, has been committed to building modular boutique factory for customers,to provide customers with solutions for profit replication, so as to achieve our "Win-win" business value.
