| The Icemedal IMAT60 Tube Ice Machine is a high-capacity solution designed for industrial ice production, offering an impressive output of 60 tons per day. Engineered with cutting-edge technology and utilizing ammonia refrigerant, it ensures efficient and reliable performance for demanding applications. MOQ:1 Payment:T/T, Western Union, MoneyGram, L/C Lead Time:45 Days After Getting Down Payment Certification:CE Place of Origin:Changsha, China (Mainland) Shipping Port:Guangzhou, China (Mainland) Warranty:1 Year After-sales Service Provided:Engineers available to service overseas | |||||||||
IMAT60

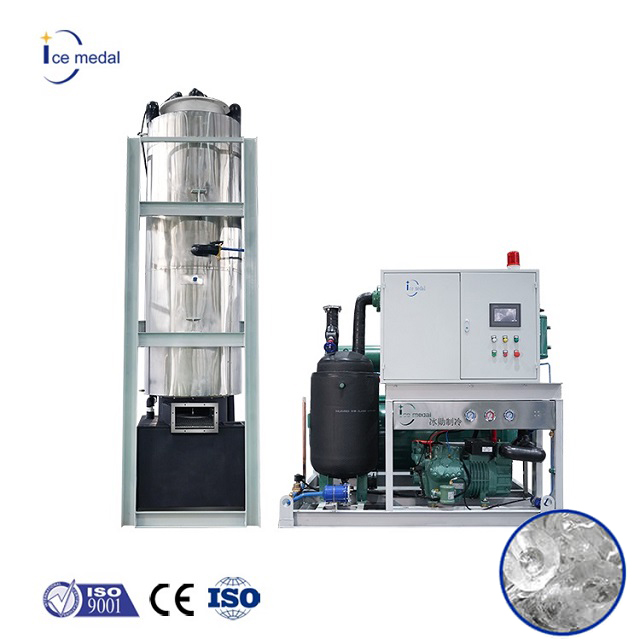

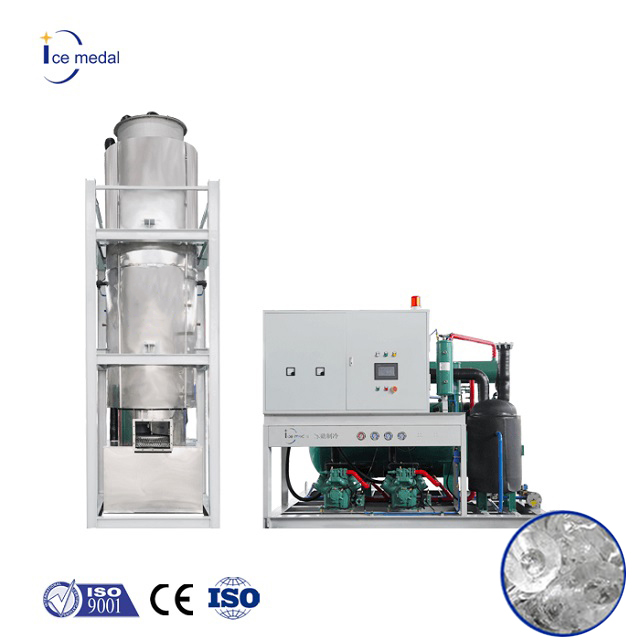

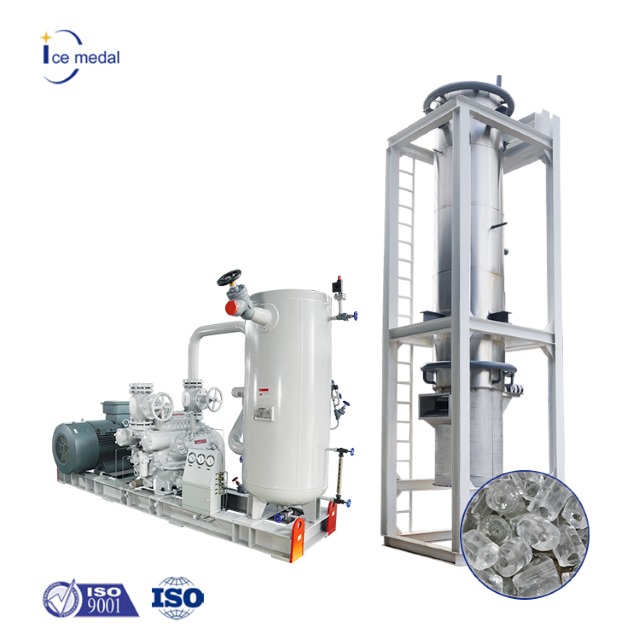

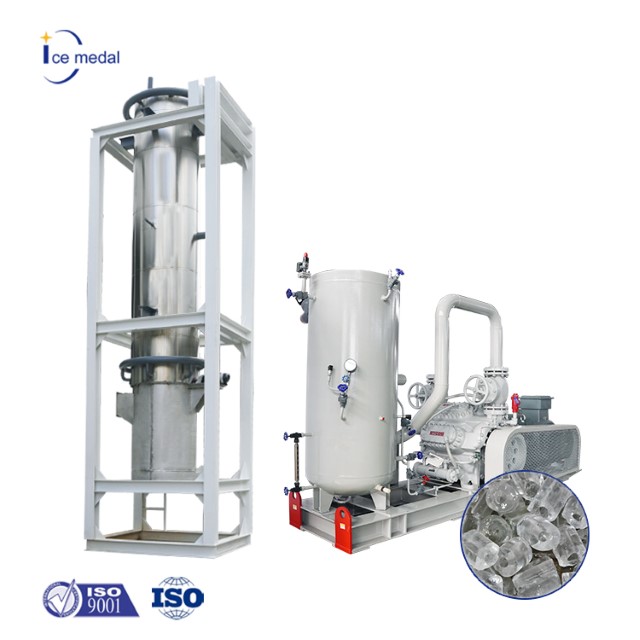

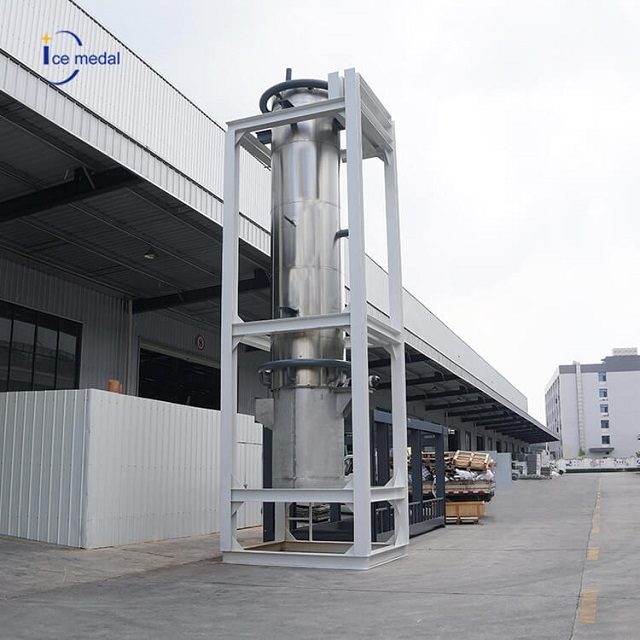

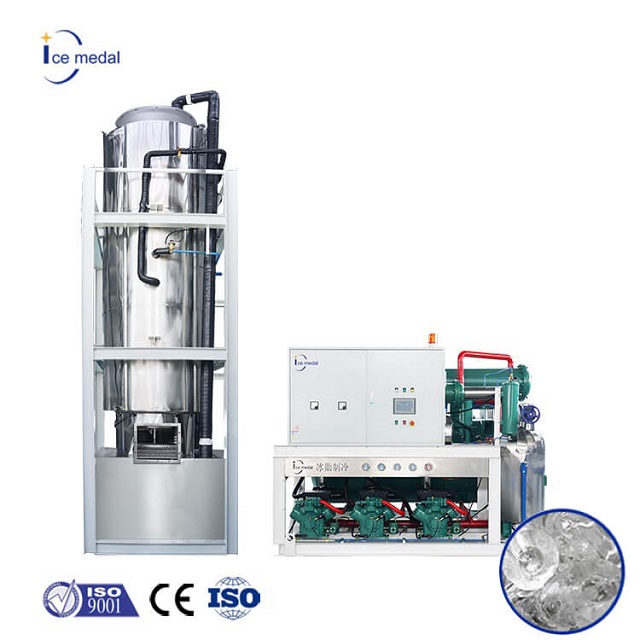

The 60-ton ammonia system tube ice machine has a high capacity. At present, we provide customers with 60 tons of 24 hours and 80 tons of 24 hours. The Icemedal IMAT Series Tube Ice Machine is an ammonia refrigerant system designed to apply the ultra-large tube ice production capacity. The IMAT Series provide the better warranty for automation, energy efficiency and business, making the Icemedal tube ice machine the better choice for your ice making business.
| Features of Ammonia Tube Ice Machine
● Daily Production 60 ton 24 hrs

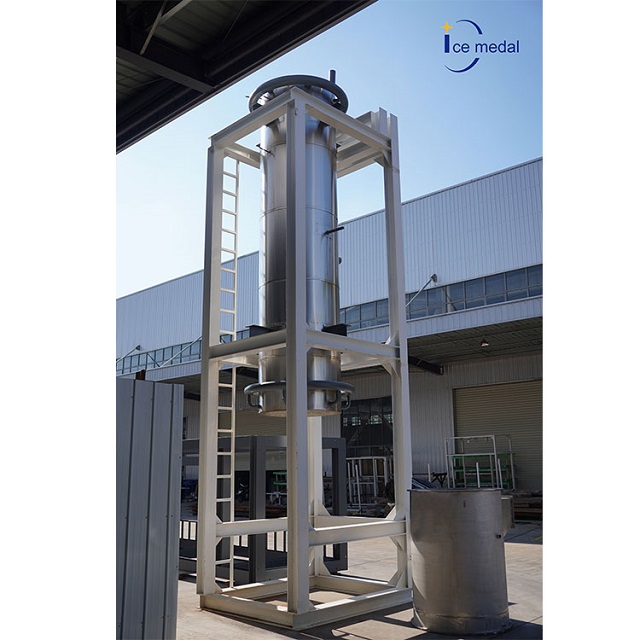

● Evaporator is made of stainless steel, and PU foam insulation is used for better efficiency.
● Automatic laser welding to make the welding work nice and no leak, ensuring a low fault rate.
● All equipments are made of 3D simulation assembly, a compact structure, which makes it humanized to operate and maintain.
● A special alloyed machine combined with a unique heat treatment process makes the evaporator have the best thermal performance.
● Ammonia flooded operation.

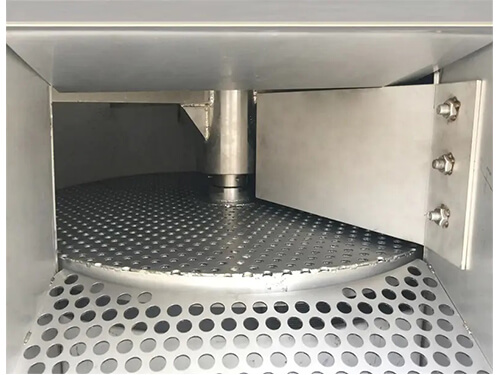

● Well designed Stainless Steel cutter for good shape ice and easy to maintain.

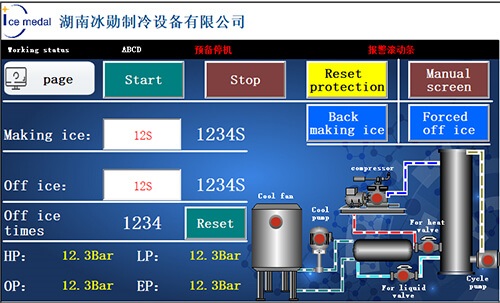

● The PLC system controls the ice-making process automatically.
| Product Prameters
| Tube Ice Machine (Ammonia)Parameters | ||||||||||
Model | Capacity | Compressor | Total Power | Evaporator size | Host Size | Installation Space Requirements | Power Consumption | Ice Size/mm | Shipping Weight | |
| Ton/Day | Brand | KW | L×W×H(mm) | L×W×H(mm) | A×B×H(m) | kW·h/ton | Diameter | Length | Ton | |
IMAT60 | 60 | MYCOM | 160 | 2930×2250×8500 | 3445×1455×1535 | 13×7×9 | 55-60 | Φ22 | 30-45 | 25 |
2980×2290×8500 | 3445×1455×1535 | 13×7×9 | Φ28 | 25 | ||||||
2980×2370×8500 | 3445×1455×1535 | 13×7×9 | Φ35 | 25 | ||||||
IMAT80 | 80 | MYCOM | 220 | 3110×2420×8800 | 3445×1455×1645 | 13×7.5×9.5 | Φ22 | 30 | ||
3130×2440×8800 | 3445×1455×1645 | 13×7.5×9.5 | Φ28 | 30 | ||||||
3210×2520×8800 | 3445×1455×1645 | 13×7.5×9.5 | Φ35 | 30 | ||||||

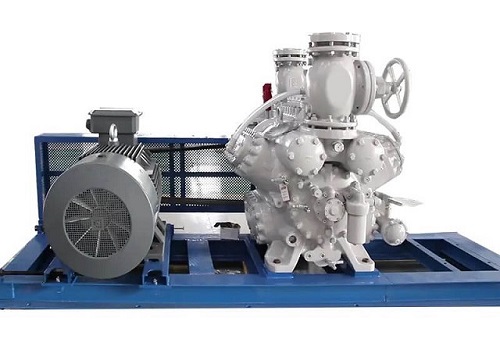

♦Compressor Brand: MYCOM; Refrigerant: R717; Cooling Method: Evaporative condensation heat exchange; ♦ Power Supply: 380V/3P/50Hz;(For non-standard voltage, unit configuration needs to be calculated separately). ♦ Test Conditions: T(water supply) : 20 ° C, T(ambient) : 32 ° C; Design Conditions T(condensing) : 40 ° C,T(evaporating)：-12℃. ♦ (Note: The actual ice production varies due to the influence of water supply temperature and ambient temperature.) ♦ (The final interpretation of the above metioned parameters is in Icemedal, there will be no further notice, if there is any technical change.) | ||||||||||
| Tube Ice Application

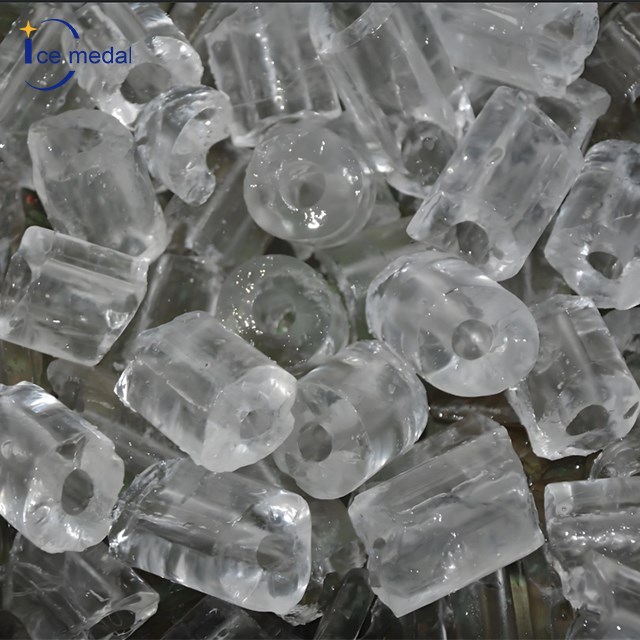

Tube ice are widely used In bars, hotels, cold drinks shops, KTV and other places. The addition of tube ice to cold drinks is very popular, especially in tropical areas of Southeast Asia. It is one of the ways for people to cool off.
Cold Drinks
Food Processing
Restaruant
Bar
| Product Details
