Icemedal Specializes in The Production of 1-100 Tons Tube Ice Machines

Icemedal specializes in the production of 1-100 ton food grade tube ice machines. The thickness and length of the ice tubes are adjustable, and they are clean, hygienic and edible.

Tube ice machine is a type of ice making machine. It is named because the ice tubes it produces are hollow tubes of irregular length. The inner hole of the ice tubes is 5mm to 15mm, and the length is between 25mm and 42mm. There are many sizes to choose from. The outer diameter of the ice tubes is 22,28,35mm, etc. The ice tubes produced are called tube ice. The contact area is the smallest among the existing ice types on the market, and the anti-melting performance is the best. It is suitable for beverage preparation, decoration, food refrigeration and preservation, etc.,so most of them are edible ice.

The Features of Tube Ice Machine

1.Pre-Purify patented water purification technology, the tube ice produced can be eaten directly.

2.The evaporator is made of high-quality stainless steel 304 and other materials, meeting international hygiene standards.

3.The machine adopts integrated design, compact structure, easy installation and use.

4.PLC computer module, the ice making process is fully automated.

Ice Making Principle of Ice Tube Machine

The ice-making part of the ice tube machine is the evaporator, which is composed of many vertical parallel steel tubes. The deflector on the top of the evaporator sprinkles water evenly into each steel tube in a spiral manner. The excess water is collected by the water tank at the bottom and pumped back to the evaporator by the water pump. Refrigerant flows in the outer space of the steel tube and exchanges heat with the water in the tube. The water in the tube gradually cools down and turns into ice. When the thickness of the tube ice reaches the desired value, the water automatically stops flowing. The hot gas of the refrigerant will enter the evaporator to melt the tube ice and fall off. When the tube ice falls, the ice cutting mechanism operates to cut the tube ice into the set size.

Tube Ice Maker Classification Structure

Classification

Tube ice maker can be divided into two categories according to daily output (according to international practice working conditions: dry bulb temperature 33℃, water inlet temperature 20℃). Small tube ice maker have a daily iceoutput ranging from 1 ton to 8 tons, and most of them are single-body structures. Large tube ice maker have a daily ice output ranging from 10 tons to a maximum of 100 tons, and most of them are composite structures and need to be equipped with cooling towers.

Structure

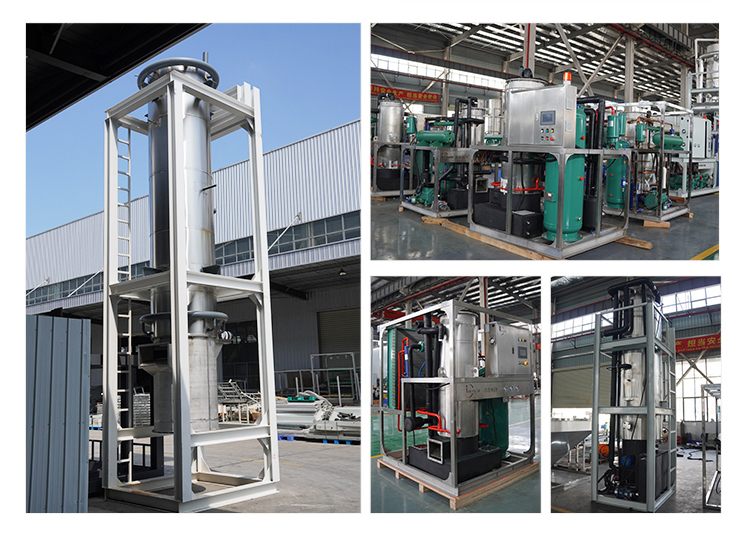

The structure of the tube ice machine mainly includes the evaporator, condenser, water tank, compressor, and liquid storage tank. The evaporator is the most complex, requires the highest precision, and is the most difficult to manufacture. Therefore, only a few large industrial ice machine companies in the world are capable of developing and producing it.

In addition to tube ice machines (solid tube ice machines, freon system tube ice machines, ammonia tube ice machines),Icemedal also has ice block machines, flake ice machines, transparent ice machines, cube ice machines, ice ball machines, automatic cube ice and tube ice production lines,ice cup machine, cold storage, ice crushers, etc.

The products are widely used in many fields such as deep-sea fishing, aquatic product processing, vegetable and fruit processing and preservation, meat processing, medical chemicals, and construction etc.
