Commercial industrial Automatic Ice Packing Machine For Tube Ice

Availability:
Quantity:
Product name:Automatic Ice Packing Machine
Voltage:220 V, 50/60 Hz, 1 ph
Weight:750kg
Power:3KW
Packing speed:20 bags/min
Video outgoing-inspection:Provided
Bag making length:100-500 mm
Maximum outer diameter:max.360 mm
Minimum order quantity:1 Set
Payment method:L/C, D/A, D/P, T/T, Western Union, MoneyGram
Availability:100 Sets per Month
Shipping period:≤1 Set 35 Days
Regular packing:The packaging of our shipment is made of pearl cotton.
  • IMP-720-A

  • ICEMEDAL

Parameters


item

value

Applicable Industries

Hotels, Food Shop, Other

Condition

New

Place of Origin

China


Hunan

Brand Name

icemedal

Ice Shape

Cube

Voltage

AC220v,50hz,1ph

Power

3KW

Dimension(L*W*H)

(L)1800*(W)1310*(H)2050mm

Weight

750KG

Warranty

1 Year

Key Selling Points

High-accuracy

Ice storage capacity

500KG

Machinery Test Report

Provided

Video outgoing-inspection

Provided

Marketing Type

New Product 2022

Warranty of core components

1.5 years

Core Components

Motor, PLC

Compressor brand

Other

Application

Industrial

Product Model

IMP-720-A

Air consumption

0.65Mpa, 2.5m³/ min

Bag making length

100-500mm

Bag making width

180-350mm

Maximum outer diameter

max.360mm

Packing speed

20bags/min

Packaging film thickness

0.04-0.08mm

Power supply power

220V, 50/60hz, 1ph

Overall dimension

(L) 1800* (W) 1310* (H) 2050mm

weight

750Kg


Product Description





Performance Characteristics

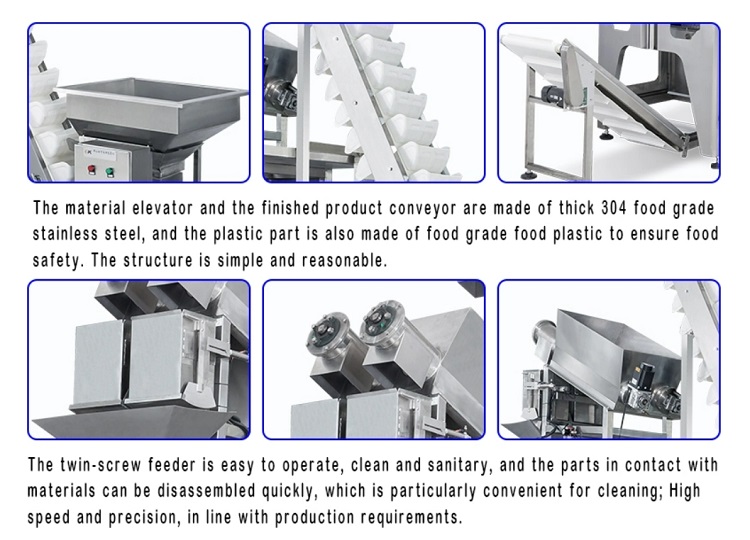

1. The whole machine is made of stainless steel, with good rust prevention ability, and the whole machine is stable and stable

2. Imported brand cylinders are used to ensure good sealing performance and clear sealing lines of the bags, prevent air leakage of the packaging bags and reduce the scrap rate.

3. The screw two head scale is used for weighing to pack the ice, so that the ice can be pushed out through the screw, High weighing accuracy and fast speed.

4. PLC control, imported driver, imported touch screen brand, man-machine interface, high degree of automation, simple operation procedures, and high touch screen sensitivity.

5. The external film placing mechanism is adopted to make it easier and faster to replace the packaging film.


Packing & Delivery


The packaging of our shipment is made of pearl cotton. First, wrap the packaging machine around for protection, and then use fumigation board for peripheral packaging to prevent damage during transportation.


Our Company


Hunan Icemedal Refrigeration Equipment Co., Ltd. is a research and development, production, sales and service in one of the professional refrigeration equipment manufacturing enterprises. The products mainly include fresh cold room, storage cold room, food processing and sorting workshop, quick freezer storage room, Ice Flake machine, ice cube machine, ice tube machine, ice block machine.

All parts of our equipment from material selection to processing to finished products must go through strict testing and quality control to ensure the quality of equipment. Products are widely used in food processing, aquatic products processing, large supermarket chains, hotels, logistics, Mine Cooling, chemical, ice storage and other fields. Products sell well in all cities of China. Our products are also exported to Africa, the Middle East, Southeast Asia, Australia, South America and other countries and regions. It also brings us a wealth of experience and valuable data to improve our products, so that our products in different environmental conditions can be sustained and stable operation.
