| Quantity: | |||||||||
|---|---|---|---|---|---|---|---|---|---|

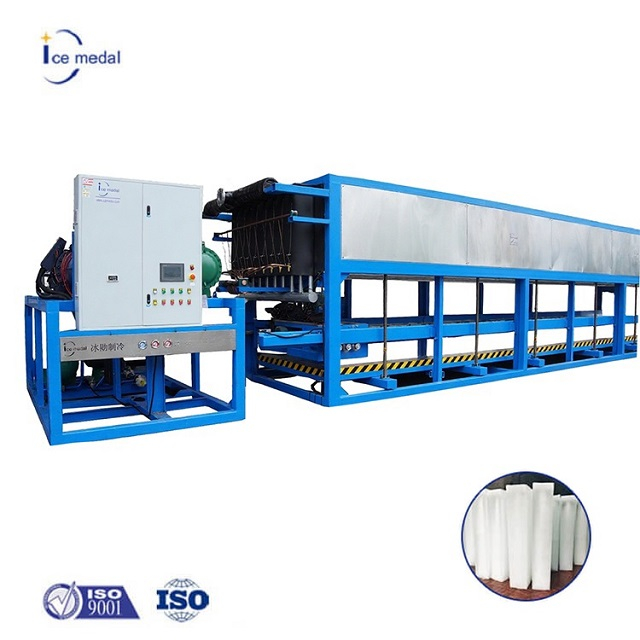

| The 30-ton direct cooling block ice machine is an efficient, energy-saving and environmentally friendly ice-making equipment. It adopts advanced direct cooling technology, through direct heat exchange between refrigerant and water, to achieve rapid ice making and efficient ice removal, ensuring that the ice is clean and hygienic and can be eaten directly. MOQ：1 set Warranty: 12 months Payment: T/T, Western Union, Money Gram, L/C Lead time: 40 days after getting deposit After-sales Service Provided: Engineers available to service overseas | |||||||||
IMBZL30
Icemedal

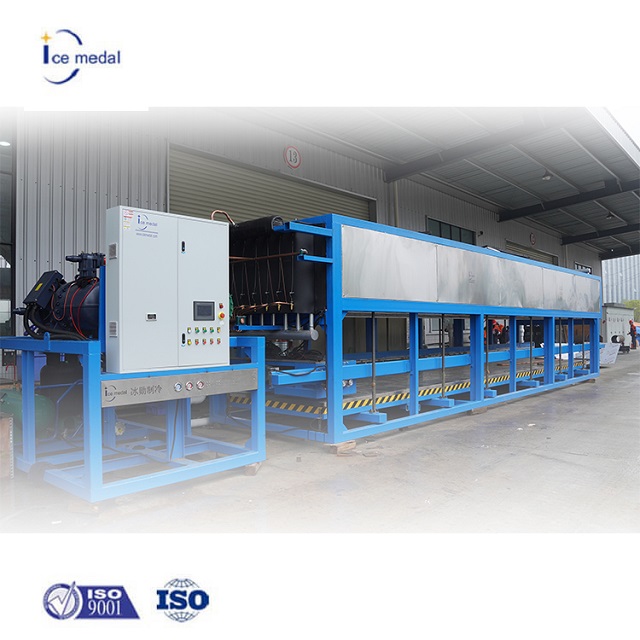

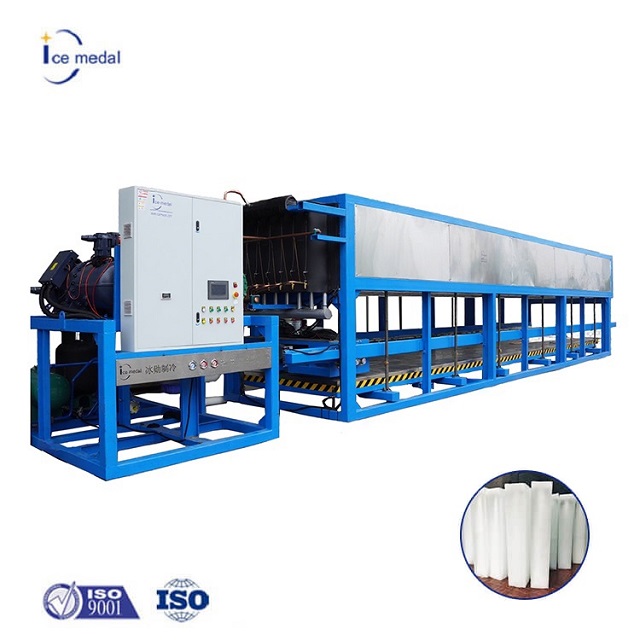

30 ton direct cooling ice block machine adopts advanced direct cooling technology, abandoning the indirect ice making method of traditional ice making machine relying on brine or cooling pool,widely used in food preservation, port /docks, cold chain logistics, chemical cooling, medical and pharmaceutical industries, etc.
We provide a variety of models of 30-ton direct cooling ice block machines to meet the personalized needs of different customers. At the same time, we can tailor-make exclusive ice making solutions for customers according to their specific requirements, such as ice block size, weight, output, installation site, etc.
Daily Capacity:It can produce 30 tons of ice blocks per day (each block ice is usually 25/50 kg), which is suitable for large ice factories, aquatics preservation, food processing, cold chain logistics and other industries that require large amounts of ice.
Efficient Ice Making: The ice making speed is fast. Generally, the ice is produced twice in 24 hours. The freezing time is about 10 hours each time the machine is turned on. Compared with the traditional brine tank ice making, the time is shortened by about 2 hours, which greatly improves the production efficiency.
Energy Saving and Consumption Reduction: With advanced refrigeration technology and upgraded management system, the power consumption of 1 ton of ice is as low as 60 degrees.

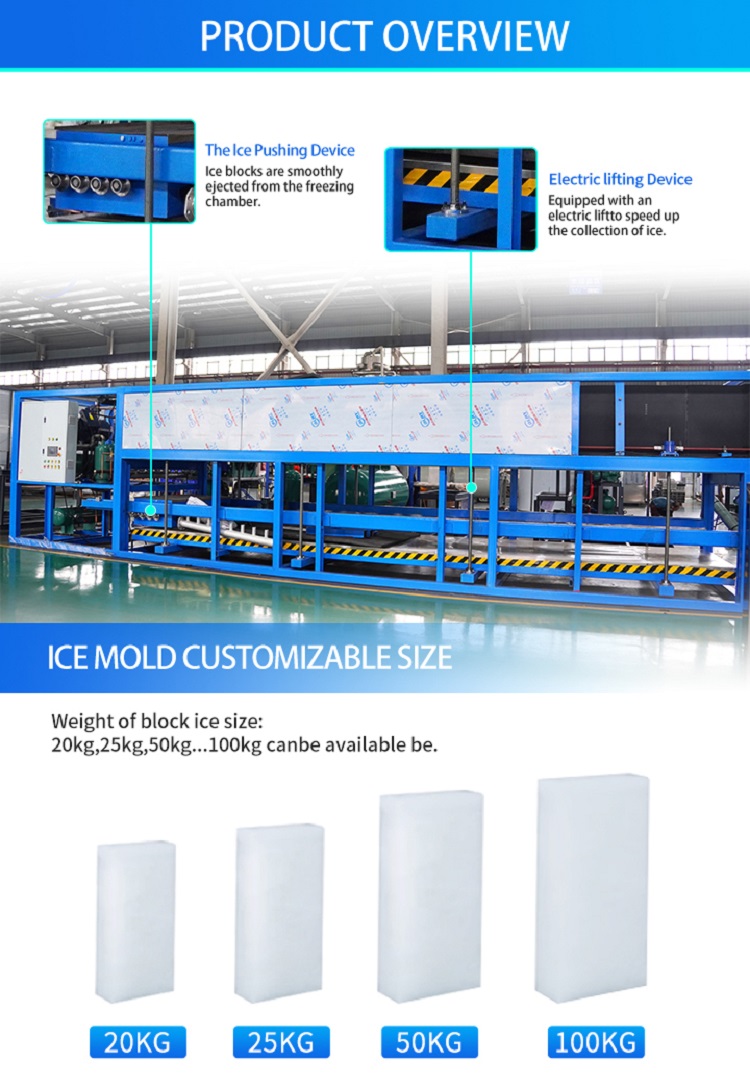

High Degree of Automation: From automatic water addition, ice making to ice removal, the entire process is fully automated without manual intervention.
High Quality Ice: Since the refrigerant directly exchanges heat with water, the ice produced is of high purity, with a small temperature difference between inside and outside. The ice is uniform and hard and is not easy to melt.
| IMBZL30 Automatic Block Ice Makinng Machine Parameters | |||
| Name | Unit | Parameter | |
Compressor Parameter | Model | RC2-550B | |
| Cooling Capacity(kW) | 311.1 | ||
| Power(kW) | 141.4 | ||
| Condensing Temperature | Degree Celsius(℃) | 38 | |
Evaporating Temperature | Degree Celsius(℃) | -15 | |
| Ambient Temperature | Degree Celsius(℃) | 28 | |
| Water Temperature | Degree Celsius(℃) | 16 | |
| Refrigerant | R507 | ||
| Voltage | V/P/HZ | 380/3/50 | |
| Lifting Motor | Power(kW) | 11 | |
Cooling Tower | Power(kW) | 2.2 | |
| Cooling Pump | Power(kW) | 7.5 | |
50kg Block Ice | Ice Dimension L*W*H(mm) | 435*150*850 | |
Double Evaporator Machine Dimension L*W*H(mm) | 11000*2240*2500*2 Evaporator | 3200*2000*2500 Compressor Unit | |
| Single Evaporator Machine Dimension L*W*H(mm) | 14000*2900*2650 Evaporator | 3200*2000*2500 Compressor Unit | |
Block ice are widely usedin in ice factory,cold chain logistics, food processing and storage, chemical and pharmaceutical industries, industrial cooling, fisheries, slaughterhouses, ice plants,fruit and vegetable preservation etc.
Hunan Icemedal Refrigeration Equipment Co., Ltd. is a comprehensive high-tech ice-making and refrigeration company integrating the design, development, production and sales of ice-making and refrigeration equipment. The company's main products include: tube ice machine, cube ice machine, flake ice machine, brine ice brick machine, direct cooling block ice machine, pure ice machine, ball ice machine, fully automatic edible ice plant production line, concrete cooling system, large cold storage and other series and projects.
