Icemedal IMF15 15 Tons Per Day Seawater Type Flake Ice Machine

Availability:
Quantity:
  • Certification:CE
  • MOQ:1 set
  • Warranty: 12 months
  • Payment: T/T, Western Union, Money Gram, L/C
  • Lead time: 40 days after getting deposit
  • After-sales Service Provided: Engineers available to service overseas
  • IMF15

  • Icemedal

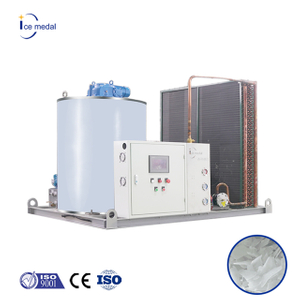

Icemedal IMF15 15 Tons Per Day Seawater Type Flake Ice Machine


The ice flake machine(1-30 tons daily capacity) is an ice making machine for producing dry, loose white ice flakes with a thickness of 1 to 2 mm. The ice flake has a large contact surface and can be rapidly cooled and thoroughly mixed without sharp points to damage the product to be cooled. The ice flaker machine is a leader in fast and large-scale refrigeration projects, and is widely used in supermarket food preservation, fishery protection, food processing, concrete cooling, etc.  The capacity of a single unit ranges from 1 to 30 tons per day to meet different needs.

10tons flake ice machine

Introduction of 15 Tons Per Day Flake Ice Machine

15 tons 24 hrs flake ice machine is very suitable for fresh fish cooling. Our machine is very welcomed in aquatic product processing plant. Flake ice is soft and thin, and do no damage to the skin of the fish.


  • Main Features

  • Spiral Skate Blade design, do not damage skate blade.

  • Continuous spray welding to ensure that the evaporator is not easily deformed. Reducing the Mechanical Resistance of ice machine during operation.

  • Smooth flow path, small resistance, improve refrigeration effect, reduce energy consumption.

  • Even ice thickness, covering an area of large, dry non-adhesion.

  • Thin, dry, loose white ice. The plane shape is irregular, the thickness is 15 mm-22 mm, the diameter is about 12-45 mm,no need to crush and can use at any time.

  • Design available for water lacking areas to use sea water to produce ice.

  • PLC controlling system, very easy to use


  • Parameters

                                                                    Flake Ice Machine Parameters
Model
Daily output(T/24h)
Cooling Method
Compressor Power Fan Power for Cooling Tower
Cooling Pump Power
Unit size (L*W*H mm) Unit N.W(kg)
IMF1
1
Air
7.44kw --
1320*900*900 210
IMF2 2 Air 10kw --
1750*1100*1050 360
IMF3 3 Water 8.45kw 0.37KW
1.5KW 1500*1250*1260 1000
IMF5 5 Water 13.49kw
0.75KW 2.2KW 1900*1500*1470 1100
IMF10 10 Water 33.8kw 1.5KW 2.2KW 2500*2000*1860 1500
IMF15 15 Water 44.5kw
1.5KW
4KW 3350*2150*1960
3200
IMF20 20 Water 64kw 1.5KW 5.5KW 3400*2220*2230 4200
IMF30 30 Water 93.7kw
2.2KW
7.5KW 4700*2250*2520 5000
  • Brand compressor,Refrigerant:R22/R404a.

  • Power supply:Voltage380V/3P/50HZ(For non standard voltage,unit configuration need to be calculated separatedly).

  • Operating Conditions:T(water supply):20℃,T(ambient),32℃,T(condensing),38℃,T(evaporating):-20℃.

  • (Note:The actual ice production varies due to the influence of water supply temperature and ambient temperature.)

  • (The final interpreation of the above metioned parameters is in Icemedal,there will be no further notice,if there is any thchnical change.)


  • Product Details

  • Ice machine evaporator adopts three-dimensional design, that is, internal scraping type ice making, the evaporator does not move, ice knife in the inner wall rotating scraping ice. This design reduces wear and provides high tightness.

  • SUS 304 stainless steel spiral ice blade, small resistance, low loss, no noise, uniform ice.

  • Refrigeration unit accessories are imported to ensure barrier-free and efficient operation.

  • Brand Compressor,those are the compressor brands we use for your better ice machine.

蒸发器  蒸发器

  12片冰机耙冰储冰系统

1314


  • Flake Ice Machine Application

    Food and aquatic products processing, manufacturing, concrete cooling, pharmaceutical industry, poultry processing,  fisheries, poultry meat processing, vegetable distribution and fresh keeping, chemical dyes and other places need ice.

11        1691743862411 拷贝
