15 tons 24 hrs flake ice machine is very suitable for fresh fish cooling. Our machine is very welcomed in aquatic product processing plant. Flake ice is soft and thin, and do no damage to the skin of the fish. Contact us for more details.
| |||||||||
IMF15
Icemedal

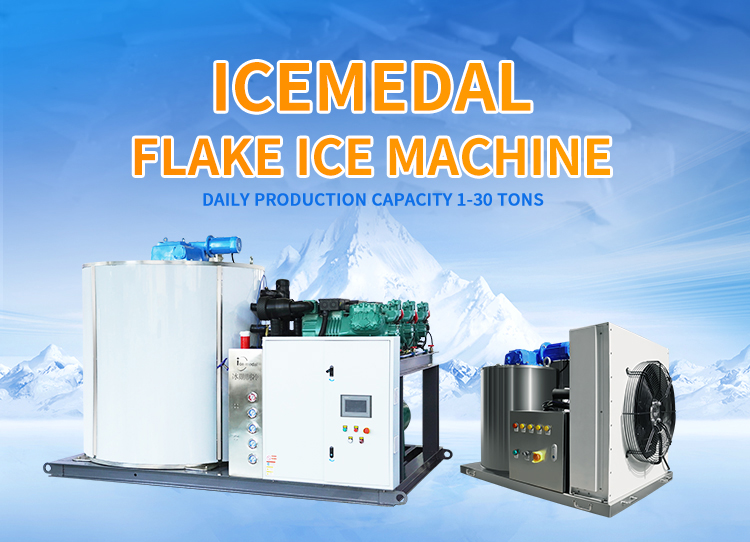

Icemedal Industrial 15 Tons Per Day Flake Ice Machine with Brand Compressor
| Flake Ice Machine Introduction

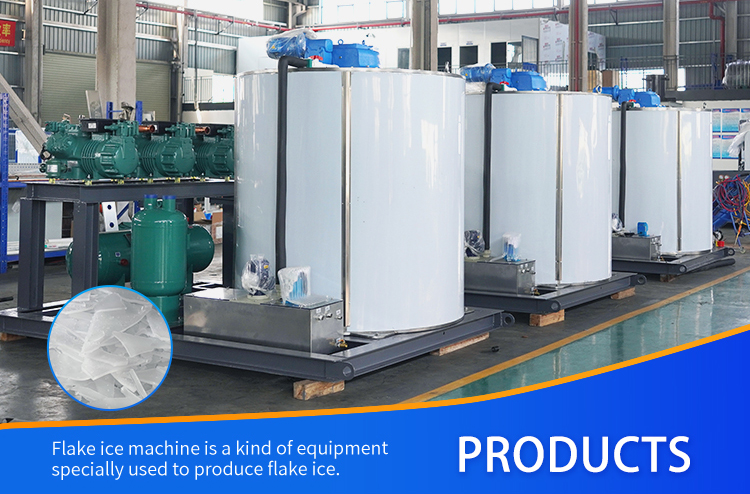

The flake ice machine (1-30 tons daily capacity) is an ice making machine for producing dry, loose white ice flakes with a thickness of 1 to 2 mm. The ice flake has a large contact surface and can be rapidly cooled and thoroughly mixed without sharp points to damage the product to be cooled. The ice flake machine is a leader in fast and large-scale refrigeration projects, and is widely used in supermarket food preservation, fishery protection, food processing, concrete cooling, etc.The capacity of a single unit ranges from 1 to 30 tons per day to meet different needs.
| The Features of Flake Ice Machine

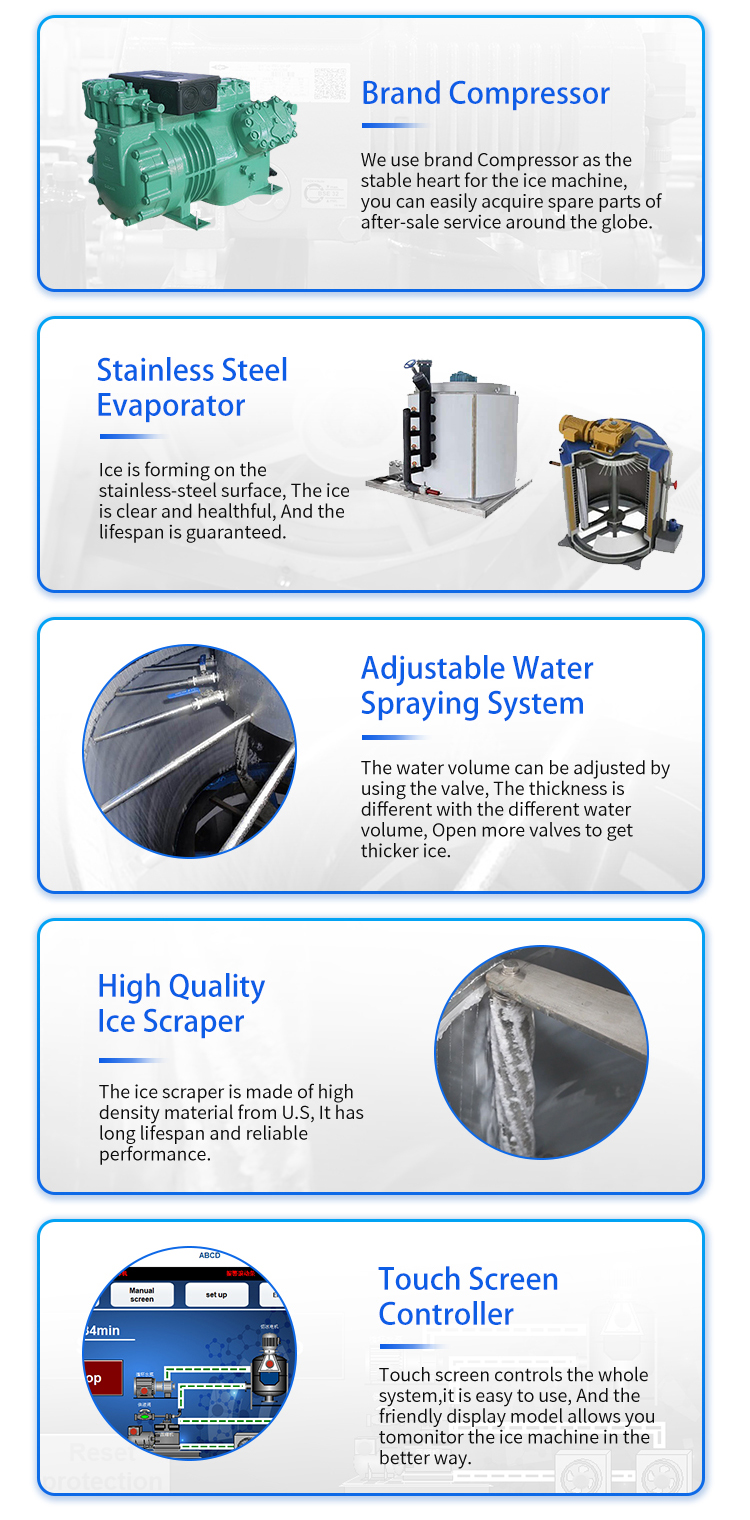

1.Spiral Skate Blade design, do not damage skate blade.
2.Continuous spray welding to ensure that the evaporator is not easily deformed. Reducing the Mechanical Resistance of ice machine during operation.
3.Smooth flow path, small resistance, improve refrigeration effect, reduce energy consumption.
4.Even ice thickness, covering an area of large, dry non-adhesion.
5.Thin, dry, loose white ice. The plane shape is irregular, the thickness is 15 mm-22 mm, the diameter is about 12-45 mm.
6.1-30Tons can be available,meeting different the require of customers.
| Product Parameters
| IMF15 15 tons Flake Ice Machine Parameters | ||
| Name | Unit | Parameter |
Compressor Parameter | Model | RC2-230B |
Cooling Capacity(kW) | 101.4 | |
| Power(kW) | 44.5 | |
Condenser | Model | WN-70 |
Heat Exchange(kW) | 219.5 | |
| Condensing Temperature | Degree Celsius(℃) | 40 |
Evaporating Temperature | Degree Celsius(℃) | -20 |
| Ambient Temperature | Degree Celsius(℃) | 32 |
| Water Temperature | Degree Celsius(℃) | 20 |
| Refrigerant | R507 | |
| Voltage | V/P/HZ | 380/3/50 |
Evaporator | Reducer Power(kw) | 0.75 |
Circulating Pump Power(kw) | 0.55 | |
| Brine Pump Power(kw) | 9 | |
Cooling Tower | Model | LX-60 |
Power(kW) | 1.5 | |
Cooling Pump | Model | GD80-21 |
| Power(kW) | 4 | |
Machine Dimension(Water Cooling) | L*W*H(mm) | 3100*2000*2176 |
| The Advantages of Ice Flake Machine
1. Efficient ice making: Icemedal ice flake machine adopts advanced ice making technology and circulating water spraying system, which can quickly prepare a large amount of flake ice in a short time to meet the high demand occasions, such as food processing, supermarket chilled display.
2. The characteristics of flake ice: the flake ice produced by Icemedal ice flake machine| is dry, not easy to caking, good fluidity, and the contact area between flake ice and fresh products is large, it can effectively cool down the temperature without damaging the goods, especially suitable for food preservation.
3. Energy saving and consumption reduction: Icemedal flake ice machine through the optimization of the evaporator design and high-efficiency insulation layer, so that the whole system design is more focused on energy efficiency, reduce operating costs.
4. Intelligent control: PLC intelligent control system, fully automated production, without manual operation.
5. Compact structure: the whole modular equipment, transportation, movement, on-site installation is very convenient, suitable for space-constrained commercial and industrial environments, easy to install and maintain.
6. Diversified applications: Flake ice is not only limited to the food industry, but also widely used in the medical, chemical, fruit and vegetable refrigerated transport, fish and meat refrigeration and preservation, concrete cooling, laboratories, artificial ski slopes and other areas of its wide range of applications, adaptability.
7. The whole machine through the CE certification, high security.
8. Durable: the equipment is usually made of stainless steel and anticorrosive materials, high-quality materials and manufacturing process to ensure that the sheet ice machine has a long service life.
Summary: Flake ice machine with its high efficiency and speed, energy saving, intelligence, wide range of applications, long-lasting and durable, etc., in many areas to show significant advantages, become an indispensable refrigeration solutions for many industries.
| About Us
Hunan Icemedal Refrigeration Equipment Co., Ltd. is a research and development, production, sales and service in one of the professional refrigeration equipment manufacturing enterprises. The products mainly include cold room,Flake ice machine,cube ice machine, ice tube maker machine, block ice machine,cold room.
Adhering to the “Integrity, win-win, enjoy life” concept, has been committed to building modular boutique factory for customers,to provide customers with solutions for profit replication, so as to achieve our "Win-win" business value.
