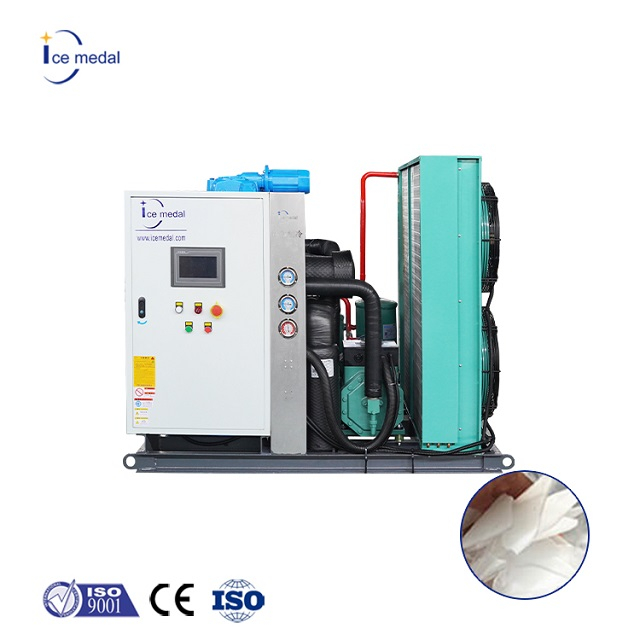

IMF3 industrial flake ice machine can produce dry, loose white flake ice with a thickness of 1.5-2.2m and a diameter of 12-45mm. The flake ice machine has excellent refrigeration effect, has the characteristics of large refrigeration capacity and rapid ice making, and is widely used in catering and supermarkets, fishery preservation, food processing, concrete cooling and other fields.
| |||||||||
IMF3
Icemedal
Icemedal flake ice machine has excellent refrigeration effect, has the characteristics of large refrigeration capacity and rapid ice making, The equipment can produce 2-50 tons of ice per day, which can meet the needs of different customers.
1. International brand compressors. Original authentic, refurbished machines and counterfeit machines are rejected. The compressor has high working efficiency and is durable and not easily damaged.

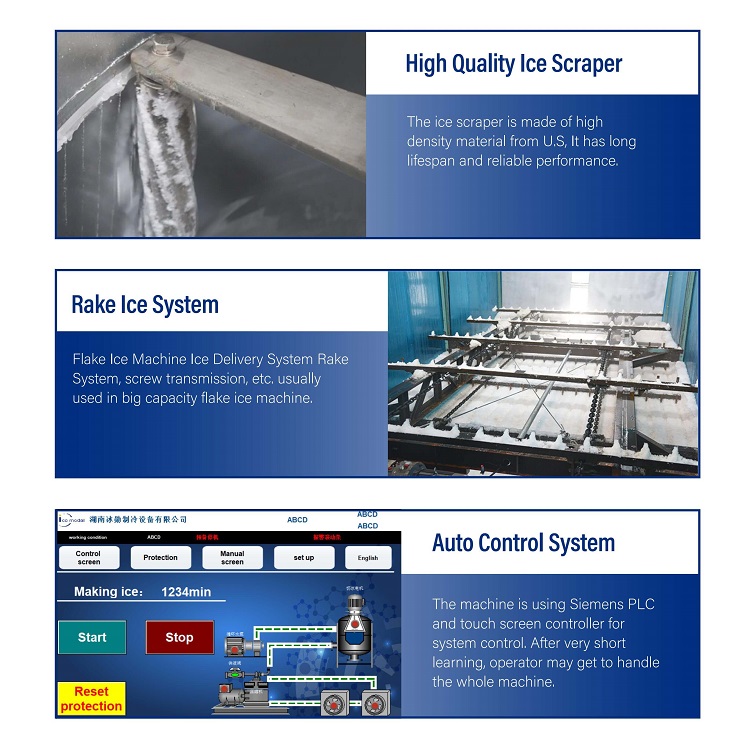

2. Vertical evaporator, ice scraper with imported material. The inner wall of the evaporator and the ice scraper are extremely wear-resistant, avoiding problems such as poor ice scraping.
3. Fully automated ice production. Turn on the power and water source and turn on the equipment to continuously produce ice.
4. The operation is simple and convenient. Touch screen operation, operation keys are clearly marked, easy to learn, and very simple to use.
5. Small footprint. The 3D three-dimensional design fully optimizes the pipeline and component layout and reduces the land occupation.
| Product Parameter
| IMF3 Flake Ice Machine Parameters | ||
| Name | Unit | Parameter |
Bitzer Compressor Parameter | Model | 4NES-14 |
Cooling Capacity(kW) | 19.83 | |
| Power(kw) | 8.45 | |
Condenser | Model | WN-15 |
Heat Exchange(kW) | 49.2 | |
| Condensing Temperature | Degree Celsius(℃) | 40 |
| Evaporating Temperature | Degree Celsius(℃) | -20 |
Ambient Temperature | Degree Celsius(℃) | 32 |
| Ambient Temperature | Degree Celsius(℃) | 20 |
| Refrigerant | R22 | |
Evaporator | Reducer Power(kw) | 0.37 |
| Circulating Pump Power(kw) | 0.12 | |
| Brine Pump Power(kw) | 9 | |
Cooling Tower | Model | LX-15 |
| Power(kw) | 0.37 | |
Cooling Pump | Model | GD40-20 |
Power | 1.5 | |
Machine Dimension(Water Cooling) | L*W*H(mm) | 1500*1250*1260 |
| Flake Ice Application
Flake ice are widely used in food and aquatic products processing, manufacturing, concrete cooling, pharmaceutical industry, poultry processing, fisheries, poultry meat processing, Fruit and vegetable distribution and fresh keeping, chemical dyes and other places need ice.
| Quality Control
Hunan Icemedal Refrigeration Equipment Co. Ltd.was established in 2019, located in Changsha,Hunan Province, with 4,000 square meters of standard production factory and more than 70 elite talents.
Icemedal Refrigeration has through ISO9001, ISO45001, ISO4001, CE, China High-Tech Enterprise and other certifications. Icemedal adhere to scientific and technological innovation, has obtained more than ten invention patents, application patents and software works. The R&D direction focuses on edible ice production line, large-scale ammonia tube ice machine,solid cut flat tube ice machine, ball ice machine, pure ice machine and other fields.
Icemedal Refrigeration is experienced in tube ice machine, cube ice machine, block ice machine, flake ice machine,cold storage, especially in edible cup ice bag ice production line, large ammonia tube ice machine and other fields in the forefront of the industry.
Icemedal adheres to the concept of worry-free delivery, equipped with mature and perfect installation, after-sales team, the opening of remote online service, remote video communication, door-to-door service and other after-sales treatment process, so that the delivery of more assured!
Icemedal and many foreign counterparts to reach a number of technical service cooperation, products are exported to Europe, America, Southeast Asia, the Middle East and Africa, more than 130 countries and regions.
Icemedal flake ice machine has excellent refrigeration effect, has the characteristics of large refrigeration capacity and rapid ice making, The equipment can produce 2-50 tons of ice per day, which can meet the needs of different customers.
1. International brand compressors. Original authentic, refurbished machines and counterfeit machines are rejected. The compressor has high working efficiency and is durable and not easily damaged.
2. Vertical evaporator, ice scraper with imported material. The inner wall of the evaporator and the ice scraper are extremely wear-resistant, avoiding problems such as poor ice scraping.
3. Fully automated ice production. Turn on the power and water source and turn on the equipment to continuously produce ice.
4. The operation is simple and convenient. Touch screen operation, operation keys are clearly marked, easy to learn, and very simple to use.
5. Small footprint. The 3D three-dimensional design fully optimizes the pipeline and component layout and reduces the land occupation.
| Product Parameter
| IMF3 Flake Ice Machine Parameters | ||
| Name | Unit | Parameter |
Bitzer Compressor Parameter | Model | 4NES-14 |
Cooling Capacity(kW) | 19.83 | |
| Power(kw) | 8.45 | |
Condenser | Model | WN-15 |
Heat Exchange(kW) | 49.2 | |
| Condensing Temperature | Degree Celsius(℃) | 40 |
| Evaporating Temperature | Degree Celsius(℃) | -20 |
Ambient Temperature | Degree Celsius(℃) | 32 |
| Ambient Temperature | Degree Celsius(℃) | 20 |
| Refrigerant | R22 | |
Evaporator | Reducer Power(kw) | 0.37 |
| Circulating Pump Power(kw) | 0.12 | |
| Brine Pump Power(kw) | 9 | |
Cooling Tower | Model | LX-15 |
| Power(kw) | 0.37 | |
Cooling Pump | Model | GD40-20 |
Power | 1.5 | |
Machine Dimension(Water Cooling) | L*W*H(mm) | 1500*1250*1260 |
| Flake Ice Application
Flake ice are widely used in food and aquatic products processing, manufacturing, concrete cooling, pharmaceutical industry, poultry processing, fisheries, poultry meat processing, Fruit and vegetable distribution and fresh keeping, chemical dyes and other places need ice.
| Quality Control
Hunan Icemedal Refrigeration Equipment Co. Ltd.was established in 2019, located in Changsha,Hunan Province, with 4,000 square meters of standard production factory and more than 70 elite talents.
Icemedal Refrigeration has through ISO9001, ISO45001, ISO4001, CE, China High-Tech Enterprise and other certifications. Icemedal adhere to scientific and technological innovation, has obtained more than ten invention patents, application patents and software works. The R&D direction focuses on edible ice production line, large-scale ammonia tube ice machine,solid cut flat tube ice machine, ball ice machine, pure ice machine and other fields.
Icemedal Refrigeration is experienced in tube ice machine, cube ice machine, block ice machine, flake ice machine,cold storage, especially in edible cup ice bag ice production line, large ammonia tube ice machine and other fields in the forefront of the industry.
Icemedal adheres to the concept of worry-free delivery, equipped with mature and perfect installation, after-sales team, the opening of remote online service, remote video communication, door-to-door service and other after-sales treatment process, so that the delivery of more assured!
Icemedal and many foreign counterparts to reach a number of technical service cooperation, products are exported to Europe, America, Southeast Asia, the Middle East and Africa, more than 130 countries and regions.
