| Quantity: | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| The 10 tons edible cube ice machine is the first fully automatic edible cube ice machine to incorporate three leading technologies: adjustable ice thickness, automatic water replenishment, and automatic ice formation and removal. | |||||||||
IMC10
Icemedal

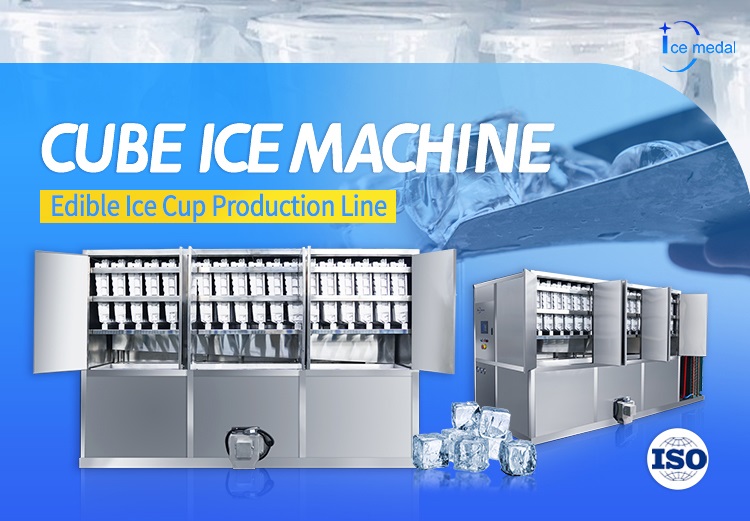

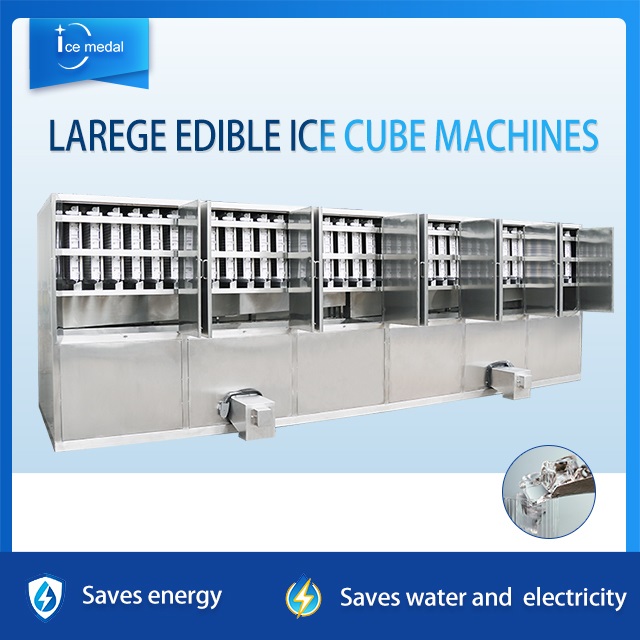

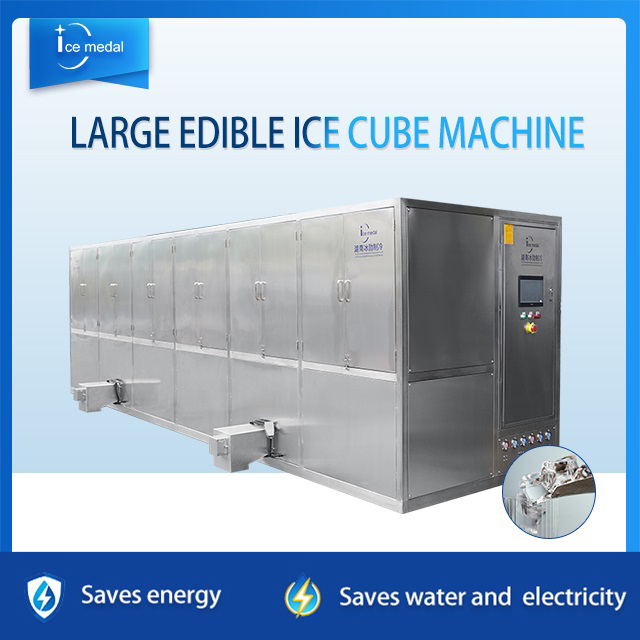

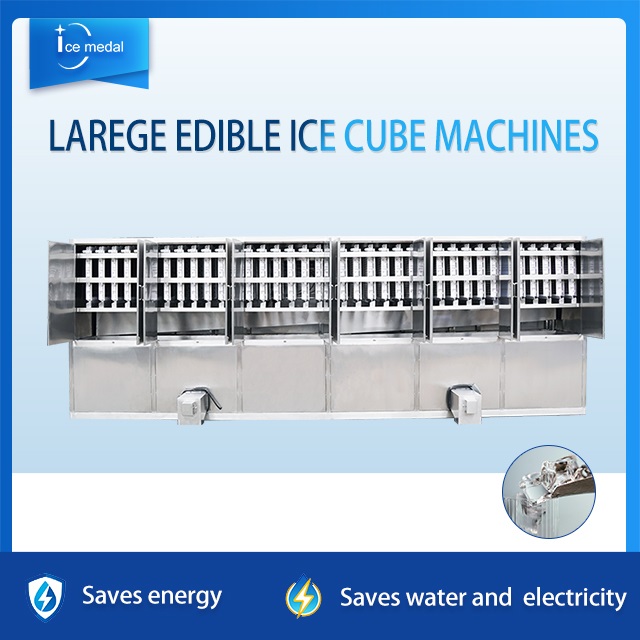

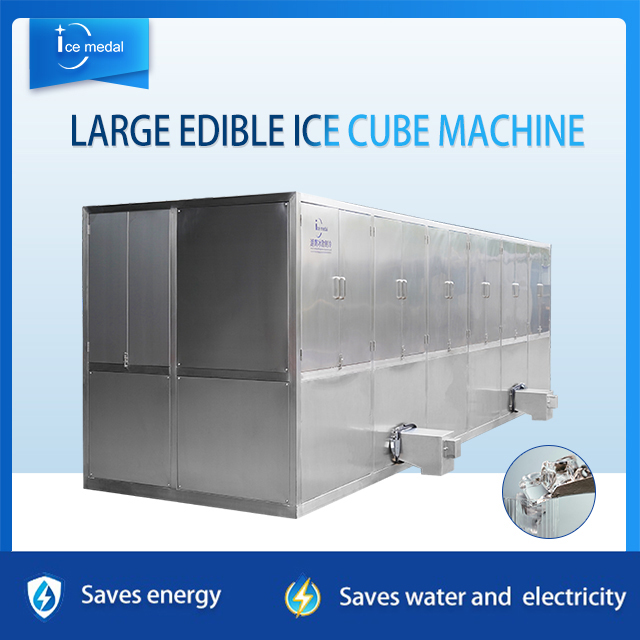

The 10-ton cube ice machine is a large commercial ice machine produced by Icemedal Refrigeration Equipment Co., Ltd., with a daily production capacity of 10,000 kg of cube ice. The ice machine adpot advanced technologies, including automatic ice thickness adjustment, ambient temperature adaptation, automatic ice-making leveling and stabilization, and an auxiliary condensing pressure stabilization system, ensuring an efficient and stable ice-making process.
1.Daily output: 10,000 kg/24 hours of cube ice;
2. PLC program control with touchscreen operation, allowing flexible adjustments and featuring comprehensive, reliable safety protections;
3. High production capacity, low power consumption and stable performance;
4. Entire machine constructed from stainless steel
| Name | Unit | Parameter |

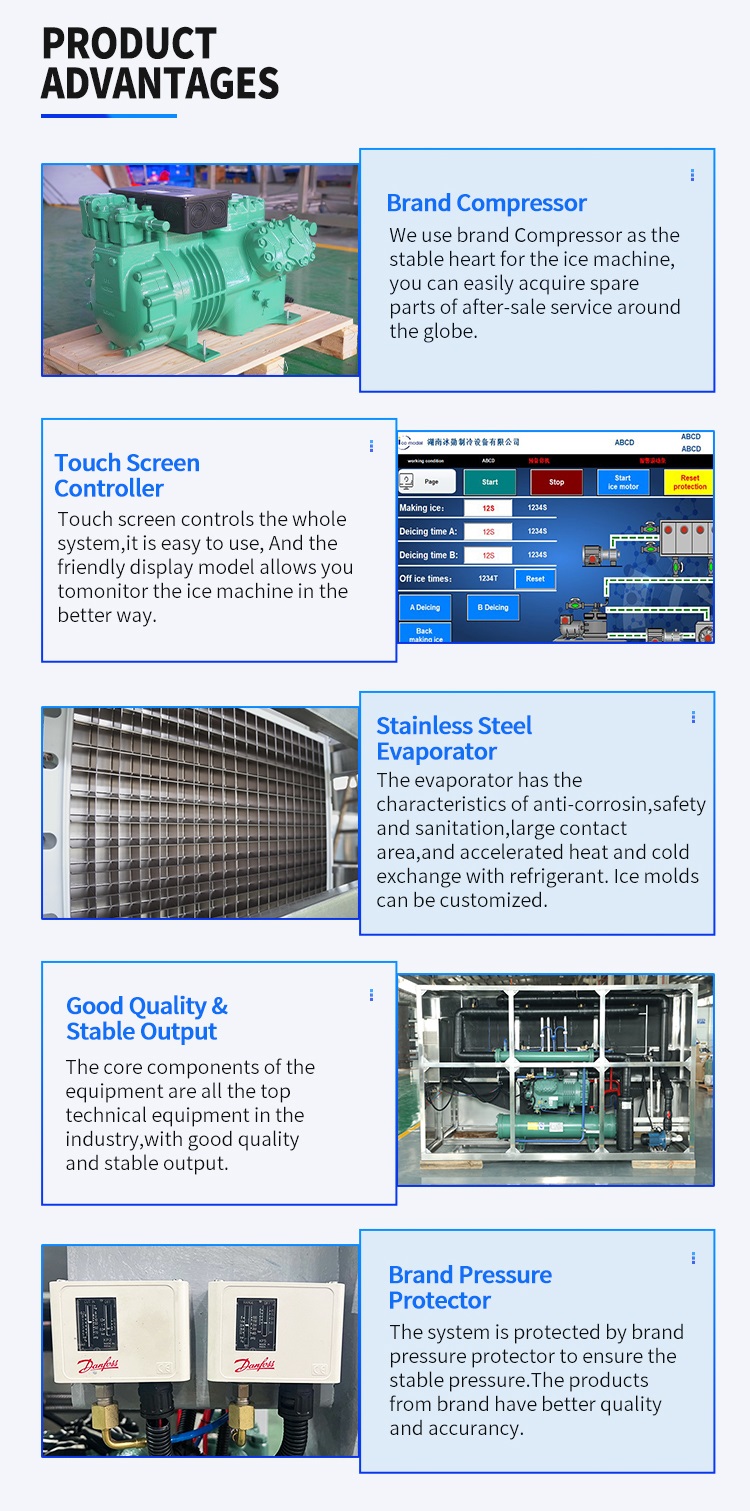

Bitzer Compressor Parameter | Model | 6HE-28*2 |
| Cooling Capacity(kW) | 60.2*2 | |
| Power(Kw) | 21*2 | |
Condenser | Model | WN-25*2 |
| Heat Exchange(kW) | 95.2*2 | |
Condensing Temperature | Degree Celsius(℃) | 40 |
Evaporating Temperatur | Degree Celsius(℃) | -10 |
| Ambient Temperature | Degree Celsius(℃) | 32 |
| Water Temperature | Degree Celsius(℃) | 20 |
| Refrigerant | R404a/R507 | |
Voltage | V/P/HZ | 380/3/50 |
| Circulating Pump | Power(kW) | 1.1 |
Cooling Tower | Model | LX-60 |
| Power(kW) | 1.5 | |
Cooling Pump | Model | GD80-21 |
| Power(kW) | 4 | |
| Cooling Fan | Power | 1.5 |
| Machine Dimension(Water Cooling) | L*W*H(mm) | 5730*1780*2130 |
| Weight | kg | 3000 |
The cube ice is suitable for a variety of environments, such as bars, restaurants,automatic ice plant,Convenience store chains. ice cubes have a large contact area and can quickly cool drinks.
The 10-ton cube ice machine is a large commercial ice machine produced by Icemedal Refrigeration Equipment Co., Ltd., with a daily production capacity of 10,000 kg of cube ice. The ice machine adpot advanced technologies, including automatic ice thickness adjustment, ambient temperature adaptation, automatic ice-making leveling and stabilization, and an auxiliary condensing pressure stabilization system, ensuring an efficient and stable ice-making process.
1.Daily output: 10,000 kg/24 hours of cube ice;
2. PLC program control with touchscreen operation, allowing flexible adjustments and featuring comprehensive, reliable safety protections;
3. High production capacity, low power consumption and stable performance;
4. Entire machine constructed from stainless steel
| Name | Unit | Parameter |
Bitzer Compressor Parameter | Model | 6HE-28*2 |
| Cooling Capacity(kW) | 60.2*2 | |
| Power(Kw) | 21*2 | |
Condenser | Model | WN-25*2 |
| Heat Exchange(kW) | 95.2*2 | |
Condensing Temperature | Degree Celsius(℃) | 40 |
Evaporating Temperatur | Degree Celsius(℃) | -10 |
| Ambient Temperature | Degree Celsius(℃) | 32 |
| Water Temperature | Degree Celsius(℃) | 20 |
| Refrigerant | R404a/R507 | |
Voltage | V/P/HZ | 380/3/50 |
| Circulating Pump | Power(kW) | 1.1 |
Cooling Tower | Model | LX-60 |
| Power(kW) | 1.5 | |
Cooling Pump | Model | GD80-21 |
| Power(kW) | 4 | |
| Cooling Fan | Power | 1.5 |
| Machine Dimension(Water Cooling) | L*W*H(mm) | 5730*1780*2130 |
| Weight | kg | 3000 |
The cube ice is suitable for a variety of environments, such as bars, restaurants,automatic ice plant,Convenience store chains. ice cubes have a large contact area and can quickly cool drinks.
