| The integrated tube ice machine is a kind of efficient ice-making equipment that integrates the functions of ice-making, ice-storage and ice-taking into a single unit, which is widely used in the beverage industry, food processing, cold chain logistics and industrial cooling. MOQ:1 set Payment:T/T, Western Union, MoneyGram, L/C Lead Time:45 days after getting down payment Certification:CE Place of Origin:Hunan, China (Mainland) Shipping Port:Guangzhou, China or as your request(Mainland,China) Warranty:1 year After-sales Service Provided:Engineers available to service overseas | |||||||||
IMT10
Icemedal

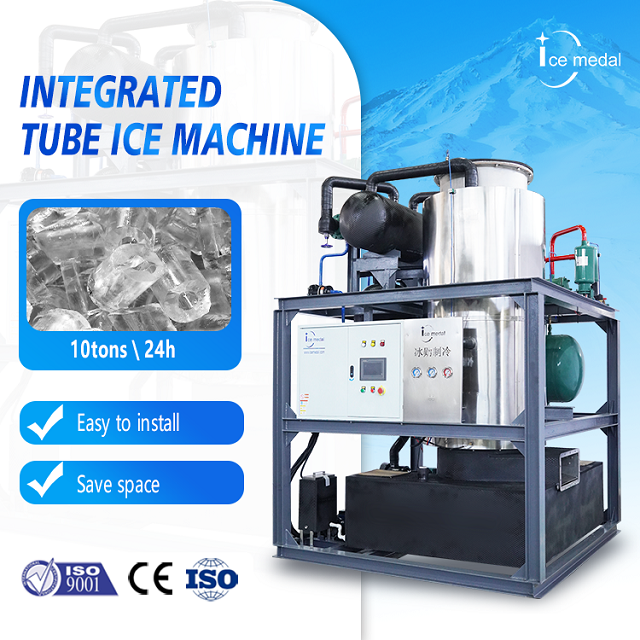

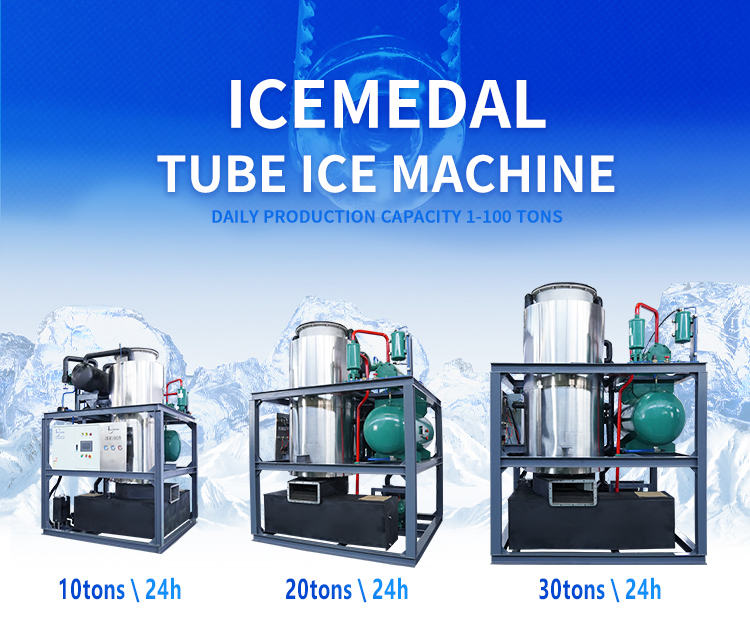

10 ton integrated tube ice machine is an ice-making equipment with a daily output of 10000 kg, suitable for the ice-making needs of middle and large enterprises. This equipment has the characteristics of high efficiency, stability, easy operation, energy saving and environmental protection, and is an ideal choice for large ice factories, food processing plants, cold chain logistics, and catering industries.
| Icemedal Integrated Tube Ice Machine Advantages:

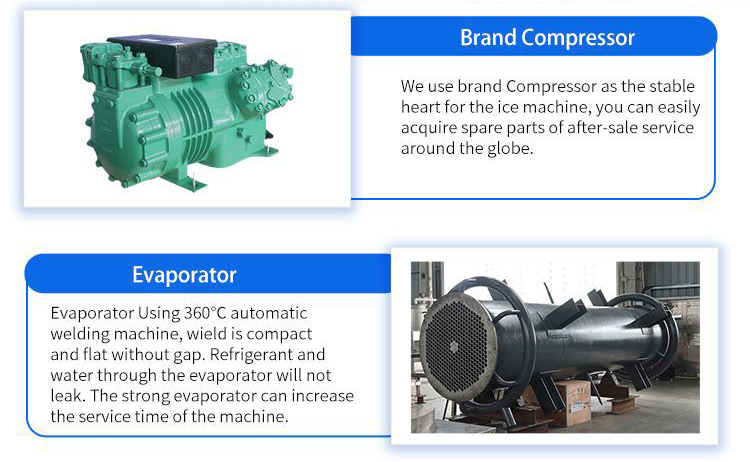

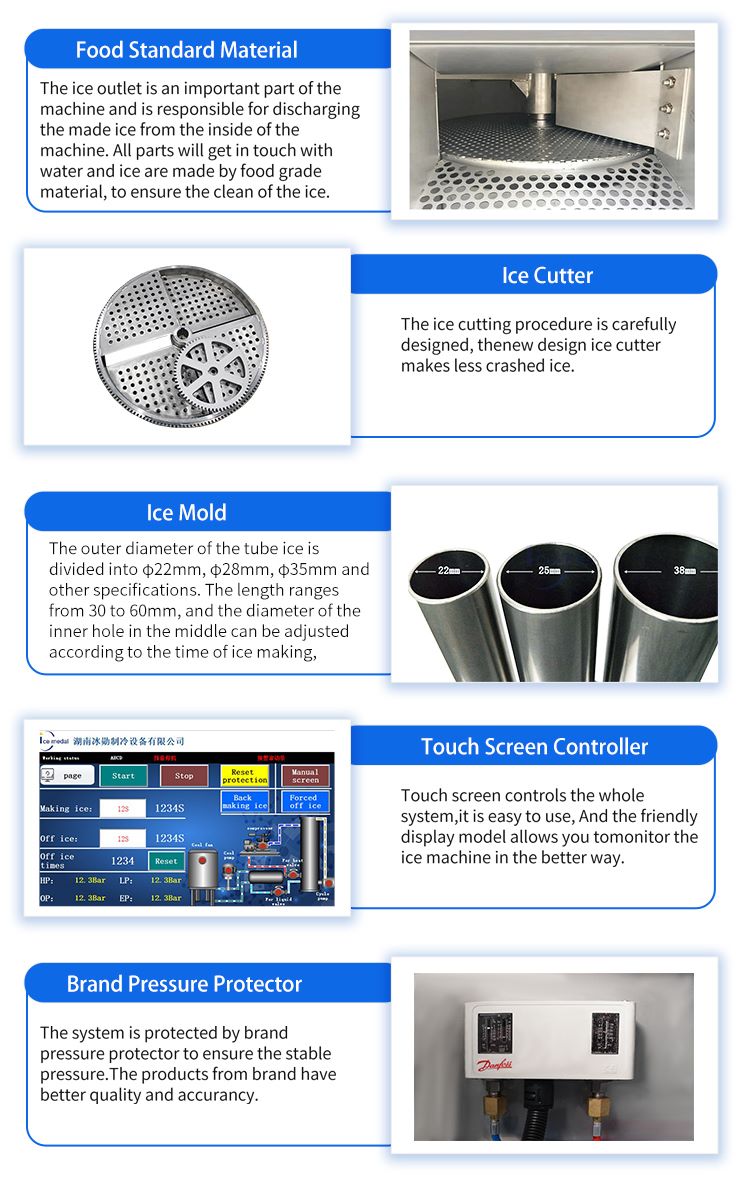

1.Highly integrated design: The core components such as the ice-making host, condenser, evaporator, and compressor are integrated into one design, without the need for additional pipelines or external refrigeration equipment.
2.Better ice quality :Tube ice is more uniform and less crushed ice
3.Smaller space :Less shipping costs and constructing costs, The 10ton intedrated tube ice machine floor space is usually reduced by 30%~50% compared to split-type equipment
4. Easier installation (Less installing time and costs, reduce the risk of damage due toimproper operation)
| Integrated Tube Ice Machine Parameters
| Model | IMT5 | IMT10 | IMT15 | IMT20 | IMT30 |
Ice output | 5t/24hrs | 10t/24hrs | 15t/24hrs | 20t/24hrs | 30t/24hrs |
| lce tube diameter | Φ22,Φ29,Φ35,Φ42 is optional | Φ22,Φ29,Φ35,Φ42 is optional | Φ22,Φ29,Φ35,Φ42 is optional | Φ22,Φ29,Φ35,Φ42 is optional | Φ22,Φ29,Φ35,Φ42 is optional |
| Cooling Capacity | 52.5kw | 82kw | 123.9kw | 165.2kw | 247.8kw |
| input power | 20.95kw | 37.2kw | 51.9kw | 64.5kw | 106.8kw |
| Compressor input power | 17.3kw | 31.9kw | 45.2kw | 52.8kw | 102.6kw |
| lce cut reducer input power | 0.75kw | 0.75kw | 1.5kw | 1.5kw | 2.2kw |
| Water pump input | 1.1kw | 1.5kw | 2.2kw | 2.2kw | 4kw |
| Ice machine Weight | 1600kg | 2750kg | 4000kg | 4800kg | 6200kg |
| Ice Machine Size | 1800*1620*2450 | 2400*2250*3200 | 2400*2250*4200 | 2500*2250*5437 | 2500*2250*6090 |
| tube ice machine application
Tube ice are widely used in food processing plant pre-cooling cooling, meat and poultry processing plants, fisheries, aquatic fruits and vegetables preservation and transportation.
