| 15 Ton tube ice machine with stainless steel evaporator, one frame design and produces hollow cylindrical ice tubes with slow-melting, widely used in food preservation and beverage cooling. It supports both air-cooled and water-cooled configurations. We offer factory-direct pricing and capacity and voltage can be customized as your request. Also the products with CE and ISO 9001 certified. MOQ:1 set Payment:T/T, Western Union, MoneyGram, L/C Lead Time:45 days after getting down payment Place of Origin:Hunan, China (Mainland) Shipping Port:Guangzhou, China or as your request(Mainland,China) Warranty:1 year After-sales Service Provided:Engineers available to service overseas | |||||||||
IMT15
Icemedal

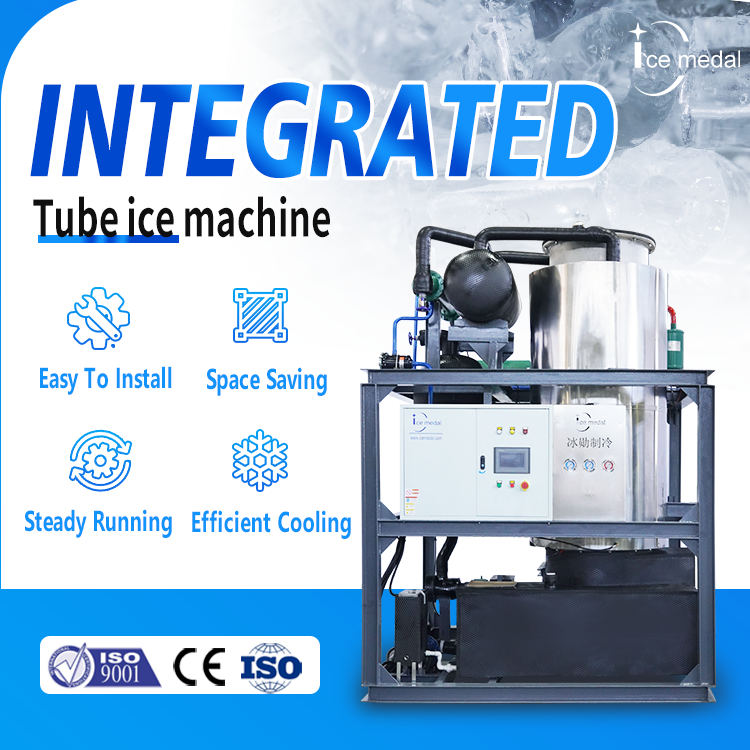

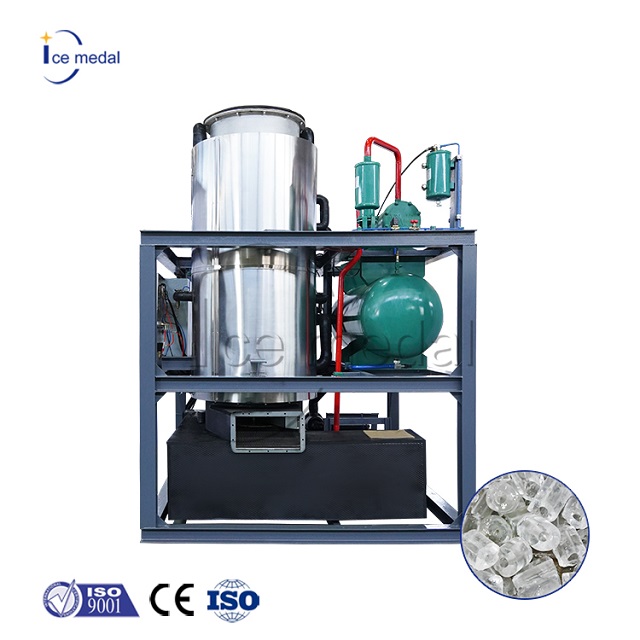

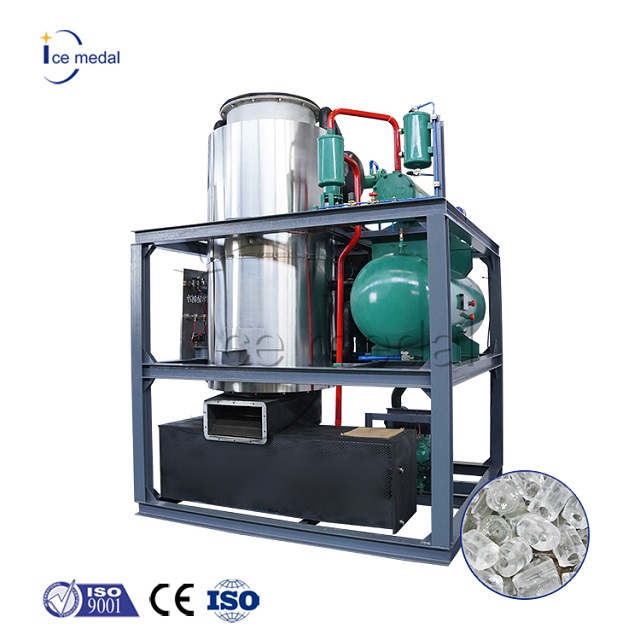

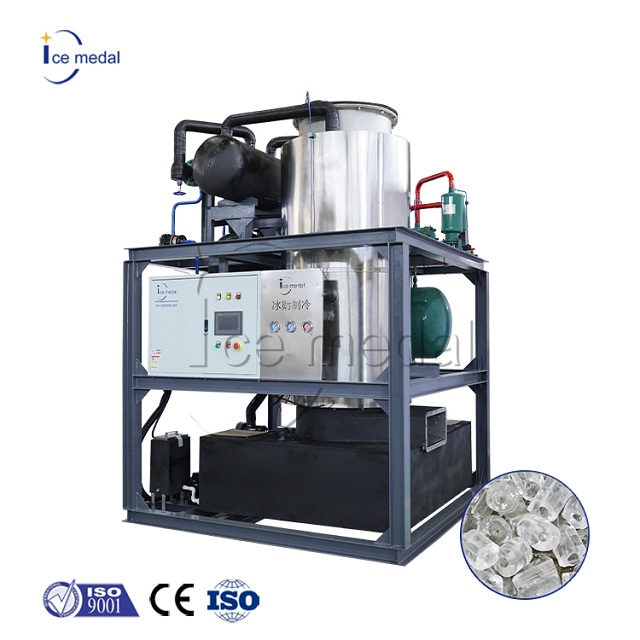

The 15-ton integrated tube ice machine has become an ideal ice-making solution for many industries due to its high efficiency, low energy consumption, and easy maintenance. If you are looking for an ice-making equipment that can meet large capacity requirements and has energy-saving and environmental protection,15ton Integrated tube ice maker machine will be a good choice.
1.Integrated Design: It adopts a compact integrated design that integrates ice making, ice storage and transportation functions, greatly saving plant space and simplifying the installation process.
2.Customization Service: We supports the adjustment of ice tube sizes of various specifications to meet the special needs of different industries. At the same time, additional services such as customized appearance design and logo printing can also be provided according to customer needs.
3.Better ice quality :Tube ice is more uniform and less crushed ice
4.Smaller space :Less shipping costs and constructing costs, The 15ton intedrated tube ice maker floor space is usually reduced by 30%~50% compared to split-type equipment
5. Easier installation (Less installing time and costs, reduce the risk of damage due toimproper operation)

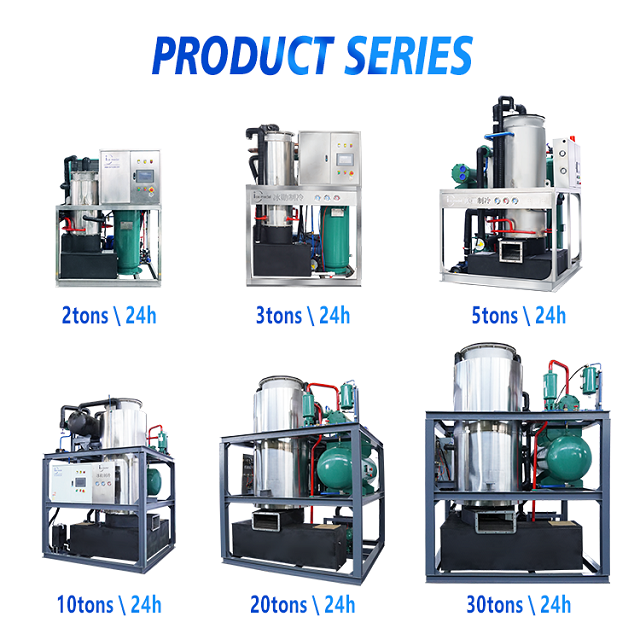

| Model | IMT5 | IMT10 | IMT15 | IMT20 | IMT30 |
Ice output | 5t/24hrs | 10t/24hrs | 15t/24hrs | 20t/24hrs | 30t/24hrs |
| lce tube diameter | Φ22,Φ29,Φ35,Φ42 is optional | Φ22,Φ29,Φ35,Φ42 is optional | Φ22,Φ29,Φ35,Φ42 is optional | Φ22,Φ29,Φ35,Φ42 is optional | Φ22,Φ29,Φ35,Φ42 is optional |
| Cooling Capacity | 52.5kw | 82kw | 123.9kw | 165.2kw | 247.8kw |
| input power | 20.95kw | 37.2kw | 51.9kw | 64.5kw | 106.8kw |
| Compressor input power | 17.3kw | 31.9kw | 45.2kw | 52.8kw | 102.6kw |
| lce cut reducer input power | 0.75kw | 0.75kw | 1.5kw | 1.5kw | 2.2kw |
| Water pump input | 1.1kw | 1.5kw | 2.2kw | 2.2kw | 4kw |
| Ice machine Weight | 1600kg | 2750kg | 4000kg | 4800kg | 6200kg |
| Ice Machine Size | 1800*1620*2450 | 2400*2250*3200 | 2400*2250*4200 | 2500*2250*5437 | 2500*2250*6090 |
Ice tube are widely used in food processing plant pre-cooling cooling, meat and poultry processing plants, fisheries, aquatic fruits and vegetables preservation and transportation.
The price of a 15-ton integrated tube ice machine in varies based on:
Condenser type (air-cooled vs. water-cooled)
Refrigerant choice and compressor brand
Local voltage and climate adaptations
Optional accessories (ice bin, conveyor, ice bagger)
Shipping terms (FOB / CIF / DDP)
Request a Free Quotation — Fill in the form below or contact our export team directly. We typically respond within 24 hours with a detailed price proposal and technical specifications.
