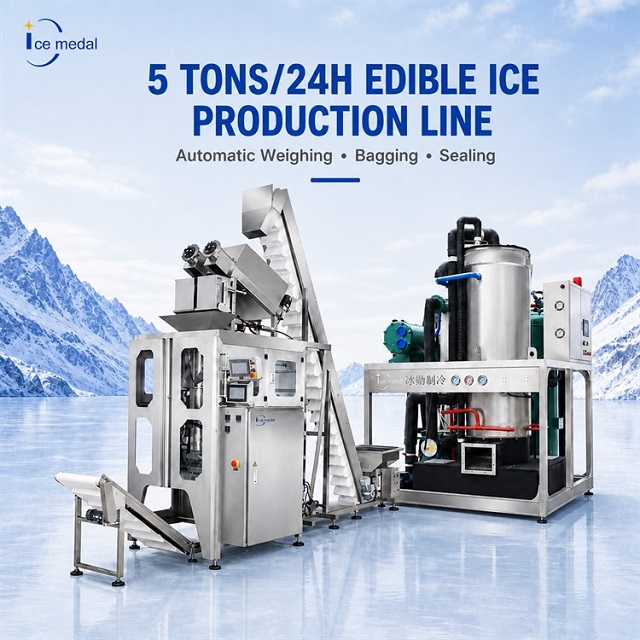

| The 5 Ton/24H Tube Ice Production Line is a compact solution for producing and packaging edible tube ice for commercial ice businesses and small ice plants.It include a tube ice machine, ice conveyor and Integrated Automatic Ice Packing Machine The production capacity and configuration can be customized according to the required output, ice size, packaging weight, and site conditions. | |||||||||
Icemedal

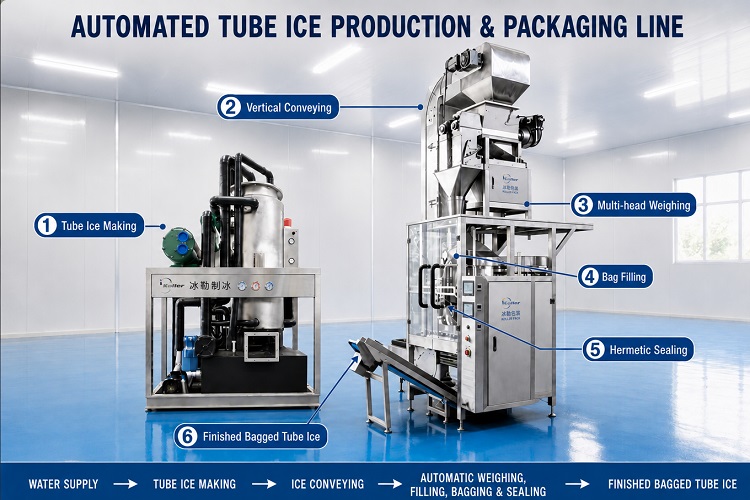

The tube ice production line combines ice making, conveying, weighing, filling, bagging, and sealing into a streamlined production process. The configuration can be adjusted according to production capacity, packaging requirements, and site conditions.

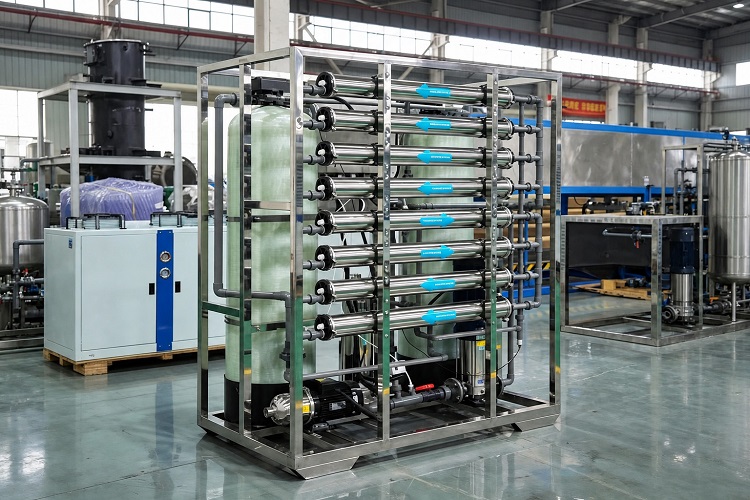

Clean water is supplied to the tube ice machine. A water treatment system can be added as an optional component according to the water quality and project requirements.

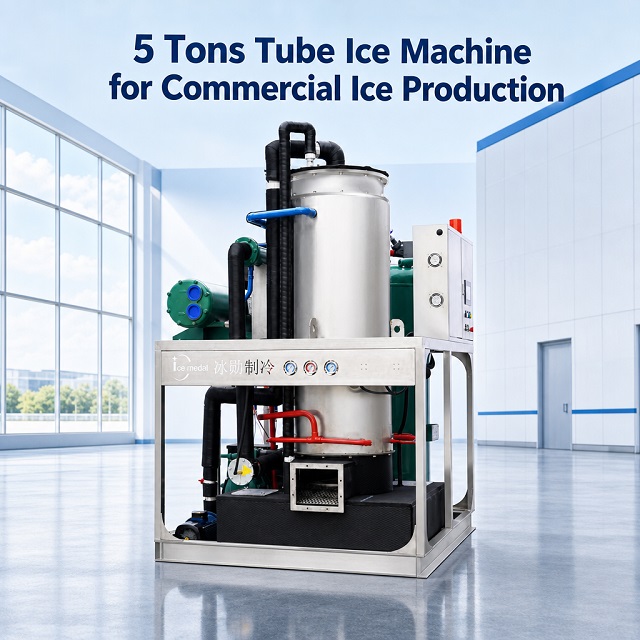

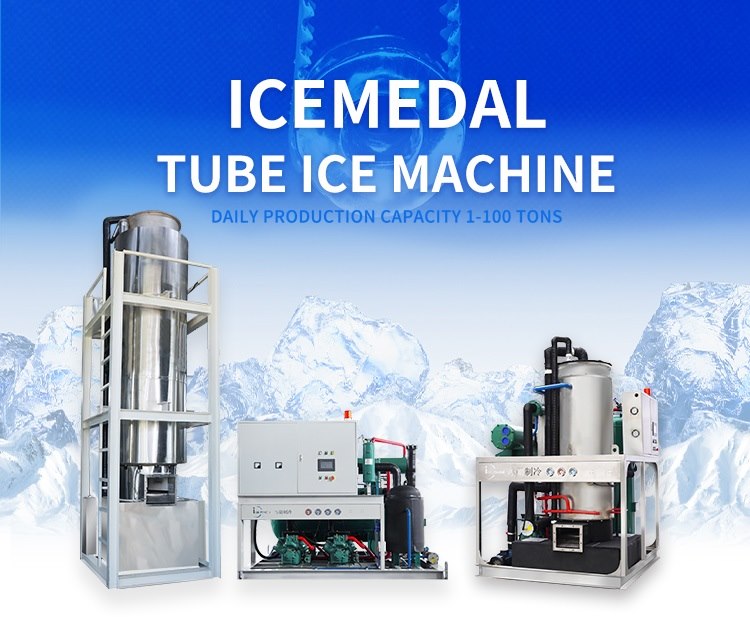

The tube ice machine freezes water into tube ice of uniform specifications. The system also automatically performs the harvesting process and discharges the produced ice into the conveying and storage hopper.
The finished tube ice is transferred from the ice machine to the automatic packing equipment through an ice conveyor, providing a continuous ice for packaging.

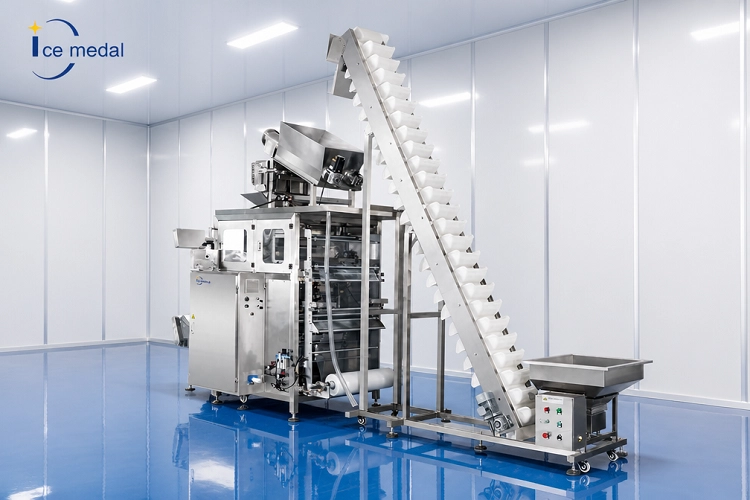

The tube ice enters an integrated automatic packing machine, where the ice is automatically weighed, filled into bags, and prepared for sealing. This integrated design helps reduce manual handling during the packaging process.
After the required amount of tube ice is packed, the bags are automatically sealed to produce finished bagged tube ice ready for storage, distribution, or sale.
The bagged edible tube ice production line can be used for a wide range of commercial and food-related applications, including:Small ice factories,Chain Supermarkets and Chain convenience stores,Ice distribution businesses,Coffee factories
Beverage and fruit juice factories,Baking industry,Food and catering businesses,Other commercial ice applications
For new ice businesses, the compact design and integrated packing system can help simplify the setup of a small edible ice production facility.
For customers planning to start or expand a small bagged ice business, an integrated tube ice production line provides a practical way to combine ice making and automatic packaging in one production setup. Icemedal can configure the line according to production capacity, ice size, packaging requirements, and available space.

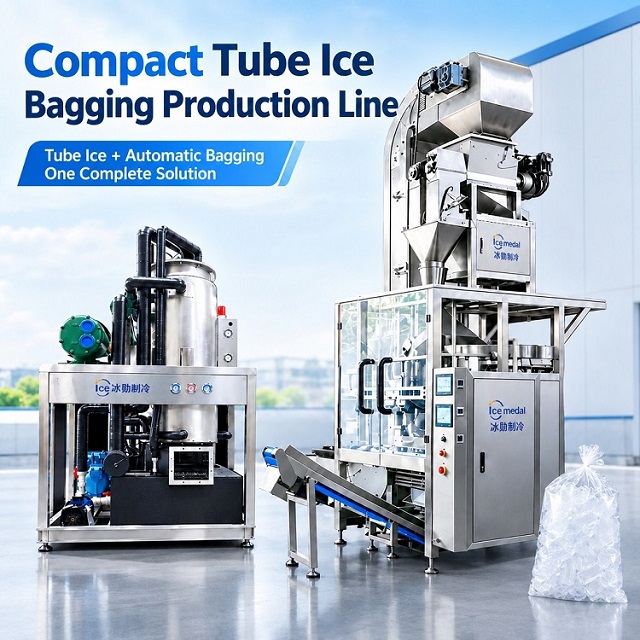

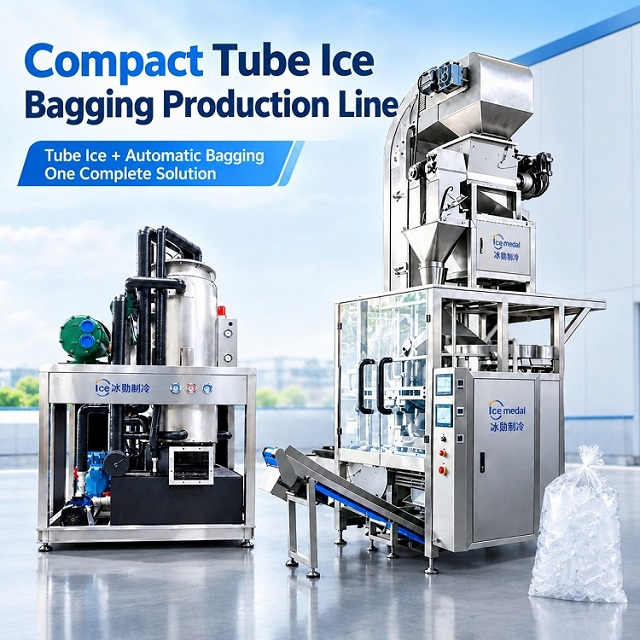

The standard configuration combines a Tube Ice Machine, Ice Conveyor, and Integrated Automatic Packing Machine. The packing machine integrates automatic weighing, ice filling, bagging, and sealing into one unit, helping reduce manual handling during the packaging process.

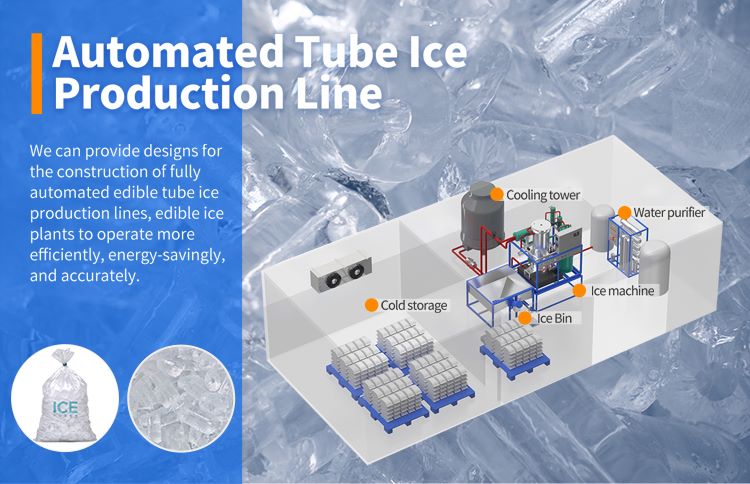

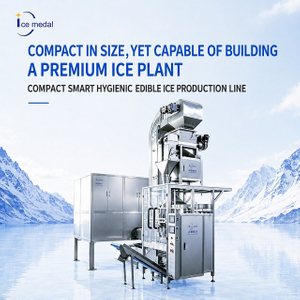

The production line is designed with a compact equipment layout for customers with limited installation space. A 5 Ton/24H configuration can be arranged in an area of around 15 m², depending on the actual equipment configuration and site conditions.
The production line can be configured for different production requirements, with capacities from 5 to 100 tons per 24 hours. Common tube ice diameters include 22 mm, 28 mm, 35 mm, and 40 mm. Production capacity and ice size can be customized according to the customer's business and market requirements.
The automatic packing system can handle bag weights from approximately 2 to 5 kg per bag, with a packaging speed of about 2–3 bags per minute, depending on the configuration and operating conditions. Electrical specifications can be configured for 220V, 380V, or 440V, 50/60Hz, 3-phase power supplies.
As a direct manufacturer, Icemedal can provide equipment configuration, production, testing, and project support for bagged tube ice production lines. The standard installation period is around 2–3 days under suitable site conditions. CE-certified equipment and a 1-year warranty are available, and overseas engineers can be arranged for on-site installation and operator training when required.
Item | Specification |
Production Capacity | 5 tons/24H |
Tube Ice Diameter | 22 / 28 / 35 / 40 mm |
Tube Ice Length | 20–50 mm |
Cooling Type | Air Cooled / Water Cooled |
Refrigerant | R404A / R507A |
Compressor Brands | Bitzer / Hanbell / Refcomp |
Ice Contact Material | SUS304 Stainless Steel |
Automatic Packing | Weighing, Filling, Bagging & Sealing |
Bag Weight | 2–5 kg/bag |
Packaging Speed | 2–3 bags/min |
Power Supply | 220V / 380V / 400V, 50/60Hz, 3 Phase, customizable |
Installation Area | Approx. 15 m² for the 5 Ton/24H configuration |
Total Rated Power | Approx. 54 kW |
Recommended Power Capacity | Approx. 97 kW, considering equipment starting load |
Compressor Power | 21.6 kW |
Cooling Tower Power | 1.1 kW |
Pump Power | 4 kW |
Circulating Water Pump Power | 0.55 kW |
Gear Motor Power | 0.75 kW |
Hoist Power | 1.5 kW |
Packing Machine Power | 3 kW |
Finished Ice Conveyor Power | 0.04 kW |
Air Compressor Power | 15 kW |
Water Purification System Power | 1.65 kW |
Note: Actual equipment configuration, electrical requirements, installation layout, and power capacity may vary according to the selected configuration and site conditions. Water treatment can be included as an optional component. | |
The production line can be customized according to ice size, production capacity, bag weight, electrical conditions, available space, and other project requirements.
ICEMEDAL is an industrial ice machine manufacturer with an approximately 8,000 m² integrated office and production facility in Hunan, China. Manufacturing, assembly and inspection are managed through a documented 10-stage production process, including a 72-hour full-load complete-machine test before release.
