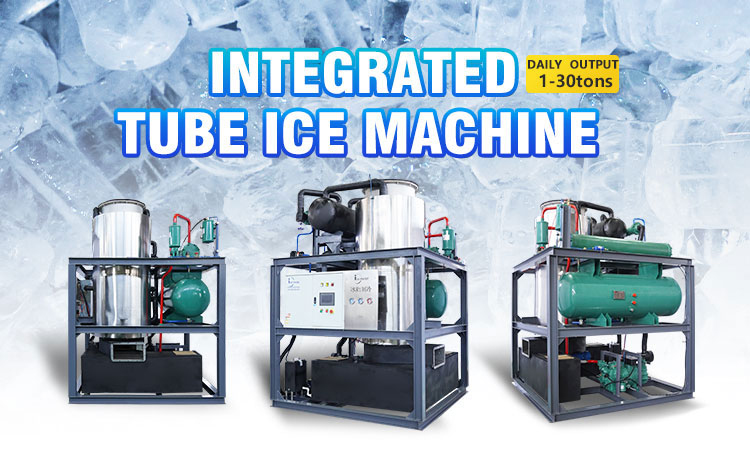

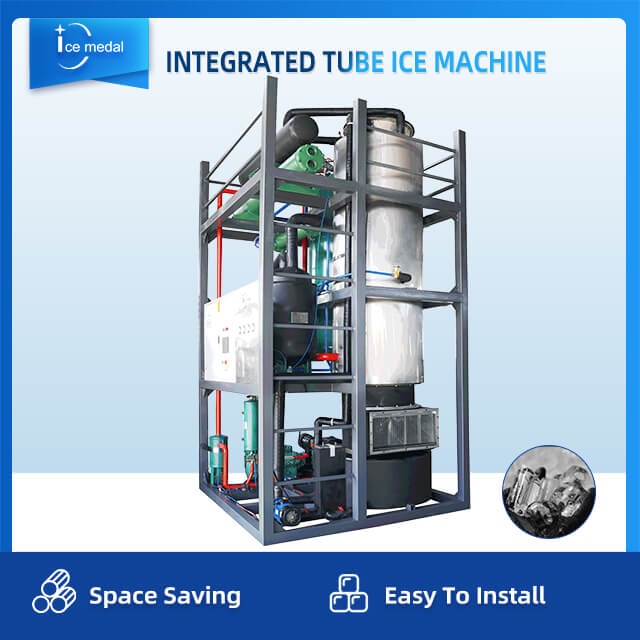

| Our high capacity tube ice machine produces 15 tons per day, designed as a complete integrated system for efficiency. We offer the ice machine at a competitive factory direct price. | |||||||||
IMT15
Icemedal

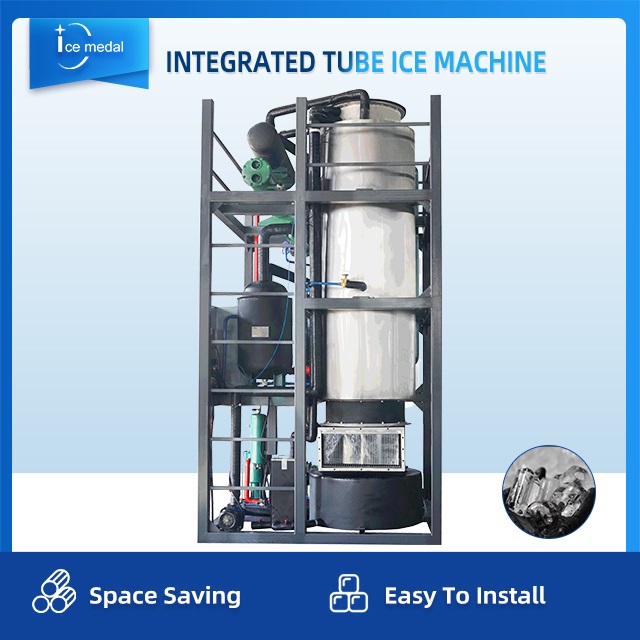

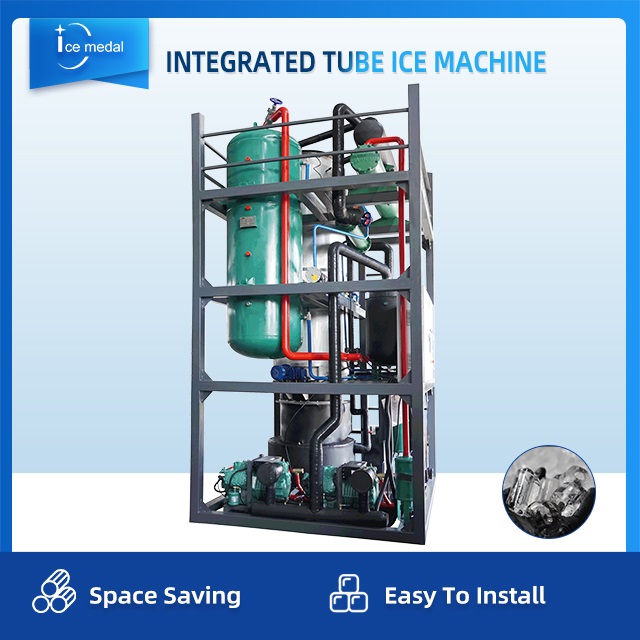

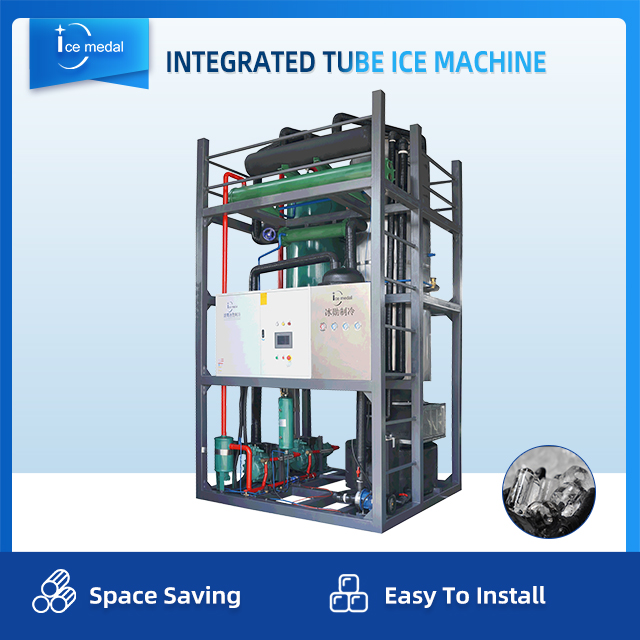

Icemedal 15 Tons Per Day ice tube machine is a high-efficiency industrial ice-making equipment designed for large-scale ice production,widely used in food processing,edible ice factory,aquatic product preservation,cold chain logistics and concrete cooling etc,. As a directly ice machine supplier, we can provide competitive prices, and cost savings for customers.
high quality ice:The newly upgraded the refrigeration system design, which makes the ice tubes are more uniform and less crushed ice.

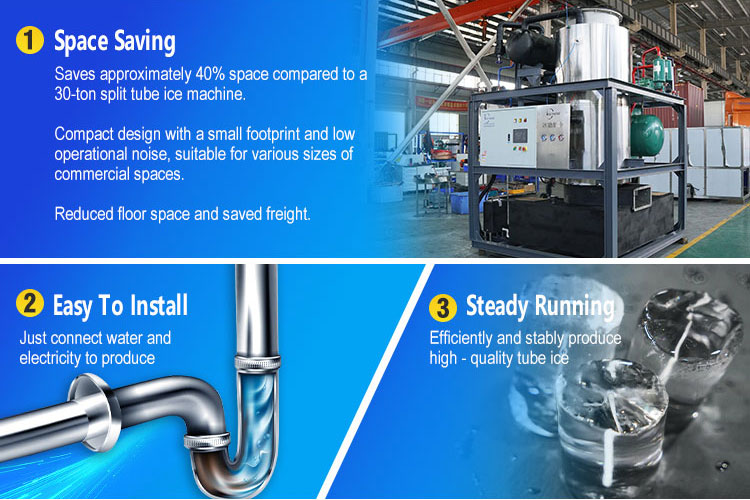

Space-saving：This compact 15 ton ice machine saves approximately 40% of space compared to a split tube ice machine,which can save shipping cost and installation space.
Easier to install:One frame design, and well-assembly before shipment, which makes the installation much easier after receiving.With just water and electricity connections, the 15 ton ice machine is ready to produce ice
Lower energy consumption：Utilizes new type of environmentally friendly refrigerants with lower energy consumption.

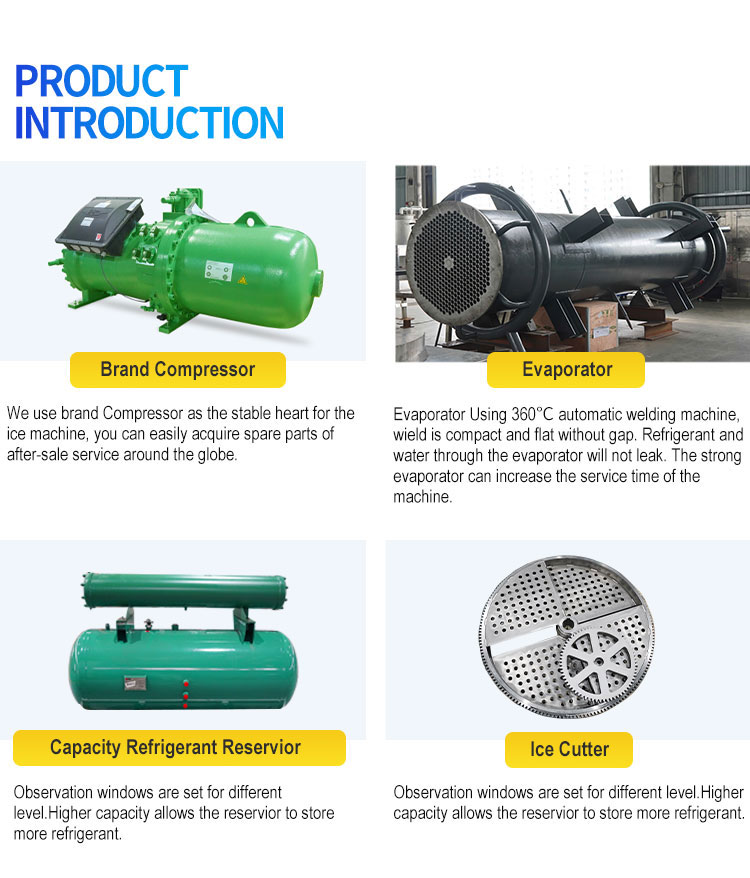

Reliable Power: Genuine Bitzer compressor for stable, long-life operation.
| Model | IMT5 | IMT10 | IMT15 | IMT20 | IMT30 |
| Ice Output | 5t/24hrs | 10t/24hrs | 15t/24hrs | 20t/24hrs | 30t/24hrs |

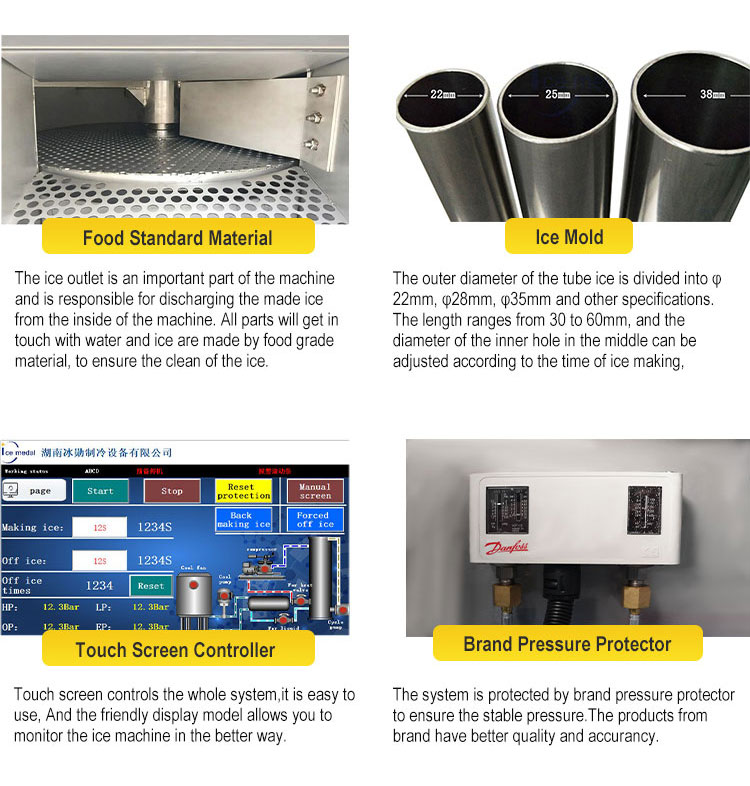

| lce tube diameter | Φ22,Φ29,Φ35,Φ42 is optional | Φ22,Φ29,Φ35,Φ42 is optional | Φ22,Φ29,Φ35,Φ42 is optional | Φ22,Φ29,Φ35,Φ42 is optional | Φ22,Φ29,Φ35,Φ42 is optional |
| Cooling Capacity | 52.5kw | 82kw | 123.9kw | 162.5kw | 247.8kw |
| Input Power | 20.95KW | 37.2KW | 51.9KW | 64.5KE | 106.8KW |
| Compressor input power | 17.3KW | 31.9KW | 42.5KW | 52.8KW | 102.6KW |
| lce cut reducer input power | 0.75kw | 0.75kw | 1.5KW | 1.5KW | 2.2KW |
| Water pump input | 1.1KW | 1.5KW | 2.2KW | 2.2KW | 4KW |
| Ice machine Weight | 1600KG | 2750KG | 4000KG | 4800KG | 6200KG |
| Ice Machine Size | 1800*1620*2450 | 2400*2250*3200 | 2400*2250*4200 | 2500*2250*5437 | 2500*2250*6090 |
Tube ice are widely used in food processing,ice factory,water factory,beverage industry,cold chain logistics,catering industry,commercial ice business and concrete cooling etc.,
