| Quantity: | |||||||||
|---|---|---|---|---|---|---|---|---|---|

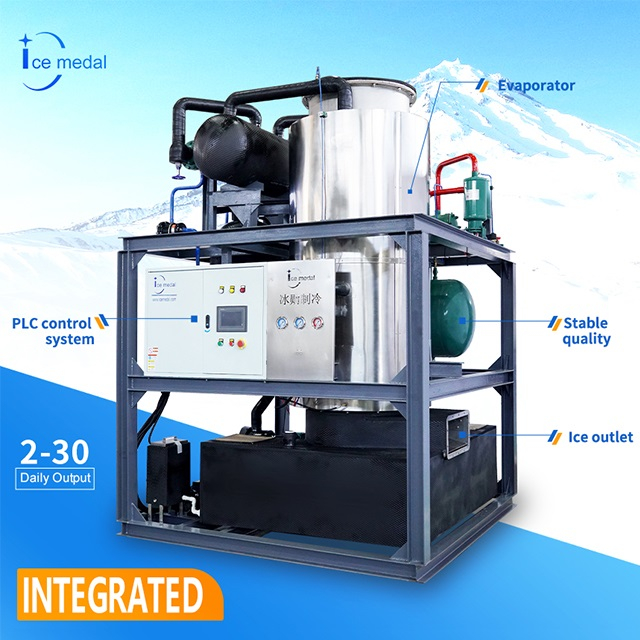

| The 20 tons integrated ice tube maker machine with its high-efficiency,advanced refrigeration technology and compact design for producing up to 20000kgs of tubular ice daily,Widely used in various industrial applications. MOQ:1 set Payment:T/T, Western Union, MoneyGram, L/C Lead Time:45 days after getting down payment Certification:CE Place of Origin:Hunan, China (Mainland) Shipping Port:As your request, China (Mainland) Warranty:1 year After-sales Service Provided:Engineers available to service overseas | |||||||||
IMT20
Icemedal

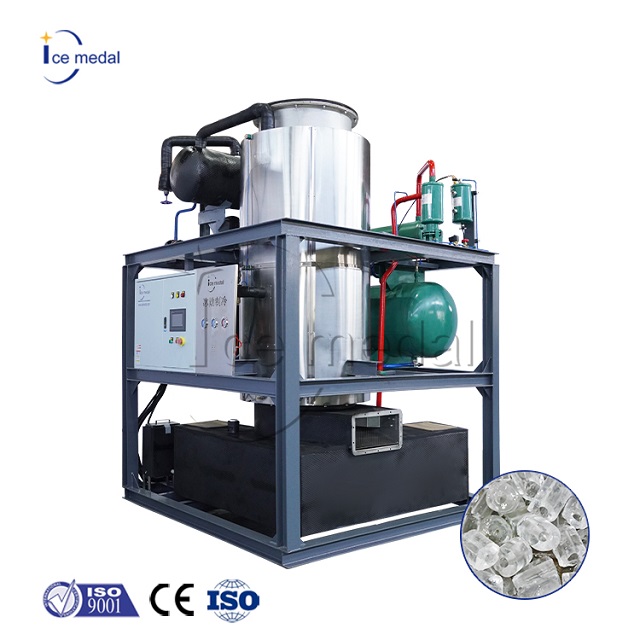

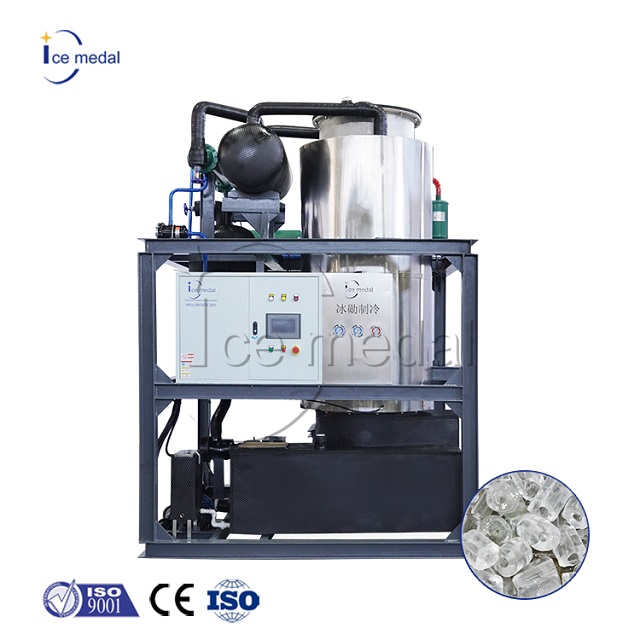

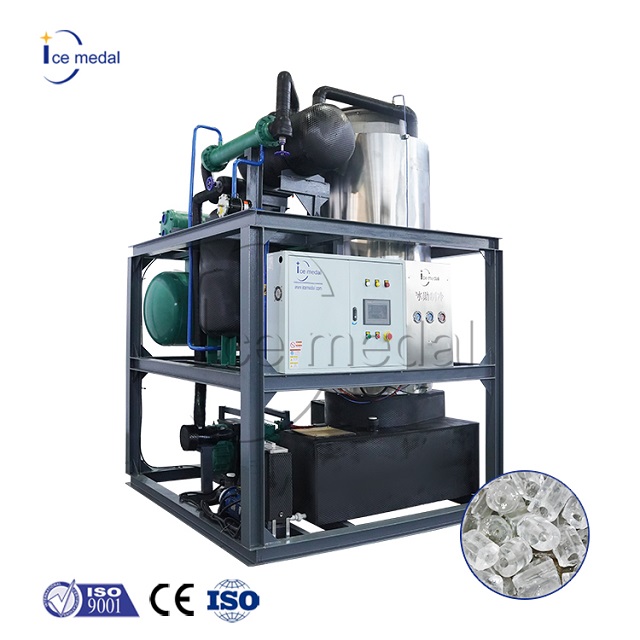

The 20 ton integrated ice tube machine with a daily production of 20 tons of ice, integrating refrigeration, ice making and ice storage. Compact structure, easy installation. Adopting high efficiency refrigeration system, energy saving and consumption reduction, the output of tube ice has regular shape, uniform thickness and good resistance to melting, which is widely used in food preservation, industrial cooling and other fields.

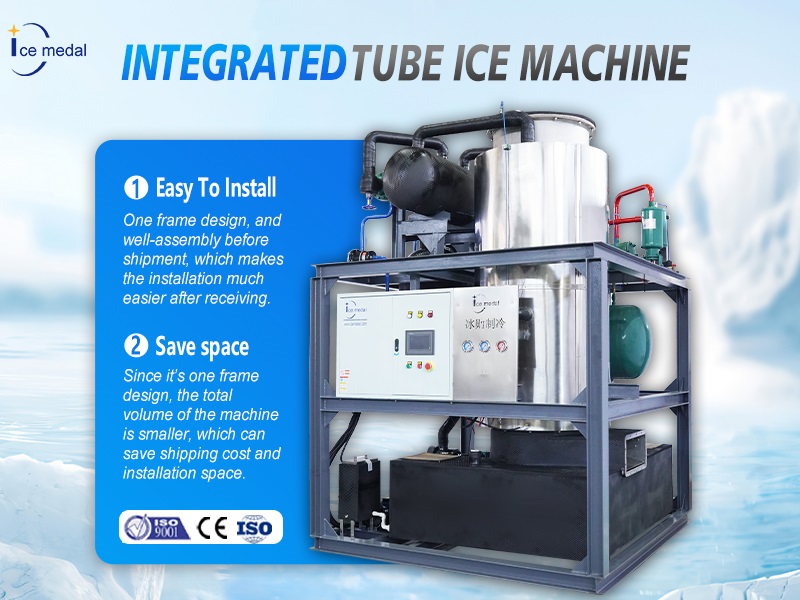

Since it's one frame design, the total volume of the machine is smaller, which can save shipping cost and installation space.
For our integrated tube ice machine, we have upgraded the refrigeration system design, which makes the ice tubes are more uniform and less crushed ice.
One frame design, and well-assembly before shipment, which makes the installation much easier after receiving.
Thanks to the upgrade, the whole refrigeration system becomes more effective, which makes the ice making and defrost progress becomes more energy-saving.

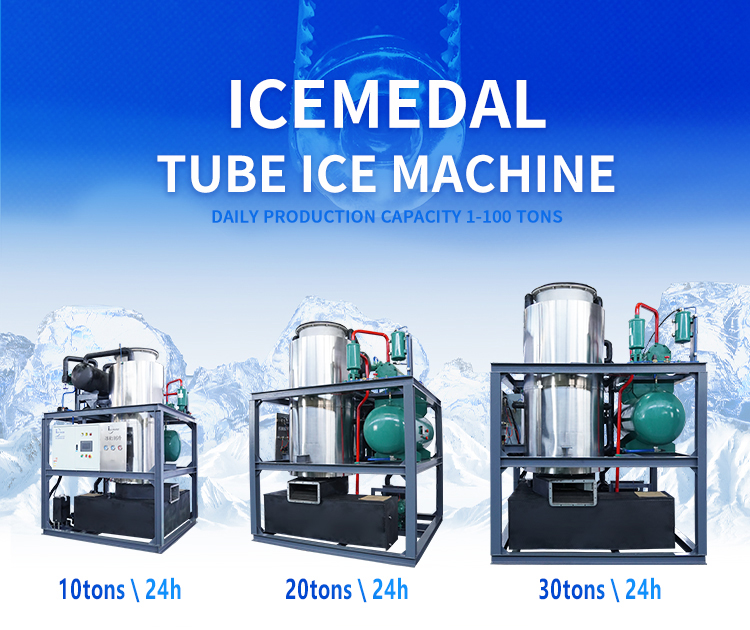

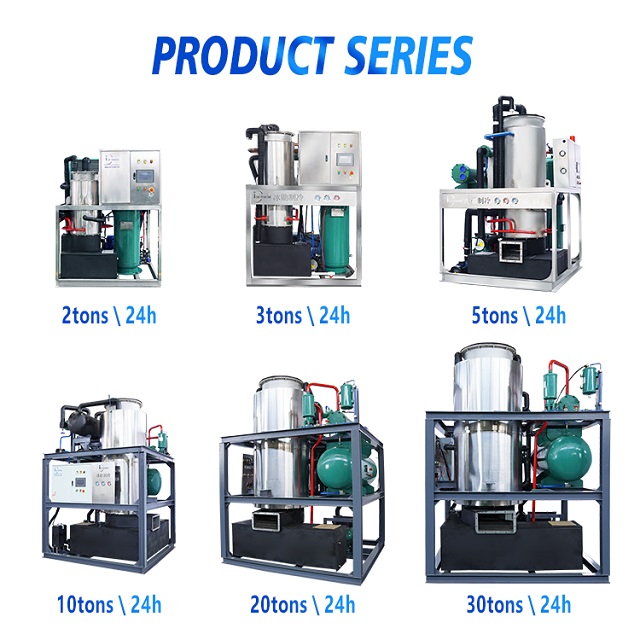

Mode | IMT5 | IMT10 | IMT15 | IMT20 | IMT30 |
| Ice output | 5t/24hrs | 10t/24hrs | 15t/24hrs | 20t/24hrs | 30t/24hrs |
| lce tube diameter | Φ22,Φ29,Φ35,Φ42 is optional | Φ22,Φ29,Φ35,Φ42 is optional | Φ22,Φ29,Φ35,Φ42 is optional | Φ22,Φ29,Φ35,Φ42 is optional | Φ22,Φ29,Φ35,Φ42 is optional |
| Cooling Capacity | 52.5kw | 82KW | 123.9KW | 165.2KW | 247.8KW |
| input power | 20.95kw | 37.2KW | 51.9KW | 64.5KW | 106.8KW |
| Compressor input power | 17.3KW | 31.9KW | 45.2KW | 52.8KW | 102.6KW |
| lce cut reducer input power | 0.75KW | 0.75KW | 1.5KW | 1.5KW | 2.2KW |
| Water pump input | 1.1KW | 1.5KW | 2.2KW | 2.2KW | 4KW |
| Ice machine Weight | 1600KG | 2750KG | 4000KG | 4800KG | 6200KG |
Ice Machine Size | 1800*1620*2450 | 2400*2250*3200 | 2400*2250*4200 | 2500*2250*5437 | 2500*2250*6090 |

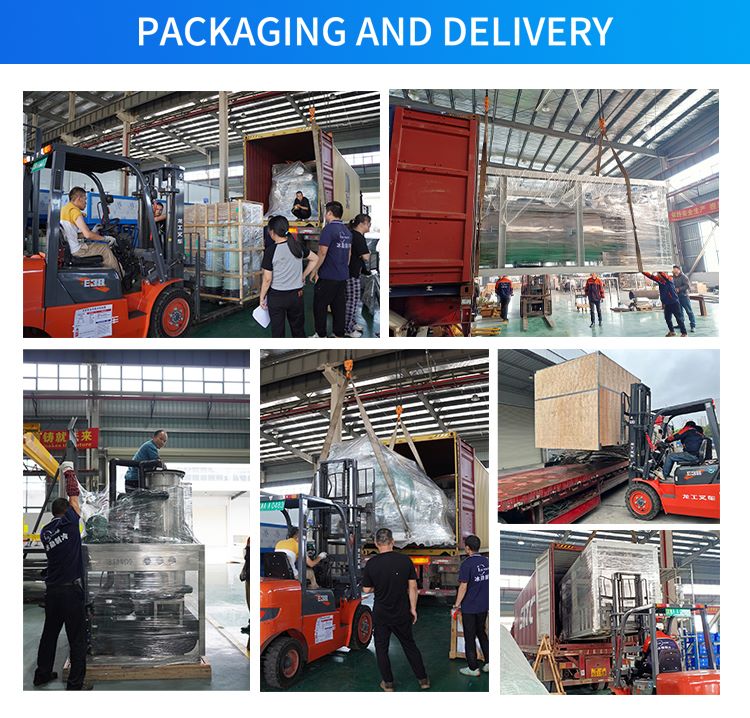

Use bubble wrap and wooden case to wrap the outside of the ice machine avoid scratches and wear.
The 20 ton integrated ice tube machine with a daily production of 20 tons of ice, integrating refrigeration, ice making and ice storage. Compact structure, easy installation. Adopting high efficiency refrigeration system, energy saving and consumption reduction, the output of tube ice has regular shape, uniform thickness and good resistance to melting, which is widely used in food preservation, industrial cooling and other fields.
Since it's one frame design, the total volume of the machine is smaller, which can save shipping cost and installation space.
For our integrated tube ice machine, we have upgraded the refrigeration system design, which makes the ice tubes are more uniform and less crushed ice.
One frame design, and well-assembly before shipment, which makes the installation much easier after receiving.
Thanks to the upgrade, the whole refrigeration system becomes more effective, which makes the ice making and defrost progress becomes more energy-saving.
Mode | IMT5 | IMT10 | IMT15 | IMT20 | IMT30 |
| Ice output | 5t/24hrs | 10t/24hrs | 15t/24hrs | 20t/24hrs | 30t/24hrs |
| lce tube diameter | Φ22,Φ29,Φ35,Φ42 is optional | Φ22,Φ29,Φ35,Φ42 is optional | Φ22,Φ29,Φ35,Φ42 is optional | Φ22,Φ29,Φ35,Φ42 is optional | Φ22,Φ29,Φ35,Φ42 is optional |
| Cooling Capacity | 52.5kw | 82KW | 123.9KW | 165.2KW | 247.8KW |
| input power | 20.95kw | 37.2KW | 51.9KW | 64.5KW | 106.8KW |
| Compressor input power | 17.3KW | 31.9KW | 45.2KW | 52.8KW | 102.6KW |
| lce cut reducer input power | 0.75KW | 0.75KW | 1.5KW | 1.5KW | 2.2KW |
| Water pump input | 1.1KW | 1.5KW | 2.2KW | 2.2KW | 4KW |
| Ice machine Weight | 1600KG | 2750KG | 4000KG | 4800KG | 6200KG |
Ice Machine Size | 1800*1620*2450 | 2400*2250*3200 | 2400*2250*4200 | 2500*2250*5437 | 2500*2250*6090 |
Use bubble wrap and wooden case to wrap the outside of the ice machine avoid scratches and wear.
