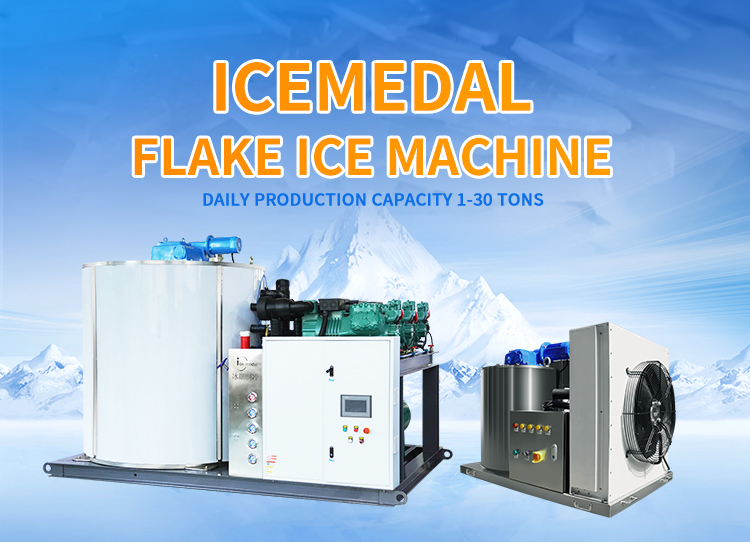

| Flake ice machines are industrial ice-making equipment designed to produce flake ice. they include freshwater flake ice machines and seawater flake ice machines, widely used in food and aquatic products processing, manufacturing, concrete cooling, pharmaceutical industry, poultry processing, fisheries, poultry meat processing, vegetable distribution and fresh keeping, chemical dyes and other places need ice. | |||||||||
IMF5
Icemedal

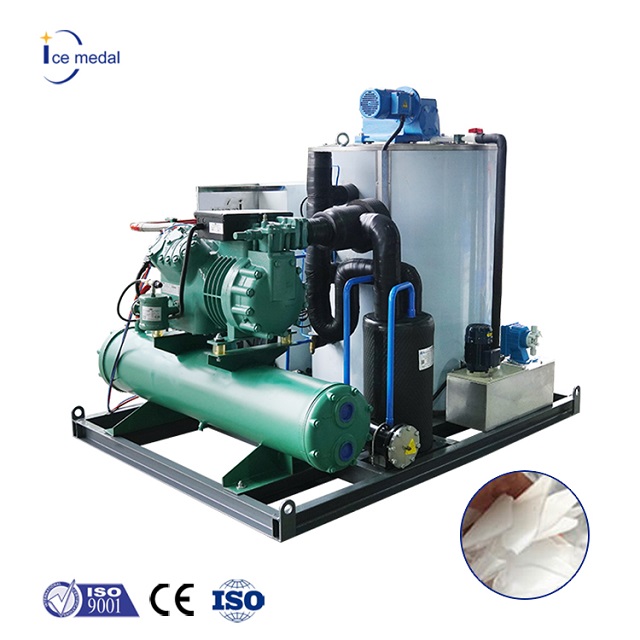

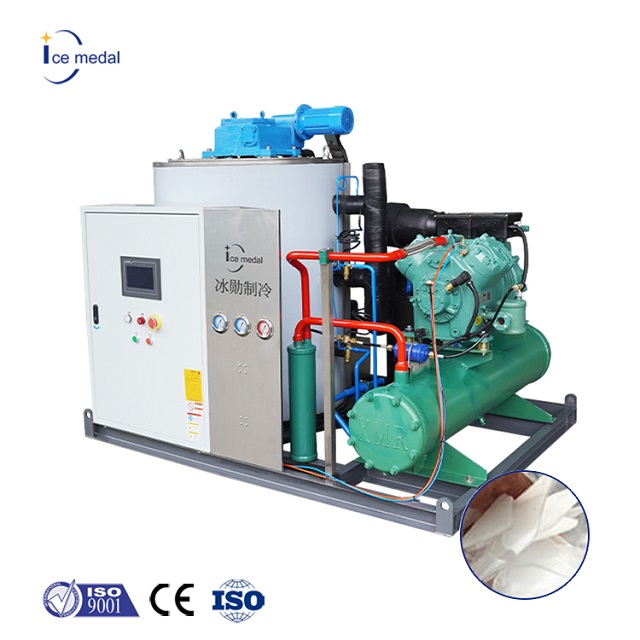

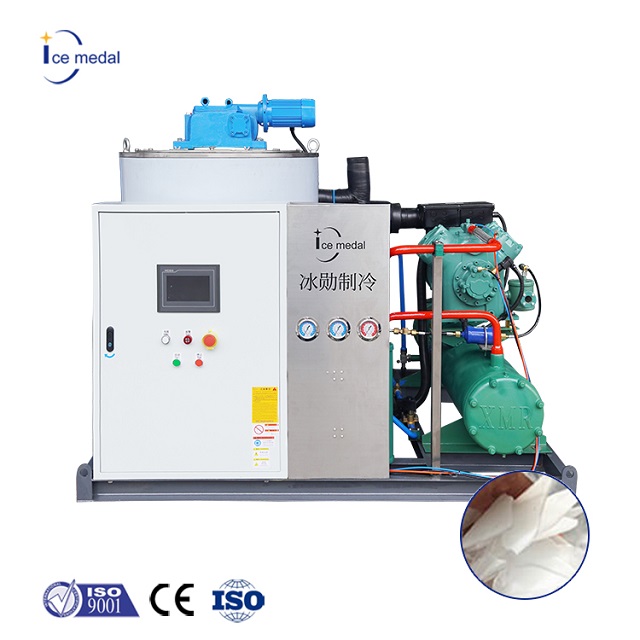

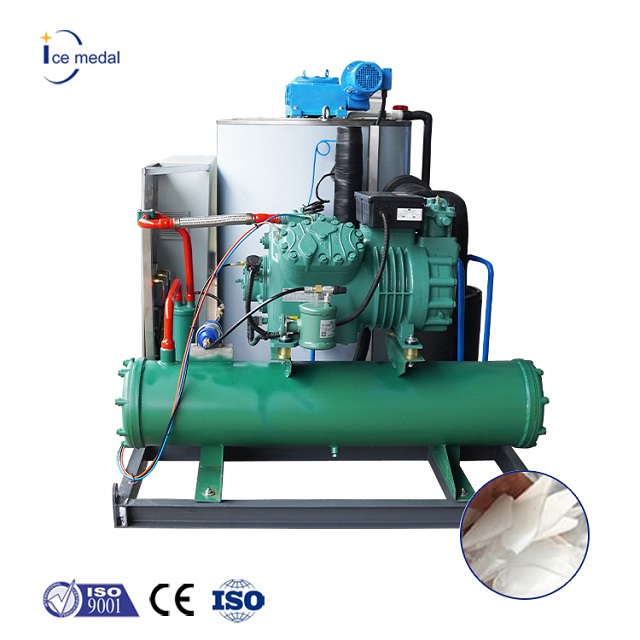

Ice flake machines are mainly used for ice making needs in food processing, ports and docks, fishery processing, slaughterhouses, concrete cooling and other places. The ice maker provided by Icemedal has a warranty period of 12 months and detailed parameters such as power, voltage, and size are complete. This ice machine is produced in China and shipped from Changsha, Hunan. It has a production capacity of up to 5000kg/24 hours and meets high demand scenarios. our ice machine with a specific purpose and efficient ice making. If you need an efficient and stable ice making equipment, please feel free to contact us for more information and customized pricing.
The Advantages of Ice Flake Machine
1.Daily capacity:5000kg in 24 hrs
2.The whole machine has passed CE certification and has high security
3.Spiral ice blade design ensures continuous welding and spraying without damaging the ice blade, ensuring that the evaporator is not easily deformed.
4. Reduce the mechanical resistance during the operation of the ice machine.
5. Smooth flow channel, low resistance, improved cooling effect, and reduced energy consumption.
6. The ice flakes are evenly thick, cover a large area, and dry without sticking.
7. The automatic ice machine adopts a vertical spiral blade ice cutting evaporator. During ice making, the water is evenly distributed to the inner wall of the ice bucket by the ice bucket and the internal water separation device, and quickly freezes. After the ice is formed, it is cut by the spiral ice blade and falls down.
Ice flakes have a wide range of applications in various fields, including food processing, supermarkets and seafood markets, vegetable preservation and transportation, marine fishing, medical fields, chemical production, etc. Ice flakes are also used in concrete cooling projects.
| 1-40 Tons Flake Ice Machine Parameter | |||||||
| Model | Daily output (T/24h) | Cooling Method | Compressor Power | Fan Power for Cooling Tower | Cooling Pump Power | Unit size (L*W*H mm) | Unit N.W. (kg) |
| IMF1 | 1 | Air | 7.44 kw | --- | --- | 1320*900*900 | 210 |
| IMF2 | 2 | Air | 10kw | --- | --- | 1750*1100*1050 | 360 |
| IMF3 | 3 | Water | 8.45kw | 0.37kw | 1.5kw | 1500*1250*1260 | 1000 |
| IMF5 | 5 | Water | 13.49kw | 0.75kw | 2.2kw | 1900*1500*1470 | 1100 |
| IMF10 | 10 | Water | 33.8kw | 1.5kw | 4kw | 2500*2000*1860 | 1500 |
| IMF15 | 15 | Water | 44.5kw | 1.5kw | 4kw | 3350*2150*1960 | 3200 |
| IMF20 | 20 | Water | 64kw | 1.5kw | 5.5kw | 3400*2220*2230 | 4200 |
| IMF25 | 25 | Water | 76.5kw | 2.2kw | 5.5kw | 3700*2250*2510 | 4600 |
| IMF30 | 30 | Water | 93.7kw | 2.2kw | 7.5kw | 4700*2250*2520 | 5000 |
| IMF40 | 40 | Water | 118kw | 2.2kw | 7.5kw | 5000*2300*2700 | 7500 |
| ♦ Compressor Brand: Bitzer / Hanbell; Refrigerant: Environmentally friendly refrigerant; ♦ Power Supply: Voltage 380V/3P/50Hz (For non-standard voltage, unit configuration needs to be calculated separately). ♦ Operating Conditions: T(water supply) : 20 ° C, T(ambient) : 32 ° C, T(condensing) : 38 ° C,T(evaporating)：-20℃. ♦ (Note: The actual ice production varies due to the influence of water supply temperature and ambient temperature.) ♦ (The final interpretation of the above metioned parameters is in Icesource, there will be no further notice, if there is any technical change.) | |||||||

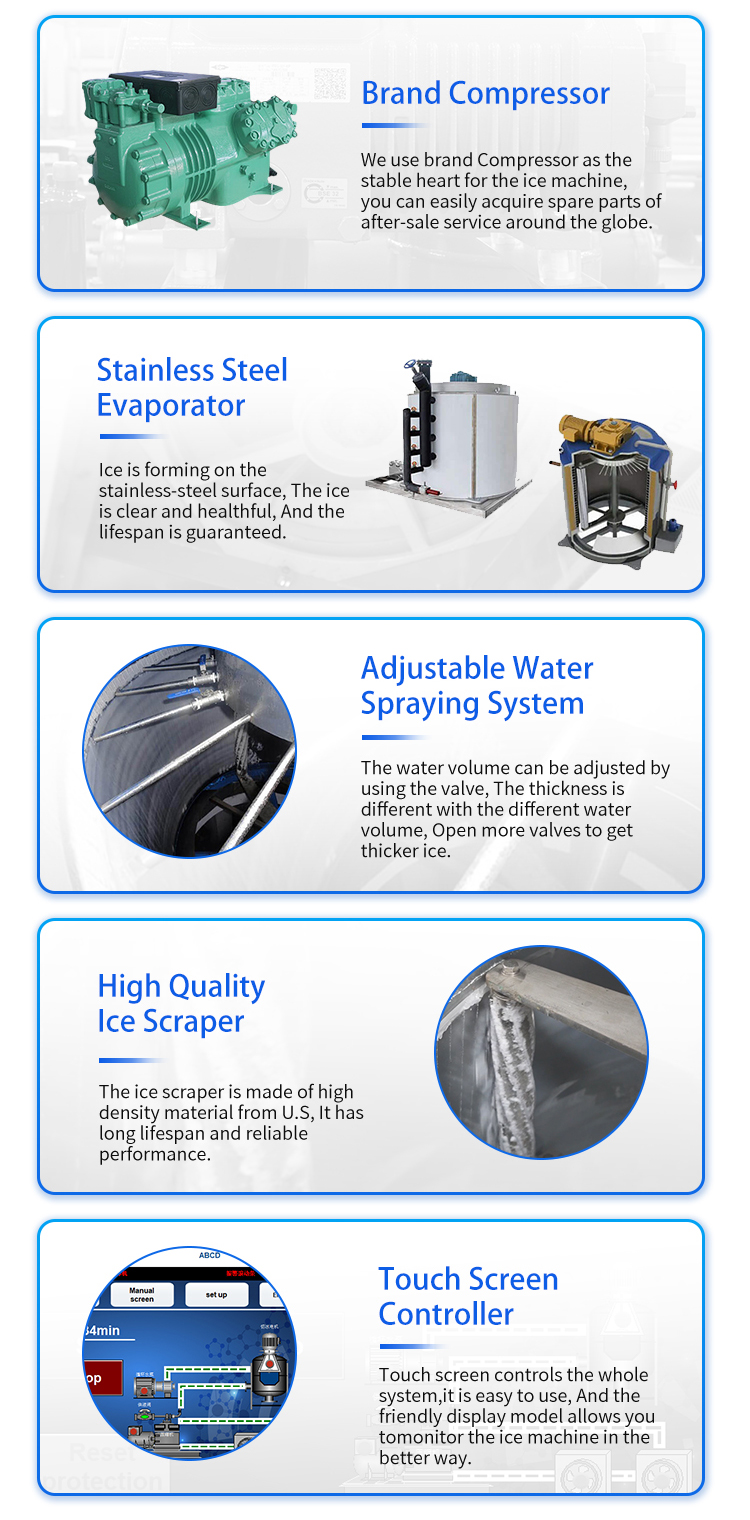

Ice Flake Machine Details
Ice flake machines are mainly used for ice making needs in food processing, ports and docks, fishery processing, slaughterhouses, concrete cooling and other places. The ice maker provided by Icemedal has a warranty period of 12 months and detailed parameters such as power, voltage, and size are complete. This ice machine is produced in China and shipped from Changsha, Hunan. It has a production capacity of up to 5000kg/24 hours and meets high demand scenarios. our ice machine with a specific purpose and efficient ice making. If you need an efficient and stable ice making equipment, please feel free to contact us for more information and customized pricing.
The Advantages of Ice Flake Machine
1.Daily capacity:5000kg in 24 hrs
2.The whole machine has passed CE certification and has high security
3.Spiral ice blade design ensures continuous welding and spraying without damaging the ice blade, ensuring that the evaporator is not easily deformed.
4. Reduce the mechanical resistance during the operation of the ice machine.
5. Smooth flow channel, low resistance, improved cooling effect, and reduced energy consumption.
6. The ice flakes are evenly thick, cover a large area, and dry without sticking.
7. The automatic ice machine adopts a vertical spiral blade ice cutting evaporator. During ice making, the water is evenly distributed to the inner wall of the ice bucket by the ice bucket and the internal water separation device, and quickly freezes. After the ice is formed, it is cut by the spiral ice blade and falls down.
Ice flakes have a wide range of applications in various fields, including food processing, supermarkets and seafood markets, vegetable preservation and transportation, marine fishing, medical fields, chemical production, etc. Ice flakes are also used in concrete cooling projects.
| 1-40 Tons Flake Ice Machine Parameter | |||||||
| Model | Daily output (T/24h) | Cooling Method | Compressor Power | Fan Power for Cooling Tower | Cooling Pump Power | Unit size (L*W*H mm) | Unit N.W. (kg) |
| IMF1 | 1 | Air | 7.44 kw | --- | --- | 1320*900*900 | 210 |
| IMF2 | 2 | Air | 10kw | --- | --- | 1750*1100*1050 | 360 |
| IMF3 | 3 | Water | 8.45kw | 0.37kw | 1.5kw | 1500*1250*1260 | 1000 |
| IMF5 | 5 | Water | 13.49kw | 0.75kw | 2.2kw | 1900*1500*1470 | 1100 |
| IMF10 | 10 | Water | 33.8kw | 1.5kw | 4kw | 2500*2000*1860 | 1500 |
| IMF15 | 15 | Water | 44.5kw | 1.5kw | 4kw | 3350*2150*1960 | 3200 |
| IMF20 | 20 | Water | 64kw | 1.5kw | 5.5kw | 3400*2220*2230 | 4200 |
| IMF25 | 25 | Water | 76.5kw | 2.2kw | 5.5kw | 3700*2250*2510 | 4600 |
| IMF30 | 30 | Water | 93.7kw | 2.2kw | 7.5kw | 4700*2250*2520 | 5000 |
| IMF40 | 40 | Water | 118kw | 2.2kw | 7.5kw | 5000*2300*2700 | 7500 |
| ♦ Compressor Brand: Bitzer / Hanbell; Refrigerant: Environmentally friendly refrigerant; ♦ Power Supply: Voltage 380V/3P/50Hz (For non-standard voltage, unit configuration needs to be calculated separately). ♦ Operating Conditions: T(water supply) : 20 ° C, T(ambient) : 32 ° C, T(condensing) : 38 ° C,T(evaporating)：-20℃. ♦ (Note: The actual ice production varies due to the influence of water supply temperature and ambient temperature.) ♦ (The final interpretation of the above metioned parameters is in Icesource, there will be no further notice, if there is any technical change.) | |||||||
