Icemedal 5 Tons Industrial Crystal Ice Cube Making Machine

Availability:
Quantity:
  • Certification:CE
  • MOQ:1 set
  • Warranty:12 months
  • Payment:T/T, Western Union, Money Gram, L/C
  • Lead time:40 days after getting deposit
  • After-sales Service Provided:Engineers available to service overseas

  • IMC5

  • ICEMEDAL

Icemedal 5 tons edible ice cube factory with ice cube making machine

The ice cube machine is named for the square shape of the ice cubes it produces. It is a fully automatic ice machine that adopts four technologies: self-adjustment of ice cube thickness, self-adaptation of ambient temperature, automatic ice replenishment and auxiliary condensing pressure stabilization system.


cube ice machine structure


Product Parameters


                         5 Tons Per Day Large Capacity Cube Ice Machine For Hotels and Restaurants Parameters
Model Parameters
IMC1 IMC2 IMC3 IMC5
IMC10
Daily Output (T/24h)
1 2 3 5 10
Compressor Power
4.34kw
7.88kw 10.58kw
21kw 42kw
Fan Power for Cooling Tower
0.18kw
0.37kw 0.56kw
0.75kw 1.5kw
Cooling Pump Power 1.1kw
1.5kw 1.5kw 2.2kw
4kw


Unit Size

L(mm)
1800
1630
1980
2890
5730
W(mm) 1000 1600 1630 1780 1780
H(mm) 1700 1706 1860
1860
2130
Unit.N.W(kg)
800 1000 1200 1600 3000

1. Size of cube ice: 22*22*22 mm ; 29*29*22 mm ; 38*38*22 mm.

2. Brand Compressor; refrigerant: R22/ R404A;Cooling Method: Water Cooling / Air Cooling.

3. Power Supply: Voltage 380V/3P/50Hz (For non-standard voltage, unit configuration needs to be calculated separately).
4. Operating Conditions: T(water supply):20 ℃, T(ambient):32 ℃, T(condensing): 40 ℃, T(evaporating):-10 ℃.
5. Note: The actual ice production varies due to the influence of the water supply temperature and ambient temperature.
6. The final interpretation of the above mentioned parameter is in Icemedal, there will be further notice, if there any technical change.


Product Features:

  • Automatic operation :PLC controlled,be able to automatically adjust the thickness of ice,forming ice,harvesting ice,and add water.

  • Need less personnel,single person can just handle it very well,save money for you.

  • The ice machine is made of stainless steel with long life.

  • Automatic water circulation cleaning system

  • Meeting international safety and health standards in manufacturing

  • The touch screen is used as the control pannel to realize intuitive operation indication,intuitive fault indication,intuitive parameter setting,parameter implementation record,and automatic switch on and off at night.

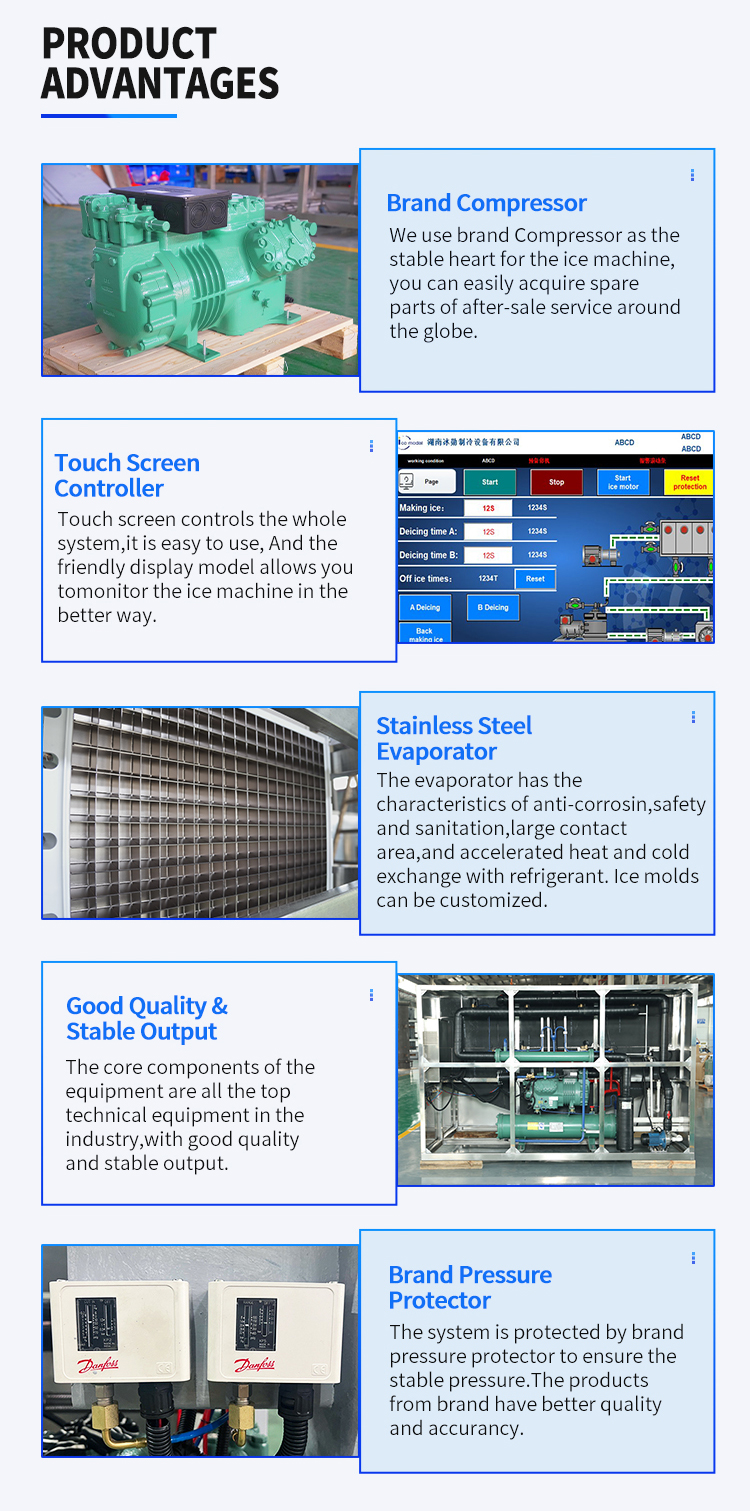

    cube ice machine ice molds

cube ice machine PLC

cube ice machine compressor

cube ice machine core componments

cube ice making machine pressure protector


Product Application:

Cube ice are widely used in bars, hotels, canteens, banquet hall, western restaurant, fast food restaurant, convenience store, restaurants, convenience stores, cold drinks shops and other places where ice is needed. The size of the ice can be adjusted to meet the different needs of customers for ice. and so on.

cube ice application


FAQ:
1.Q: Are you add refrigerant in the ice machine?
A: Yes, our equipment is filled with refrigerant, and it can be used as long as it is connected to electricity and water.
2.Q: Do you test the ice machine in your factory?
A: Yes, Our equipment will be tested twice before being put into use. factory inspection and operation test after installation at the buyer's destination to ensure that we provide the best service to customers.in addition, our company can provide a complete set of solutions for the actual needs of customers. Creating value and fulfilling customers is our principle.

3.Q: All your ice machine is based on 380V 5OHZ power requirement?

 Do you have the right power requirement for aboard?: Such as 440V60HZor 220V three phase that suitable for America?

A: Our ice machine and power, voltage can suitable for your country, please make the power requirement be clear in your order.
4.Q: Whats the deliver time of your machine?

A: 1~5ton, 30 days since the deposit arrived at our account. 5~20 ton, 45 days.(based on the electricity 380V/50Hz/3p. some special design lead time will be longer
