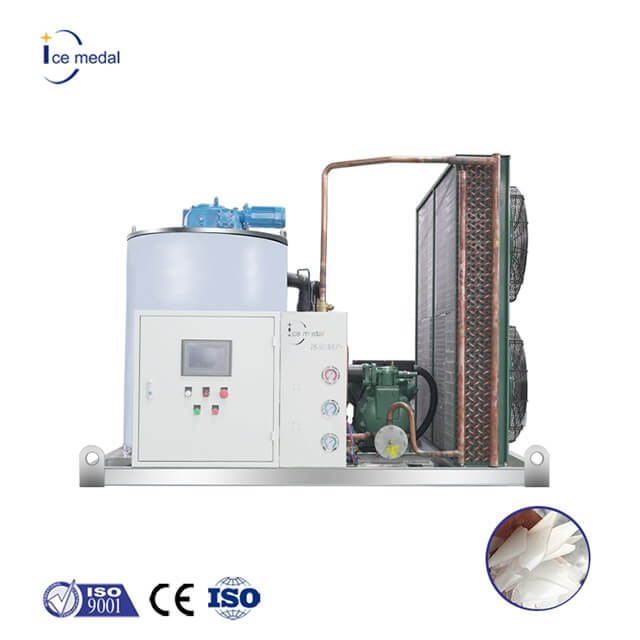

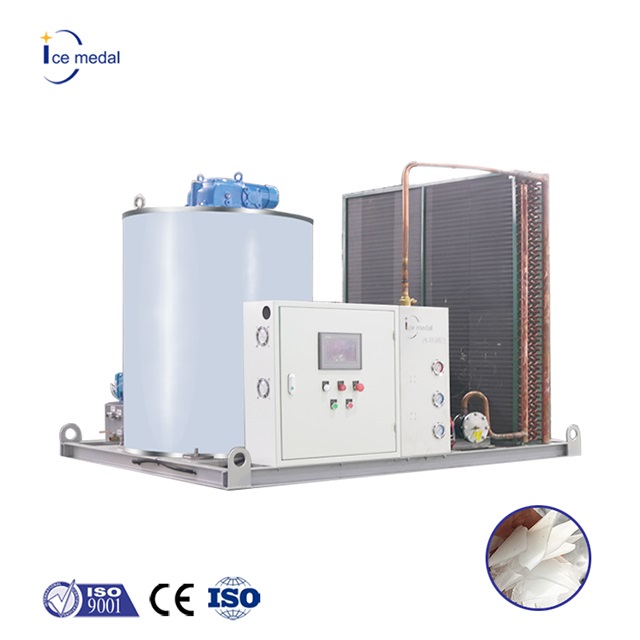

Flake Ice Machine for Seafood Processing is a specialized equipment for fast freezing of water into flake ice, mainly used for seafood preservation and cooling.
| |||||||||
IMF5
Icemedal

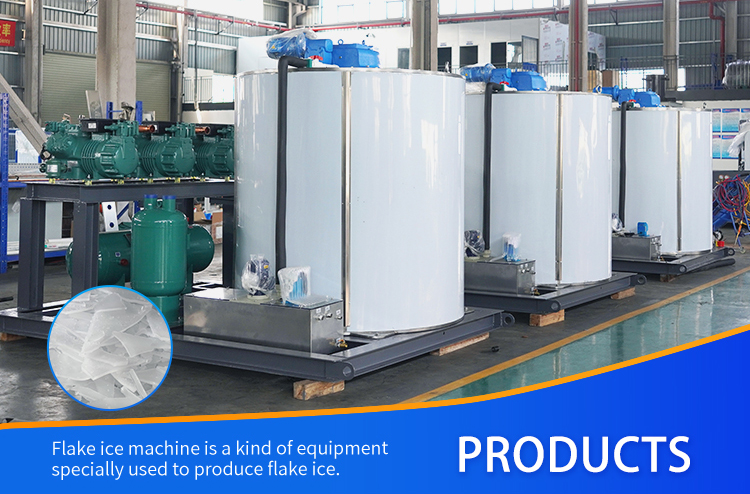

Flake ice machine is a kind of ice making machine. According to the water source, it can be divided into freshwater flake ice machine and seawater flake ice machine. Generally, it is an industrial ice making machine. Flake ice is a thin, dry and loose white ice with a thickness ranging from 1.0 mm to 2.5 mm. The flake shape is irregular and the diameter is about 12 to 45 mm. Flake ice has no sharp edges and will not pierce the frozen objects. It can enter the gap between the cooled objects, reduce heat exchange, maintain the temperature of the ice, and has a good moisturizing effect. Flake ice has excellent refrigeration effect, large cooling capacity and rapidity. Therefore, it is mainly used in various large-scale refrigeration facilities, food quick freezing, concrete cooling, etc.
Product Features
Efficient preservation: Flake ice can quickly lower the temperature of seafood to maintain its freshness and taste.
Easy to use: The automated operation design simplifies the ice-making process and reduces manual intervention.
Hygiene and safety: Made of food-grade materials to ensure safety when in contact with seafood.
Flexible adjustment: The thickness of the ice flakes can be adjusted as needed to meet the processing needs of seafood of different types and sizes.
Parameters
| 1-30 Ton Flake Ice Machine Parameters | |||||||
| Model | Daily output (T/24h) | Cooling Method | Compressor Power | Fan Power for Cooling Tower | Cooling Pump Power | Unit size (L*W*H mm) | Unit N.W. (kg) |
| IMF1 | 1 | Air | 7.44kw | / | / | 1320*900*900 | 210 |
| IMF2 | 2 | Air | 10kw | / | / | 1750*1100*1050 | 360 |
| IMF3 | 3 | Air/Water | 8.45kw | 0.37kw | 1.5kw | 1500*1250*1260 | 1000 |
| IMF5 | 5 | Air/Water | 13.49kw | 0.75kw | 2.2kw | 1900*1500*1470 | 1100 |
| IMF10 | 10 | Air/Water | 33.8kw | 1.5kw | 4kw | 2500*2000*1860 | 1500 |
| IMF15 | 15 | Air/Water | 44.5kw | 1.5kw | 4kw | 3350*2150*1960 | 3200 |
| IMF20 | 20 | Air/Water | 64kw | 1.5kw | 5.5kw | 3400*2220*2230 | 4200 |
| IMF30 | 30 | Air/Water | 76.5kw | 2.2kw | 7.5kw | 4700*2250*2520 | 5000 |

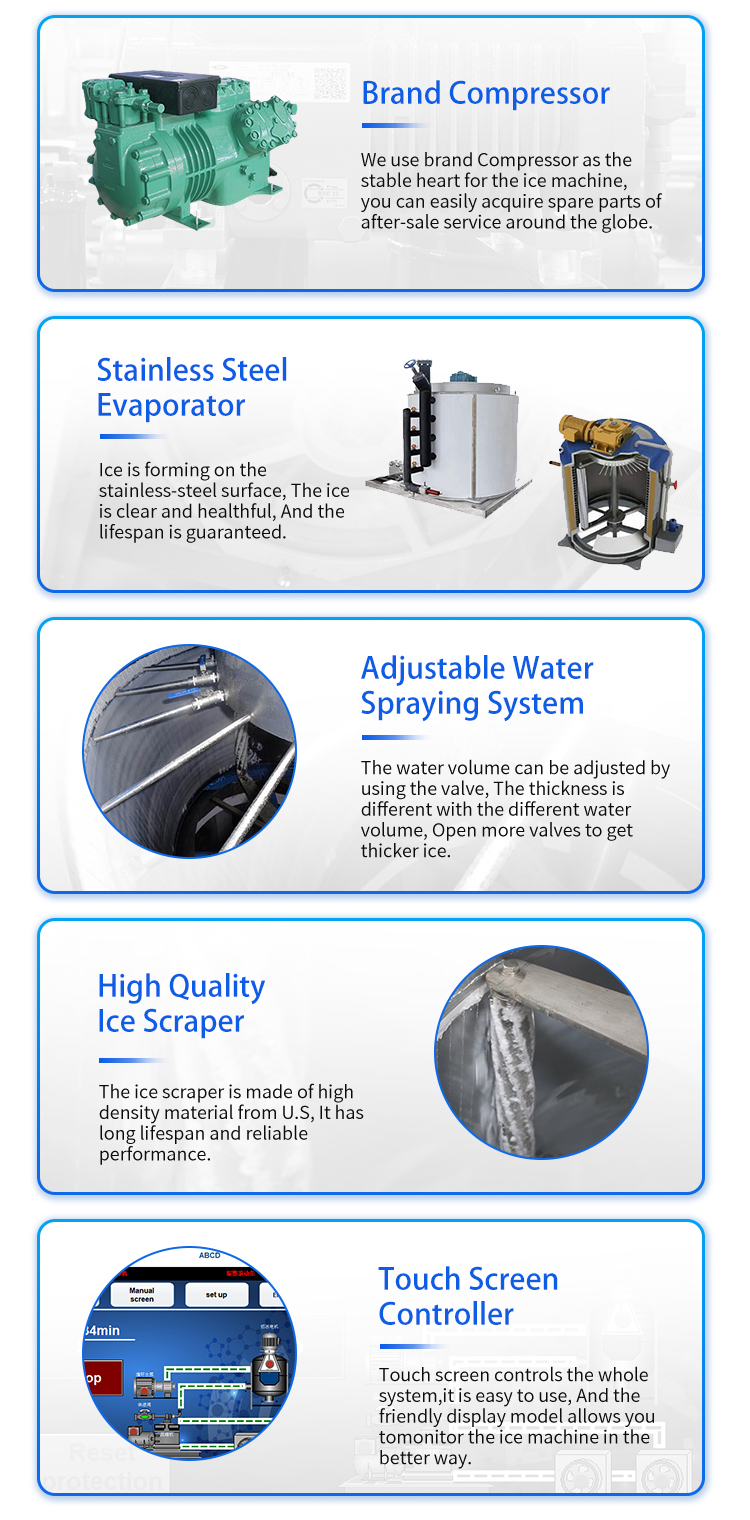

Product Details
Ice machine evaporator adopts three-dimensional design, that is, internal scraping type ice making, the evaporator does not move, ice knife in the inner wall rotating scraping ice. This design reduces wear and provides high tightness.
SUS 304 stainless steel spiral ice blade, small resistance, low loss, no noise, uniform ice.
Refrigeration unit accessories are imported to ensure barrier-free and efficient operation.
Brand Compressor
Flake Ice Machine Application
Flake ice are widely used in food and aquatic products processing, dock fishing boats, tunnel cooling, concrete mixing chemical dyes,
fisheries, poultry meat processing, vegetable distribution and fresh keeping.

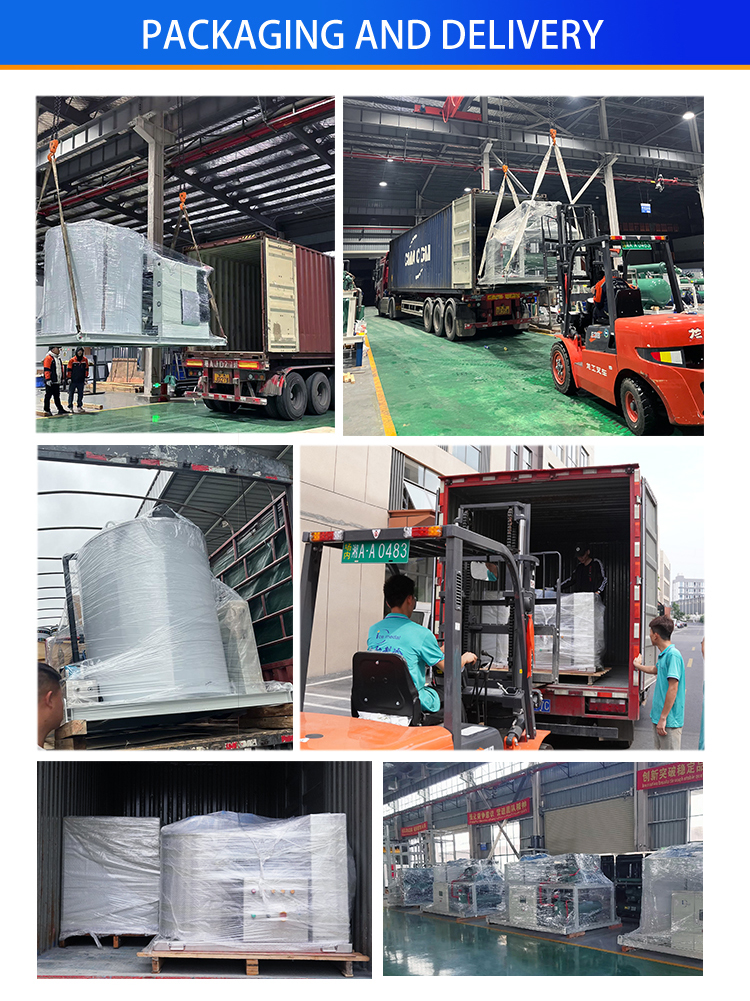

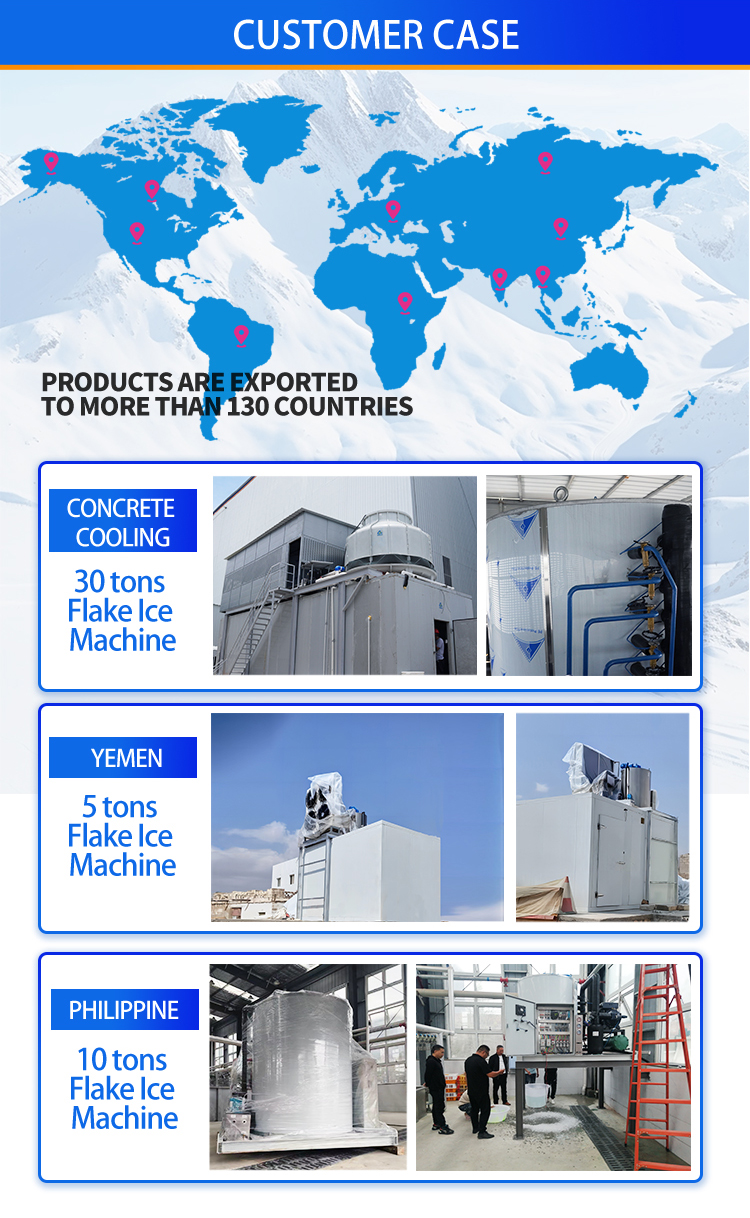

Product Packaging & Case
Flake ice machine is a kind of ice making machine. According to the water source, it can be divided into freshwater flake ice machine and seawater flake ice machine. Generally, it is an industrial ice making machine. Flake ice is a thin, dry and loose white ice with a thickness ranging from 1.0 mm to 2.5 mm. The flake shape is irregular and the diameter is about 12 to 45 mm. Flake ice has no sharp edges and will not pierce the frozen objects. It can enter the gap between the cooled objects, reduce heat exchange, maintain the temperature of the ice, and has a good moisturizing effect. Flake ice has excellent refrigeration effect, large cooling capacity and rapidity. Therefore, it is mainly used in various large-scale refrigeration facilities, food quick freezing, concrete cooling, etc.
Product Features
Efficient preservation: Flake ice can quickly lower the temperature of seafood to maintain its freshness and taste.
Easy to use: The automated operation design simplifies the ice-making process and reduces manual intervention.
Hygiene and safety: Made of food-grade materials to ensure safety when in contact with seafood.
Flexible adjustment: The thickness of the ice flakes can be adjusted as needed to meet the processing needs of seafood of different types and sizes.
Parameters
| 1-30 Ton Flake Ice Machine Parameters | |||||||
| Model | Daily output (T/24h) | Cooling Method | Compressor Power | Fan Power for Cooling Tower | Cooling Pump Power | Unit size (L*W*H mm) | Unit N.W. (kg) |
| IMF1 | 1 | Air | 7.44kw | / | / | 1320*900*900 | 210 |
| IMF2 | 2 | Air | 10kw | / | / | 1750*1100*1050 | 360 |
| IMF3 | 3 | Air/Water | 8.45kw | 0.37kw | 1.5kw | 1500*1250*1260 | 1000 |
| IMF5 | 5 | Air/Water | 13.49kw | 0.75kw | 2.2kw | 1900*1500*1470 | 1100 |
| IMF10 | 10 | Air/Water | 33.8kw | 1.5kw | 4kw | 2500*2000*1860 | 1500 |
| IMF15 | 15 | Air/Water | 44.5kw | 1.5kw | 4kw | 3350*2150*1960 | 3200 |
| IMF20 | 20 | Air/Water | 64kw | 1.5kw | 5.5kw | 3400*2220*2230 | 4200 |
| IMF30 | 30 | Air/Water | 76.5kw | 2.2kw | 7.5kw | 4700*2250*2520 | 5000 |
Product Details
Ice machine evaporator adopts three-dimensional design, that is, internal scraping type ice making, the evaporator does not move, ice knife in the inner wall rotating scraping ice. This design reduces wear and provides high tightness.
SUS 304 stainless steel spiral ice blade, small resistance, low loss, no noise, uniform ice.
Refrigeration unit accessories are imported to ensure barrier-free and efficient operation.
Brand Compressor
Flake Ice Machine Application
Flake ice are widely used in food and aquatic products processing, dock fishing boats, tunnel cooling, concrete mixing chemical dyes,
fisheries, poultry meat processing, vegetable distribution and fresh keeping.
Product Packaging & Case
