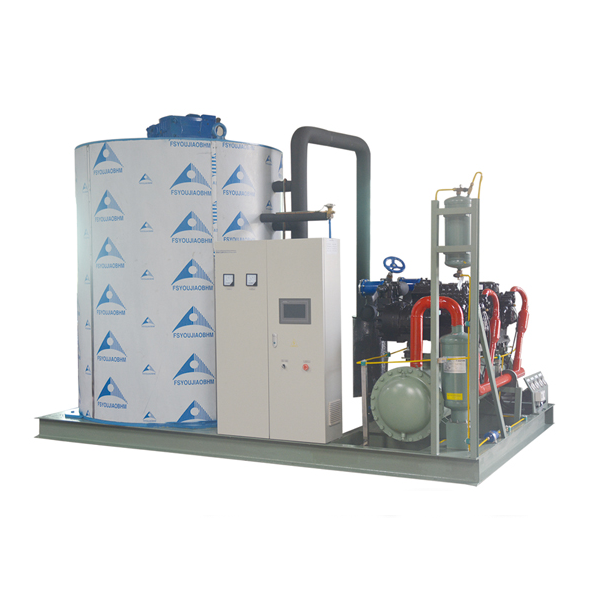

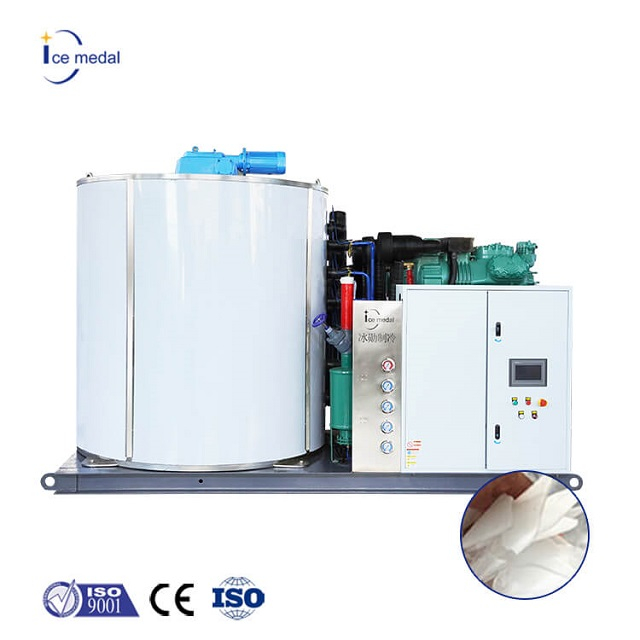

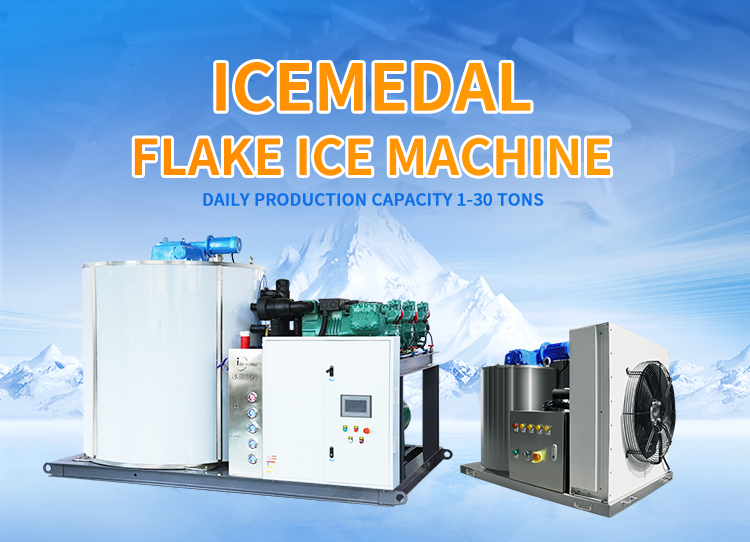

Icemedal IMF20 is a 20 tons per day industrial flake ice machine designed for concrete cooling, construction projects, seafood processing, food preservation, and other industrial applications. It produces thin, dry flake ice with a large surface area, allowing fast and efficient heat absorption during concrete mixing and temperature control.
| |||||||||
IMF20
Icemedal
With a 20T/24H ice production capacity, the 20 ton flake ice machine is suitable for ready-mix concrete plants, large construction projects, dams, bridges, tunnels, and other engineering applications where reliable concrete temperature control is required. The machine can provide continuous flake ice production to help reduce the temperature of concrete mixtures, especially in hot climates and large-scale pouring projects.

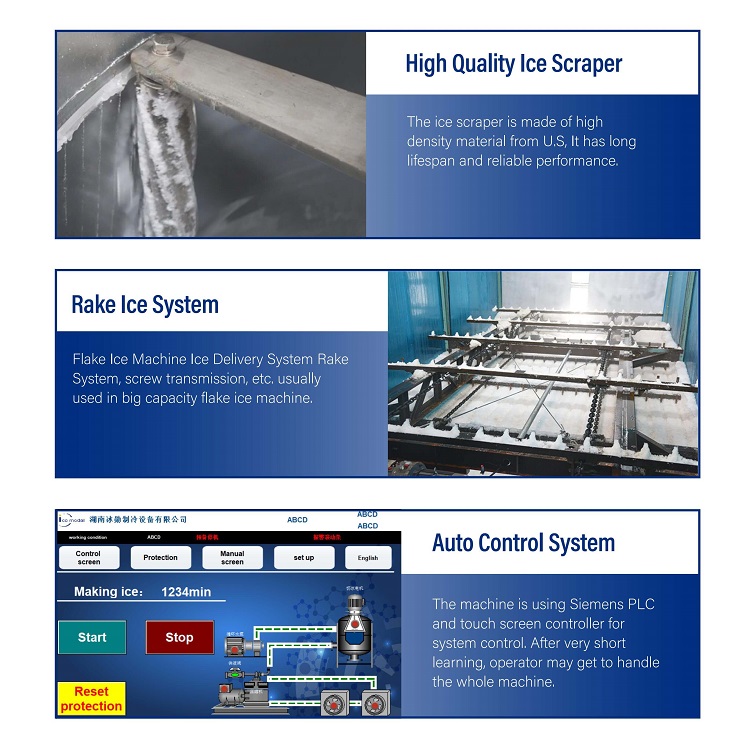

1. Intelligent electronic control panel, easy to use: one-touch start of automatic ice storage mode, automatically stops when ice storage reaches the maximum
One-touch start of ice dispensing mode, automatically stops after ice dispensing is completed, and the ice door returns to its original position.

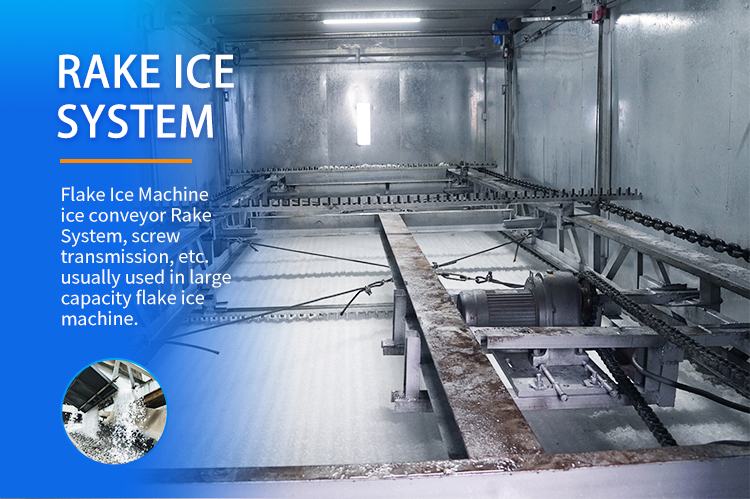

2. Modular design, easy maintenance: The ice rake adopts 3D modeling modular design, which is easy to assemble and maintain;Parts are processed by CNC machine tools with high precision to avoid welding defects.
3. Imported bearings, long service life: Using high-precision bearings imported from Japan, the mechanism runs smoothly and has a long service life
4. Real-time monitoring, convenient management: Monitoring equipment is installed in the cold storage, which can view the working status of the equipment in real time, convenient maintenance management and safe production
5.Thin, dry, loose white ice. The plane shape is irregular, the thickness is 1.5 mm-2.2 mm, the diameter is about 12-45 mm.

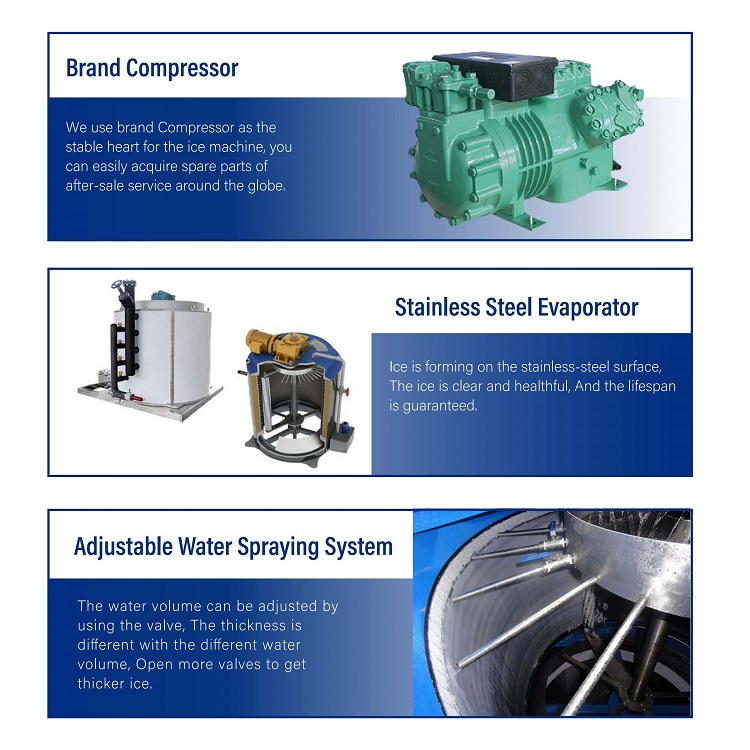

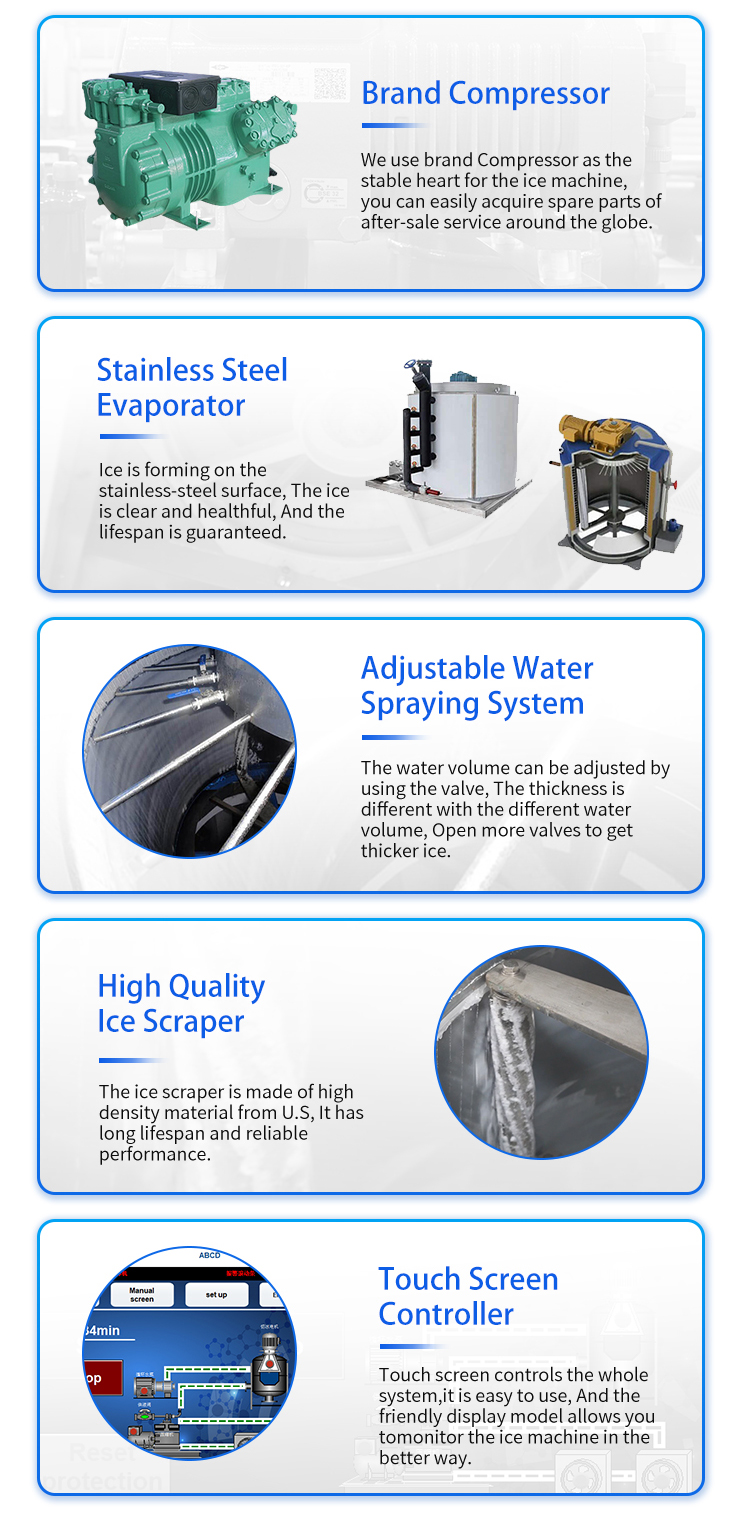

● Ice machine evaporator adopts three-dimensional design, that is, internal scraping type ice making, the evaporator does not move, ice knife in the inner wall rotating scraping ice. This design reduces wear and provides high tightness.
● SUS 304 stainless steel spiral ice blade, small resistance, low loss, no noise, uniform ice.
● Refrigeration unit accessories are imported to ensure barrier-free and efficient operation.
● Brand Compressor.
| IMF20 20Tons Flake Ice Machine Parameters | ||
| Name | Unit | Parameter |
Hanbell Compressor Parameter | Model | RC2-340B |
| Cooling Capacity(kW) | 151.4 | |
| Power(kW) | 64 | |
Condenser | Model | WN-105 |
Heat Exchange(kW) | 324.6 | |
| Condensing Temperature | Degree Celsius(℃) | 40 |
Evaporating Temperature | Degree Celsius(℃) | -20 |
| Ambient Temperature | Degree Celsius(℃) | 32 |
| Water Temperature | Degree Celsius(℃) | 20 |
Refrigerant | R507 | |
Voltage | V/P/HZ | 380/3/50 |
Evaporator | Reducer Power(kw) | 1.5 |
Circulating Pump Power(kw) | 0.75 | |
| Brine Pump Power(kw) | 9 | |
Cooling Tower | Model | LX-80 |
| Power(kW) | 1.5 | |
Cooling Pump | Model | GD100-19 |
Power | 5.5 | |
● ICEMEDAL provides stainless steel material options for flake ice machines to meet different hygiene and durability requirements. Customers can select SUS304 or SUS316L stainless steel for ice-contact parts and key components, ensuring clean ice production, corrosion resistance, and reliable performance for seafood processing, food production, and other applications.
● ICEMEDAL provides flexible flake ice production solutions based on your project requirements, including capacity selection, cooling configuration, installation layout, and application conditions.
● We supports customized power configurations for flake ice machines to match different regional requirements. Available options include 380V/50Hz/3P, 220V/60Hz/3P, 440V and 460V configurations for reliable installation and operation worldwide.
● We provides air cooling and water cooling options for flake ice machines based on capacity, installation conditions, and heat rejection requirements. High ambient configurations are available for demanding operating environments to ensure stable ice production.

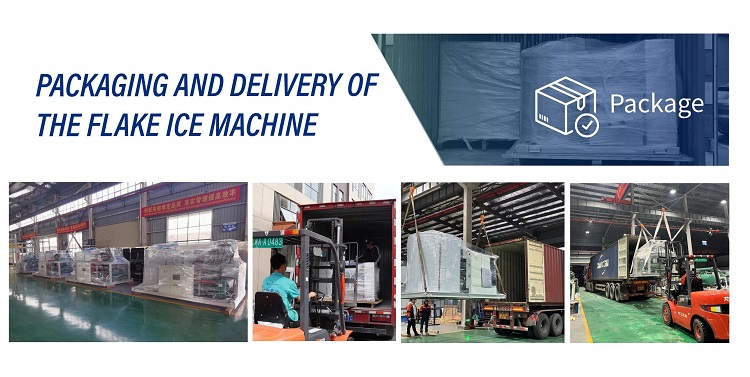

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
1.Completely ice machine contain: ice machine, cooling tower, water pump, water pipes and water pipe fittings.
2. Machine come into use, customer only need prepare power and water for the machine.
3. All required components for install the machine will be provided.
1.What flake ice capacities do you offer?
Icemedal offers flake ice machines from 1 tons to 30 tons per 24hours.
Standard capacities include 1T,2T,3T,5T,10T,20T and 30T perday.Custom industrial systems are available for seafood
concrete cooling,.chemicals,and foodprocessing.
2.Can you support OEM or custom designs?
Yes.lcemedal supports OEM and custom flake ice machine designs.We can customize capacity,voltage,cooling
method,materials,layout PLC control branding and containerized systems to match your plant requirements and local
standards.
3.What industries commonly use this equipment?
Flake ice machines are commonly used in seafood processing,meat and poultry plants,concrete cooling.chemical
processing,produce preservation,supermarkets,bakeries,and medical cooling.
Icemedal supplies industrial flake ice machines for buyers that need fast cooling,steady output,and clean ice contact.The equipment fits high-volume production where temperature control protects product quality process stability,and delivery safety.
Yes. Industrial flake ice machines are widely used in concrete cooling projects.The low-temperature ice can be mixed with water or aggregates to reduce concrete temperature, especially for Large buildings, Bridges, Dams and High-temperature construction projects
Available refrigerants include:R404A,R507, Other refrigerants according to local regulations
6.What compressor brands do you use?
We can provide different compressor options according to customer requirements:Bitzer, Hanbell, Refcomp.
7.Can voltage be customized?
Yes.We support customized voltage.Standard power supply:380V / 3Phase / 50Hz Customization available:220V, 230V, 400V, 440V, 460V. 60Hz Suitable for different countries.
