IMT15 features food-grade stainless steel ice-contact components to ensure hygiene and durability. CE certified and available for factory-direct purchase with a minimum order of 1 unit, suitable for edible ice production, food processing,beverage chains, and ice factory projects. | |||||||||
IMT15
Icemedal
IMT15 is designed for stable edible ice production, widely used in supermarkets, beverage cooling, food processing, and concrete cooling projects.

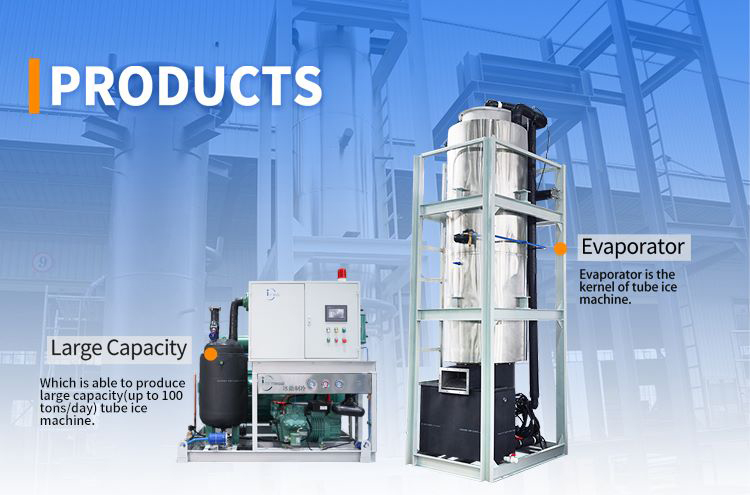

The ice-making component of the tube ice machine consists of an evaporator, which is composed of numerous stainless steel tubes. A water distributor located at the top of the evaporator sprays water uniformly in a spiral pattern into the interior of each tube. Any excess water is collected in a reservoir at the bottom and recirculated back into the evaporator by a pump. A refrigerant flows through the space surrounding the steel tubes, engaging in a heat exchange with the water inside; consequently, the water within the tubes gradually cools down and freezes into ice. Once the thickness of the tube ice reaches the desired level, the water flow automatically ceases. Hot refrigerant gas is then introduced into the evaporator to melt the ice, causing it to detach. As the tube ice falls, the cutting mechanism activates to slice the ice into the pre-set dimensions.
15 tons / 24h stable ice production capacity
Food-grade stainless steel ice contact parts
Fully automatic PLC control system
Ice shape: hollow cylindrical tube ice
Long continuous running design for industrial use
Easy maintenance
Every project is a bit different, so we keep configuration flexible:
Compressor: Bitzer / Hanbell / Refcomp (optional)
Refrigerant: R404A / R507 / R448A available
Cooling system: Air-cooled / Water-cooled optional
Voltage: Customized (220V / 380V / 415V / 440V)
Control: PLC automatic system
| IMT15 15ton Tube Ice Maker Parameters | ||||
Name | Unit | Parameter | ||
Tube Diameter | mm | Φ22 | Φ28 | Φ35 |
Bitzer Compressor Parameter | model | 6FE-50 | ||
Cooling Capacity(kW) | 79 | |||
Power(kW) | 27.9 | |||
Condenser | Model | WN-55 | ||
Heat Exchange(kW) | 164.5 | |||
Condensing Temperature | Degree Celsius(℃) | 40 | ||
Evaporating Temperature | Degree Celsius(℃) | -12 | ||
Ambient Temperature | Degree Celsius(℃) | 32 | ||
Water Temperature | Degree Celsius(℃) | 20 | ||
Refrigerant | R22/R404a | |||
Voltage | V/P/HZ | 380/3/50 | ||
Motor Power | Ice Cutting Motor(kW) | 1.5 | ||
Recircling Pump(kW） | 1.5 | |||
Cooling Tower | Model | LX-60 | ||
| Power(kW) | 1.5 | |||
Cooling Pump | Model | GD80-21 | ||
| Power | 4 | |||
Cooling Fan Power | Power(kW) | 1.5 | ||
Water Cooling Machine Dimension | L*W*H(mm) | 1900*1600*1850 | ||
Refrigerant Quantity | kg | 250 | 275 | 300 |
Machine Weight | kg | 3500 | ||
This machine is used in multiple industries, not just one market:
1.Ice cup & bagged ice production
2.Supermarkets & Chain convenience stores
3.Water factory,Ice Factoy,Cafe factory,Dairy Plant, Bakery
4.Food processing & seafood preservation
5.Concrete cooling in construction projects

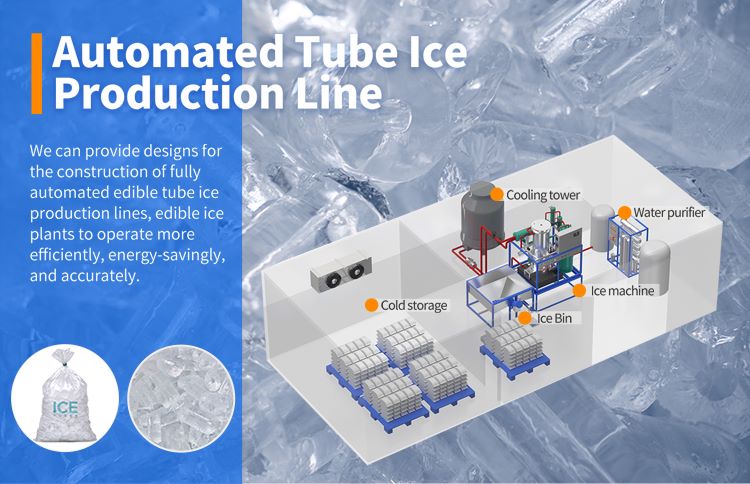

If you are planning a complete business, we can also provide:
Water Purifier
Tube ice production system
Ice Bin
Ice packing machine
Cold room storage
Full ice plant turnkey solution
Some customers start with one machine, then expand into a full production line later.
We are not just selling machines. We focus on stable industrial performance.
Export experience for global markets
Custom engineering for different climates
Stable refrigeration system design
Long-life industrial components
Project-based solution support
In hot regions, ice machine stability matters more than anything else.
Installation guidance (manual + video support)
Remote technical assistance
Spare parts supply
On-Site Overseas Engineering Support
Long-term maintenance support
Q1: Is this machine suitable for edible ice?
Yes, all ice-contact parts are food-grade stainless steel, designed for edible ice production.
Q2: Can I choose compressor brand?
Yes, Bitzer, Hanbell, and Refcomp are all available.
Q3: Which cooling type is better?
Air-cooled is easier to install. Water-cooled performs better in high-temperature areas.
Q4: Can voltage be customized?
Yes, we support different country standards.
Q5: Can I build a full ice plant later?
Yes, we can provide complete turnkey ice plant solutions.
