IMB20
ICEMEDAL

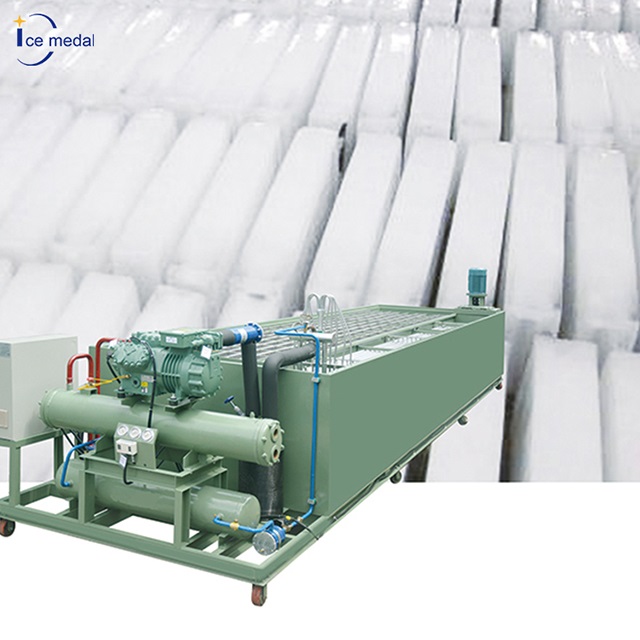

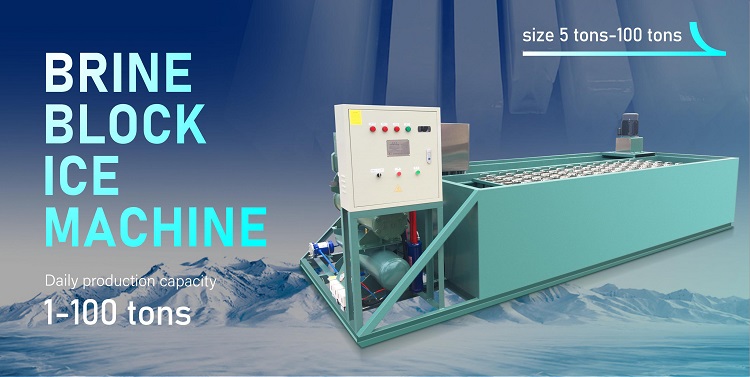

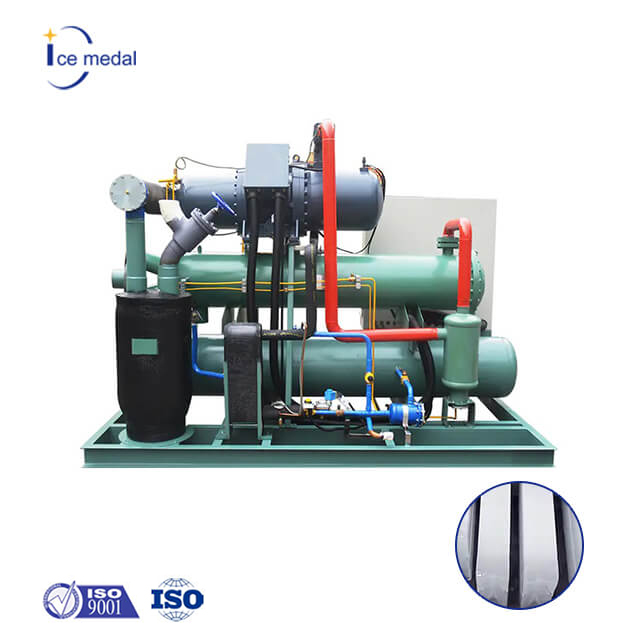

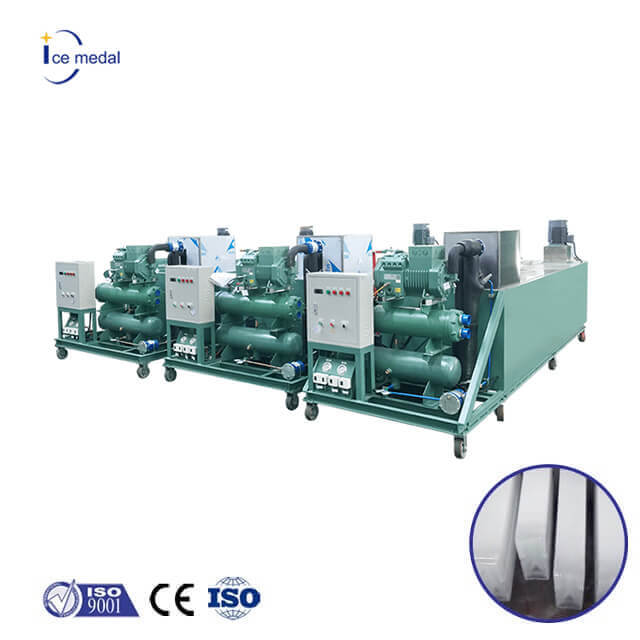

Icemedal IMB20 20tons Ice Block Machine

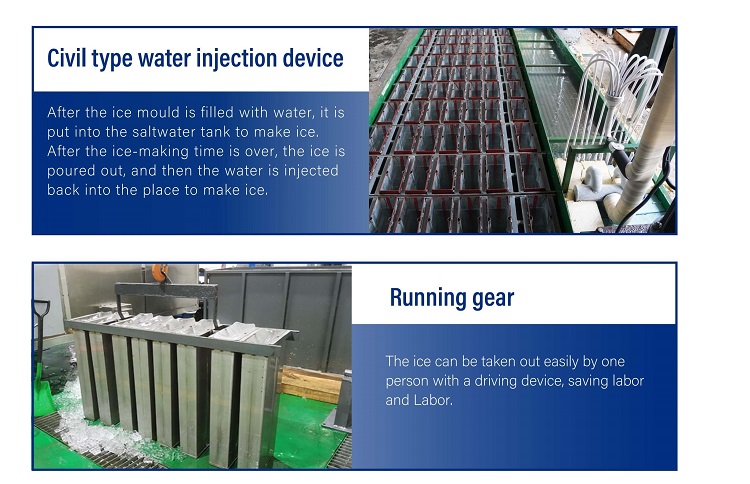

Large civil construction brine ice block machine is a large tonnage block ice machine, which uses masonry concrete to build a brine pool and is usually equipped with a large crane system. This type of brine ice block machine is often seen in regional large ice block manufacturing plants. For example, Mexico-30 tons large ice block ice making plant project and Philippines-20 tons large ice block ice making plant project.
We can provide design, production, installation and after-sales service for any ice ice plant with 3-100 tons of daily output, or for the expansion of existing ice plants and the transformation of automatic production lines.
Introduction of Ice Block:
The outside dimension of ice products is the largest.
Ice that has minimal contact with the outside world and does not melt easily.
Ice block Size: can be customized according to the size of the ice bucket.
The crushed ice blocks can also be crushed according to different use requirements. The crushed ice can be used in all industrial sites.
Particularly suitable for high ambient temperature, voltage instability region.
The ice block is very popular in these regions and countries because of its large volume, cool storage, melt resistance, low cost and simple operation.

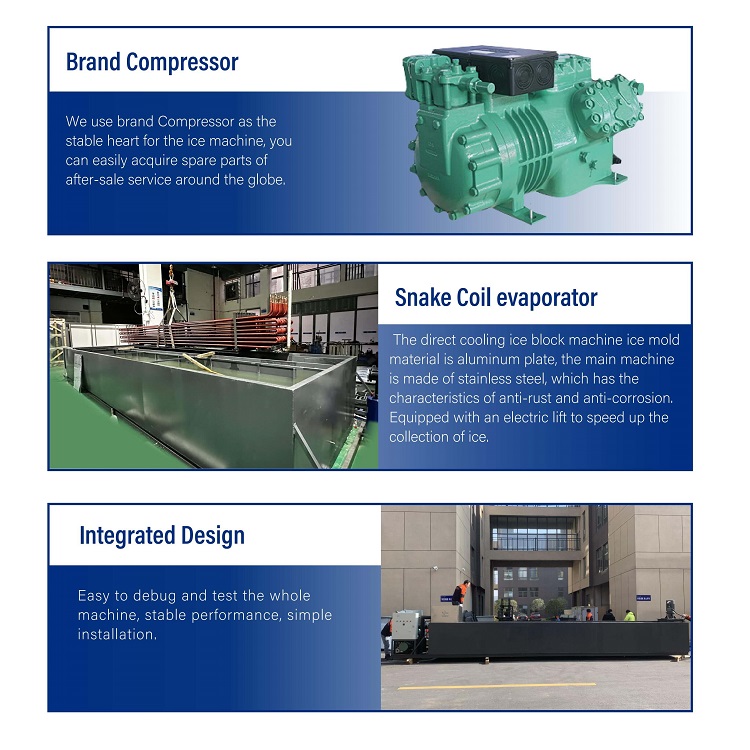

Product Features:
Water temperature low, up to-10℃.
Snake Coil evaporator design, the system oil return smooth, will not cause the compressor piston jam dead phenomenon.
Integrated Design, easy to debug and test the whole machine, stable performance, simple installation.
Product Parameters
| IMB20 20tons Block Ice Machine Parameters | ||
| Name | Unit | Parameters |
Bitzer Compressor Parameter | Model | 4TES-9 |
Cooling Capacity(kW) | 15.92 | |
| Power(kW) | 6.62 | |
Condenser | Model | WN-10 |
Heat Exchange(kW) | 35.8 | |
| Condensing Temperature | Degree Celsius(℃) | 38 |
| Evaporating Temperature | Degree Celsius(℃) | -18 |
| Ambient Temperature | Degree Celsius(℃) | 32 |
| Water Temperature | Degree Celsius(℃) | 20 |
| Refrigerant | R404A / R507 | |
| Voltage | V/P/HZ | 380/3/50 |
| Agitator | Power(kW) | 2.2 |
Cooling Tower | Model | LX-15 |
| Power(kW) | 0.25 | |
Cooling Pump | Model | GD50-17 |
| Power | 1.5 | |
SS304 Ice Mold Dimension | L*W*H(mm) | Customized |
| Machine Dimension | L*W*H(mm) | Customized |
| Remarks | Crane is not included. | |
Block Ice Machine Application:
Block ice are widely used in port terminal ice plant, food processing, aquatic products preservation, cooling, aquatic products, food preservation, ice sculpture ornamental use, edible ice field, etc., the size can be customized according to demand.
