| 50 ton block ice machine is always used to build a containerized block ice plant. The advantages are acceptable price, low power consumption and convenient to move. | |||||||||
IMB50
Icemedal

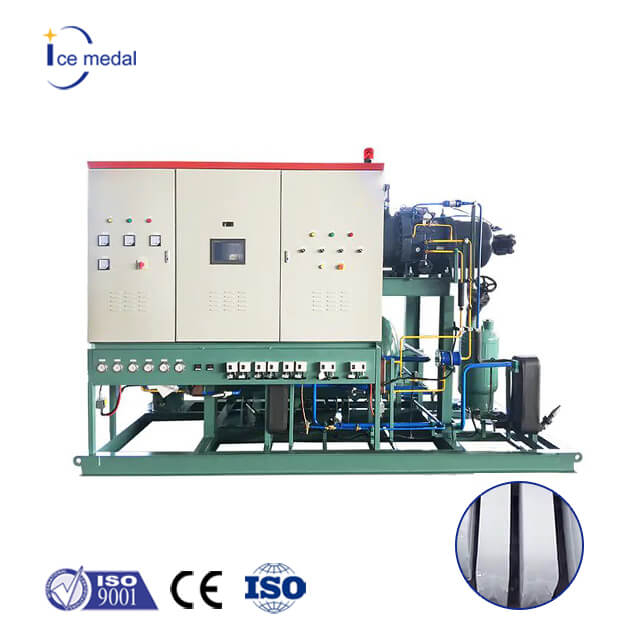

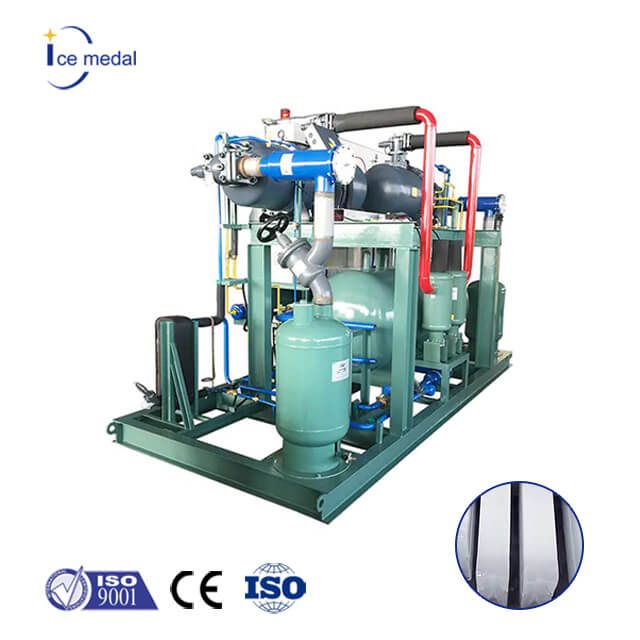

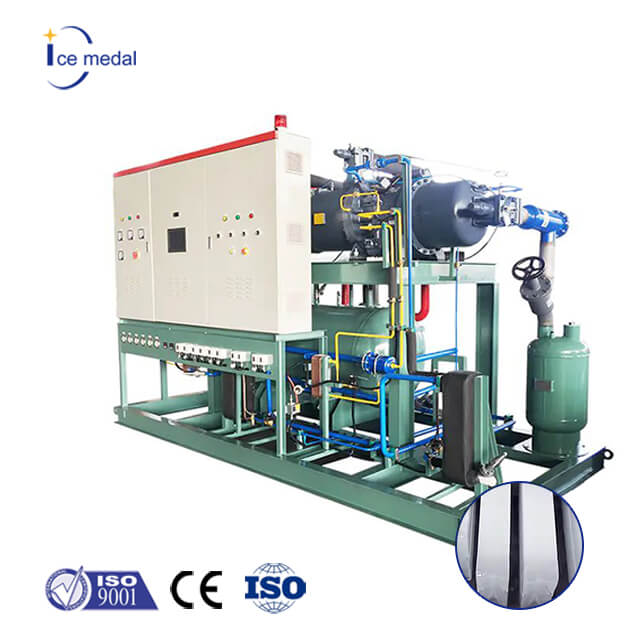

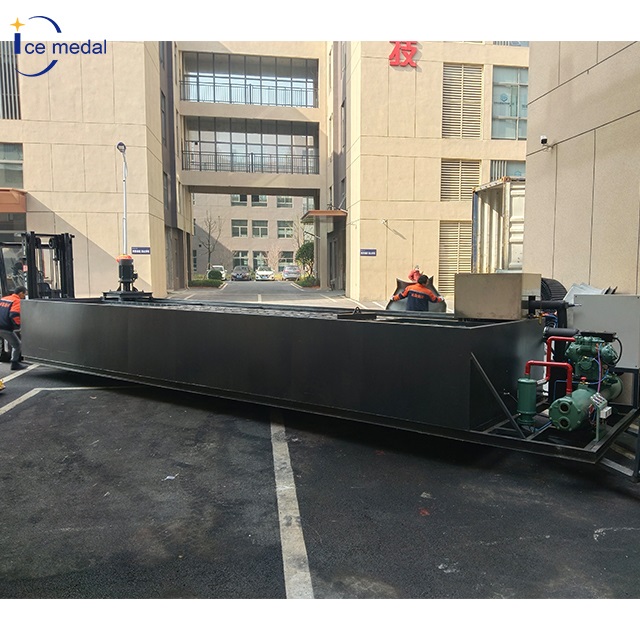

Brine Block Ice Machine

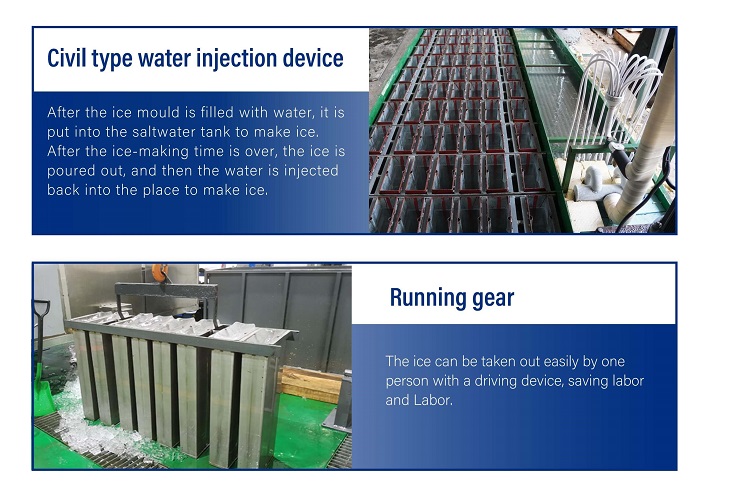

Block ice machines use traditional technology to make block ice.is ice formed by modules filled with cold water in a brine water tank, that is the brine water lowers the temperature of fresh water in the modules to less than zero degrees, which causes the Water freezes into solid blocks
|
Icemedal Ice Block Machine Advantages
Modular design for ease of transportation, movement and installation on site;
Components in contact with brine or water are made of stainless steel;
There are also containerized ice machines, with more advantages and benefits;
Open structure that is easy in maintenance;

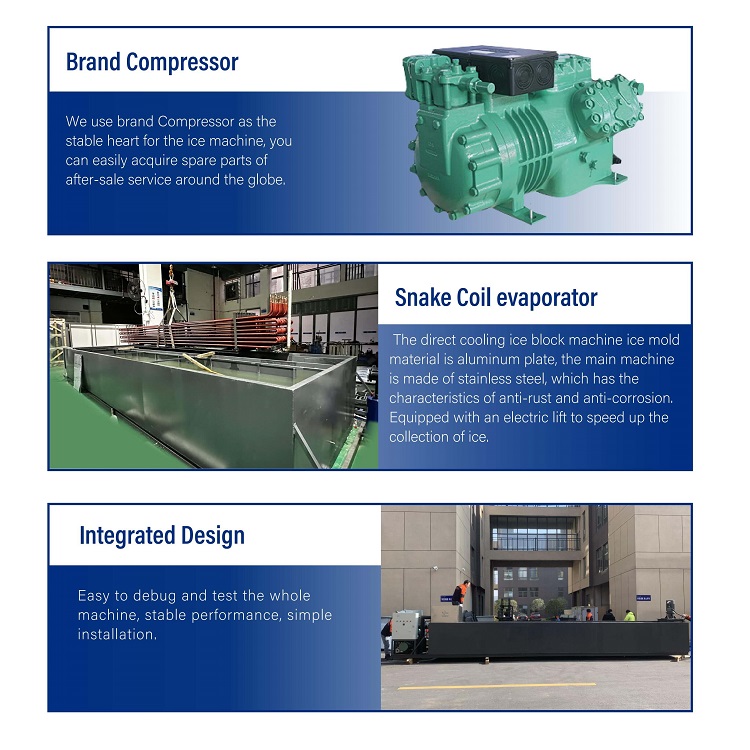

Copper coil evaporator, with rapid and efficient freezing of the block ice;
Quality assured;
Refrigerant R22 or R404a or R507
| Product Parameter
| IMB50 Block Ice Machine Parameters | ||
| Name | Unit | Parameter |
Bitzer Compressor Parameter | Model | 4GE-3 |
Cooling Capacity(kW) | 33.9 | |
| Power(kw) | 14.05 | |
Condenser | Model | WN-20 |
Heat Exchange(kW) | 74.2 | |
| Condensing Temperature | Degree Celsius(℃) | 38 |
| Evaporating Temperature | Degree Celsius(℃) | -20 |
| Ambient Temperature | Degree Celsius(℃) | 32 |
| Water Temperature | Degree Celsius(℃) | 20 |
| Refrigerant | Ammonia R717 | |
| Voltage | V/P/HZ | 380/3/50 |
| Agitator | Power（kw） | 2.2 |
Cooling Tower | Model | LX-30 |
| Power(kw) | 0.55 | |
Cooling Pump | Model | GD65-19 |
| Power | 2.2 | |
Ice Mold Dimension | L*W*H(mm) | Customized |
Machine Dimension | L*W*H(mm | Customized |
| Remarks | Crane is not included. | |
|

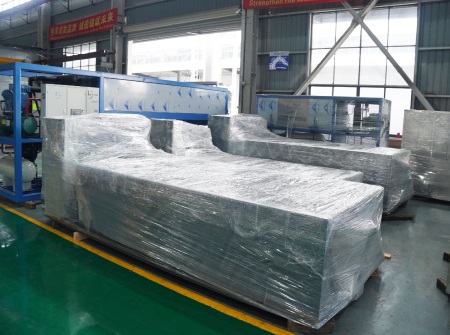

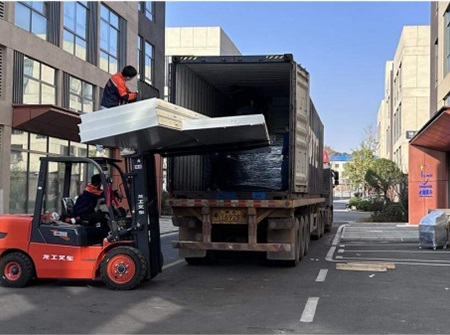

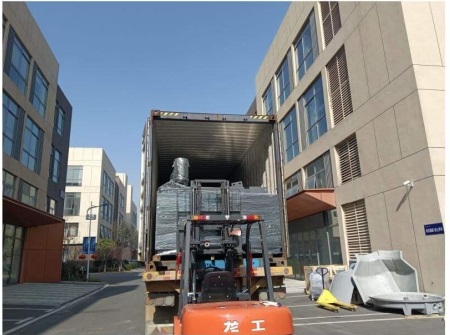

Product Packaging
10 Tons Block Ice Machine Ready Shipping to Mexico
5 Tons Block Ice Machine Ready Shipping to Philippine
3set of block ice machine ready shipping to Congo (DRC)
|
Comment & FAQ
1.Q: How often does the ice block machine add salt?
A:The salt water concentration is tested every 2 weeks (22-25 Baume degrees). When the concentration is lower than the standard concentration, salt needs to be added, because ice film will take away a part of the salt water. Generally, add salt once every 3 months. electricity and water.
2.Q:The ice block machine for sale tests the pH once a month?
A:PH value between 7-8
3.Q: How to define the size of the ice brick machine?
A: A daily output of 1 ton to 10 tons is usually defined as a small-scale ice block machine. The whole machine can be transported in containers.
A daily output of more than 10 tons to 20 tons is usually defined as a medium-sized ice blcok machine.
A daily output of more than 20 tons to 100 tons (more than 100 tons) is usually defined as a large-scale ice block machine, It is necessary to go to the customer's use site for construction, the unit and ice model are completed in the factory, and the salt water tank is manufactured, installed and debugged until the customer's use site is completed
4.Q: Whats the deliver time of your machine?
A:1~5ton, 30 days since the deposit arrived at our account, 5~20 ton, 45 days. (based on the electricity 380V/50Hz/3p, some special design lead time will be longer
|
Company Profile
Hunan Icemedal Refrigeration Equipment Co., Ltd. is a research and development, production, sales and service in one of the professional refrigeration equipment manufacturing enterprises. The products mainly include cold room, storage cold room,Ice Flake machine, ice cube machine, ice tube machine, ice block machine.
Adhering to the “Integrity, win-win, enjoy life” concept, has been committed to building modular boutique factory for customers,to provide customers with solutions for profit replication, so as to achieve our "Win-win" business value.
