20 tons ice cube machine is a kind of large-scale edible ice making equipment, mainly used to produce square ice, which is used in food processing, cold chain transportation, all kinds of commercial places such as hotels, restaurants, coffee shops, milk tea stores and so on.
| |||||||||
IMC 20
ICEMEDAL

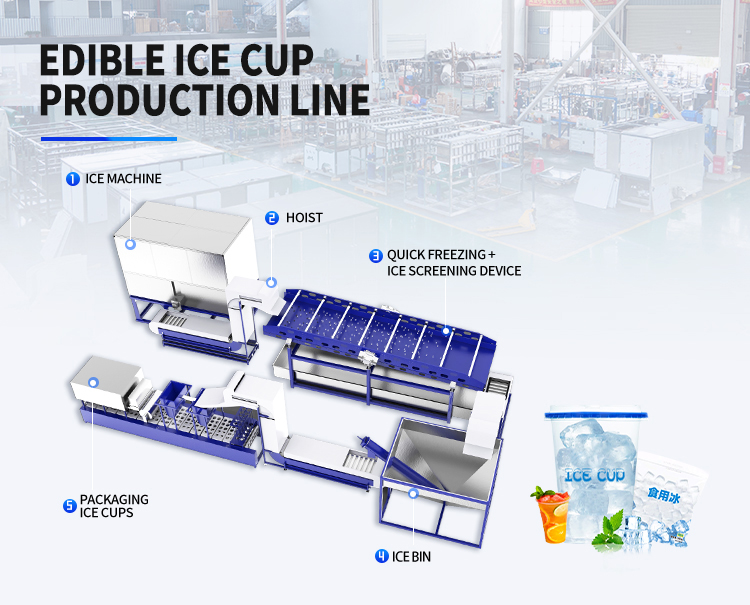

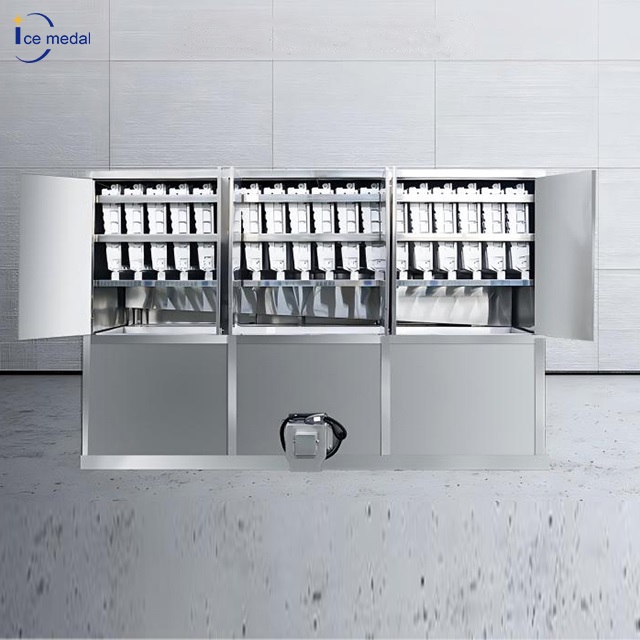

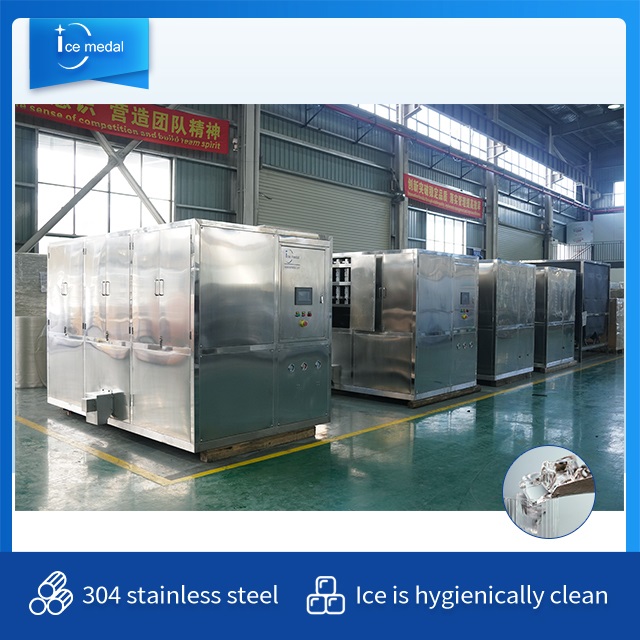

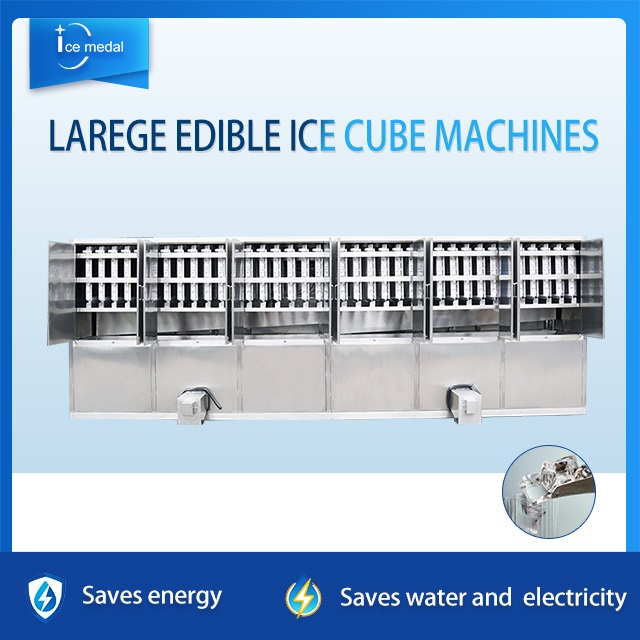

20 tons ice cube machine is an ice-making equipment specially used to produce large cube ice. It is widely used in food processing, fishery preservation, bar catering, cold chain logistics and other industries. The daily output of this equipment can reach 20 tons (i.e. 20,000 kg) in 24-hour ice cubes, which can meet the require of large-scale ice factory. When used with our company's automatic ice packaging machine, unmanned operation can be achieved, reducing labor costs and improving production efficiency.
Product Parameters
1-20 tons cube ice machine paremeters | ||||||
Model Parameters | IMC1 | IMC2 | IMC3 | IMC5 | IMC10 | IMC20 |
Daily output (T/24 h) | 1 | 2 | 3 | 5 | 10 | 20 |
Compressor Power | 4.34KW | 7.88KW | 10.58KW | 21KW | 42KW | 73.5KW |
Fan Power of Cooling | 0.18KW | 0.37KW | 0.56KW | 0.75KW | 1.5KW | 2.2KW |
Cooling Pump Power | 1.1KW | 1.5KW | 1.5KW | 2.2KW | 4KW | 5.5KW |
Cooling Pump Power | 1800 | 1630 | 1980 | 2890 | 5730 | 7100 |
Unit Size | 1800 | 1630 | 1980 | 2890 | 5730 | 7100 |
1000 | 1600 | 1630 | 1780 | 1780 | 2250 | |
1700 | 1706 | 1860 | 1860 | 2130 | 2300 | |
Unit N.W. (kg) | 800 | 1000 | 1200 | 1600 | 3000 | 6000 |

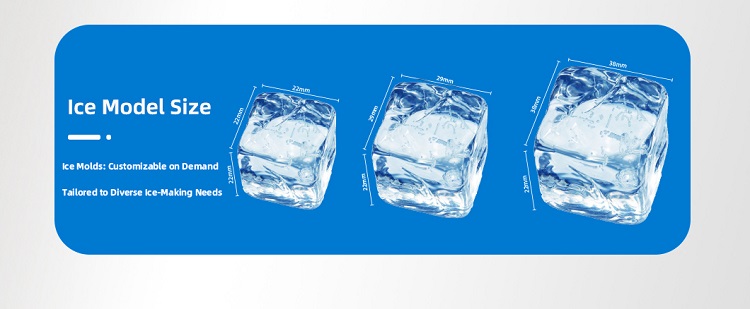

1. Size of cube ice: 22*22*22 mm ; 29*29*22 mm ; 38*38*22 mm.2. Compressor brand: Bizter / Frascold; refrigerant: R22/ R404A; Cooling Method: Water Cooling / Air Cooling. 3. Power Supply: Voltage 380V/3P/50Hz (For non-standard voltage, unit configuration needs to be calculated separately). 4. Operating Conditions: T(water supply):20 ℃, T(ambient):32 ℃, T(condensing): 40 ℃, T(evaporating):-10 ℃. 5. Note: The actual ice production varies due to the influence of the water supply temperature and ambient temperature. 6. The final interpretation of the above mentioned parameter is in Icemedal, there will be further notice, if there any technical change. |
Product Details
The Features of Cube Ice Machine
Production: About 20000kg of ice cubes can be produced per day.
Ice shape: The ice cubes produced are square, suitable for a variety of uses.
High efficiency and energy saving: Advanced technology is used to ensure efficient operation and energy saving.
Automation: It has automatic ice making, ice removal and cleaning functions, and is easy to operate.

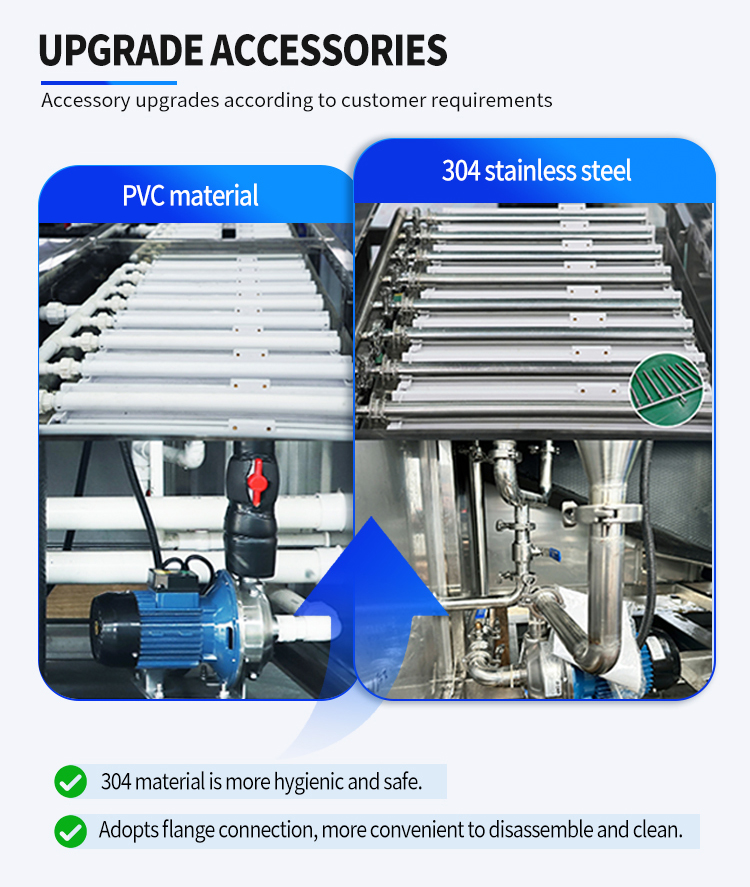

Durability: High-quality stainless steel materials are used to ensure long-term and stable operation of the equipment.
Products Application

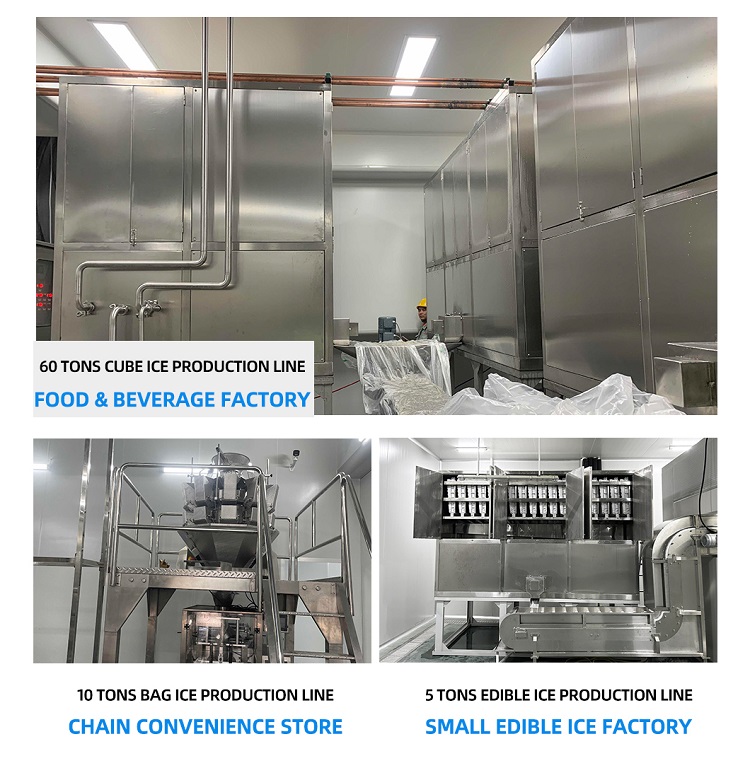

Ice cube machines are suitable for a variety of environments, such as food processing plants, bars, restaurants, ice factories, and convenience store chains.
FAQ:
1.Q:Are you add refrigerant in the ice machine?
A:Yes,Our equipment is filled with refrigerant,and it can be used as long as it is connected to electricity and water.
2. Q:Do you test the ice machine in your factory?
A:Yes,Our equipment will be tested twice before being put into use:factory inspection and operation test after instdestination at the buyer’s destination to ensure that we provide the better service to customers,In addition,Our company can provide a complete set of solutions for the actual needs of customers,Creating value and fulfilling customers is our principle.
3. Q:All your ice machine is based on 380V 50HZ power requirement?Do you have the right power requirement for aboard?Such as 440V 60HZ or 220V three phase that suitable for America?
A:Our ice machine and power,voltage can suitable for your country,please make the power requirement be clear in your order .
4. Q:What’s the deliver time of your machine?
A:1-5 tons,30 days the deposit arrived at our account ,5-20tons,45 days.(based on the electricity 380V/50HZ/3P,some special design lesd time will be longer.
