Flake Ice Machine Low Ice Output & Wet Soft Ice? Step-by-Step Troubleshooting Guide

Industrial flake ice machines, with the advantages of easy installation and stable operation, have been widely used in fishery preservation and cooling, concrete engineering cooling, food processing ice production and many other scenarios. However, after long-term continuous operation, the equipment may suffer from reduced ice output.

This article summarizes the top five frequent causes of this fault. You can first carry out on-site self-inspection against this guide. If you encounter problems that cannot be solved on your own, you can contact our professional after-sales team at any time for technical support.

1. Clogged Condenser & Poor Heat Dissipation (Most Common)

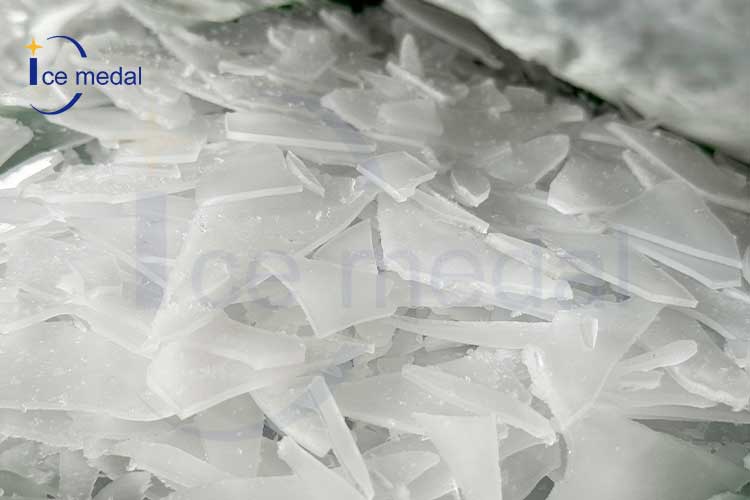

This is the number one cause of gradual ice loss and wet, soft flakes — and it is almost entirely preventable.

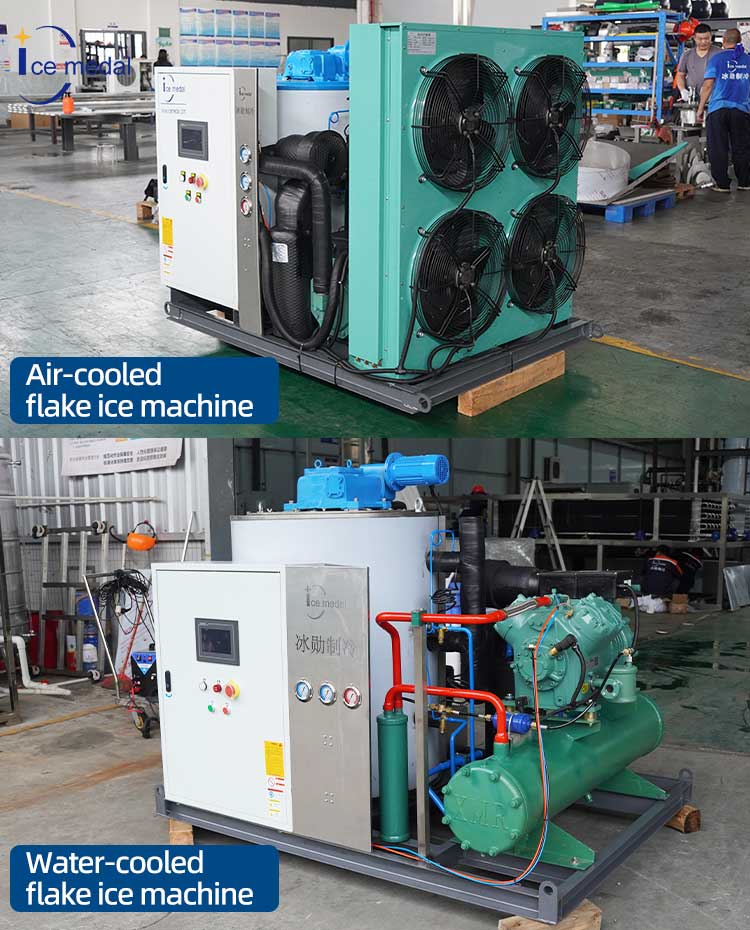

• Causes: Dust and grease caked on air-cooled condenser fins; scale buildup inside water-cooled condenser pipes; poor ambient ventilation; room temperature exceeding 40°C. All of these raise system high-side pressure and drag down cooling efficiency sharply.

• Symptoms: Ice production drops by 30% or more, flakes are thin, wet and break easily, and the compressor cycles frequently on high pressure.

• Solutions: Clean condenser fins thoroughly with compressed air or a soft brush; descale water-cooled pipelines; clear obstructions around air inlets and outlets; improve room ventilation or add exhaust fans.

2. Slight Refrigerant Leak or Low Charge (Second Most Frequent)

Unlike a total leak that produces no ice at all, a small leak still makes ice — but much less and much softer.

• Causes: Minor seepage at pipe joints or valve connections over time, slowly reducing refrigerant level.

• Symptoms: The suction line feels cool but not frosty; frost forms only on part of the evaporator drum; output falls steadily week by week and flakes carry excess water.

• Solutions: Do not top up refrigerant blindly. Contact our technical team to locate the leak point, perform a proper repair and recharge refrigerant to factory specification.

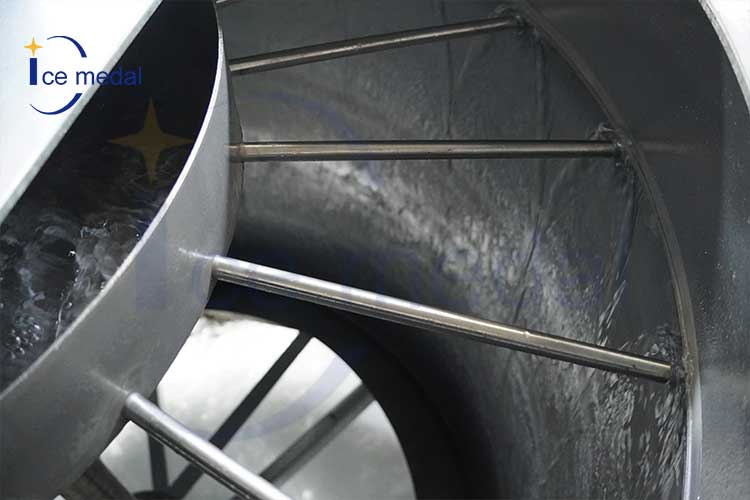

3. High Inlet Water Temperature or Excessive Water Flow

Water conditions directly impact how fast and how solidly ice forms on the drum.

• Causes: Inlet water above 30°C, very common in summer or when water lines run near hot pipes; water pump flow set too high, so fast-running water shears off thin ice before it thickens.

• Symptoms: Ice output drops in hot weather, flakes are thin and soggy, and you can see visible water streams running down the evaporator.

• Solutions: Lower inlet water temperature or add a pre-cooling line; adjust the pump outlet valve to reduce flow to rated level; check that the water distributor spreads water evenly rather than pouring in concentrated streams.

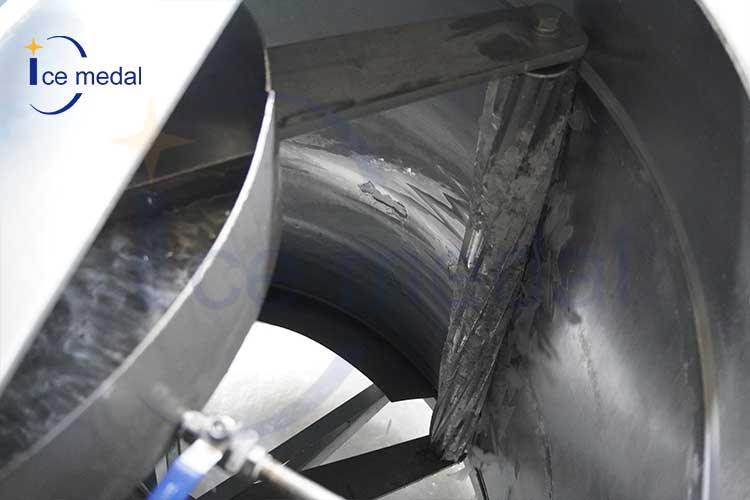

4. Scale Buildup on Evaporator Drum

Hidden inside the machine, scale slowly strangles ice production over months.

• Causes: Long-term use of hard water without regular cleaning leaves a mineral layer on the freezing surface. Scale acts as insulation, blocking cold transfer from the drum to the water.

• Symptoms: Output drops slowly over time, flakes are soft and brittle, and the evaporator surface feels uneven to the touch.

• Solutions: Run a full descaling cycle with food-grade citric acid; install a water pre-filter or softener in hard-water areas to slow scale formation.

5. Misadjusted Expansion Valve or Faulty Ice Thickness Sensor

When controls are off-target, ice never reaches proper thickness before harvesting.

• Causes: Expansion valve opening set incorrectly, limiting refrigerant supply; ice thickness sensor shifted out of position, ending the freezing cycle too early.

• Symptoms: Flakes are consistently thin and wet, even after cleaning and refrigerant checks.

• Solutions: Do not adjust the expansion valve yourself. Contact our after-sales engineers for professional calibration and sensor adjustment.
