What Check During Factory Testing Before an Ice Machine Is Shipped

When we test an industrial ice machine before shipment, we do not just check whether it starts making ice. We check its production capacity, ice shape and quality, and refrigeration system performance. The specific checks vary by machine type, such as a tube ice machine, flake ice machine, or cube ice machine. Here is what Icemedal checks during factory testing and what the results tell us.

1. Ice Production and Shape: Does the Industrial Ice Machine Meet Its Rated Capacity?

Rated capacity means the amount of ice a machine is designed to produce over 24 hours under specified operating conditions. These conditions may include inlet water temperature (20°C), ambient temperature (32°C), ice specifications, and machine configuration. The applicable rated conditions may vary by machine model and ice type.

For example, a 10-ton industrial ice machine is rated to produce 10 tons of ice per 24 hours under its specified conditions. To assess whether the machine meets its rated capacity, we compare its measured daily output with the rated capacity and the acceptance requirements agreed upon by both parties.

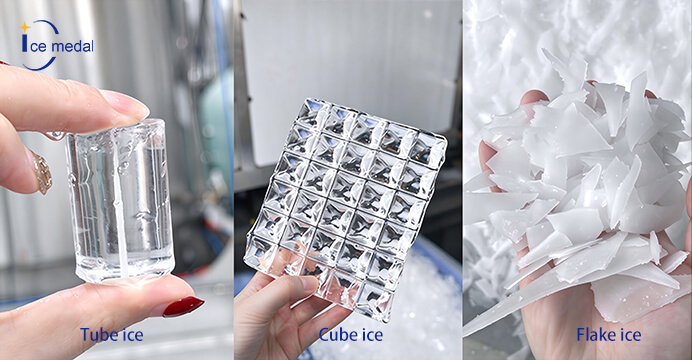

During testing, we check the collected ice weight, production cycle, and ice characteristics according to the machine type. For a tube ice machine, this may include tube diameter, length, and wall thickness. For a flake ice machine, we examine ice thickness and flake consistency. For a cube ice machine, we check cube dimensions, shape, and consistency. The ice should match the customer's agreed specifications without persistent deformation or abnormal breakage that affects its intended use.

Why might output be low during initial commissioning? Warm inlet water increases the heat that must be removed. High ambient temperatures can increase the condenser load. Ice specifications, water distribution, refrigerant conditions, and cycle settings can also affect production.

Our engineers review the actual temperatures, refrigeration readings, water supply, and operating cycle. After correcting any identified problem, we run the machine again and reassess its production capacity and ice characteristics.

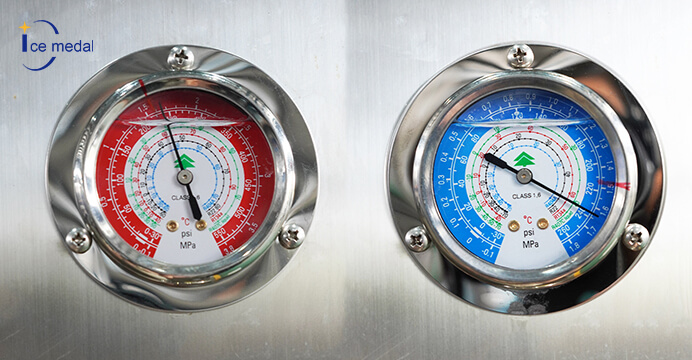

2. Suction, Discharge, and Evaporating Pressure

Suction pressure reflects conditions on the low-pressure side of the refrigeration system. Discharge pressure helps show how the compressor and high-pressure side are operating. Evaporating pressure helps engineers assess the refrigerant's evaporating conditions.

Our engineers compare these readings with the expected operating range for the refrigerant, compressor, and machine design. They also consider water temperature, ambient temperature, and the stage of the ice-making cycle. These checks apply to different industrial ice machine types, although the relevant operating parameters and acceptable ranges depend on the specific system.

Pressure readings that remain outside the expected range, fluctuate abnormally, or coincide with low ice production require further investigation. Possible causes include insufficient heat rejection, refrigerant circuit issues, incorrect control settings, or other system faults.

A reading is not automatically a failure just because it differs from a general reference value. The machine must be assessed against its own technical requirements and specified operating conditions.

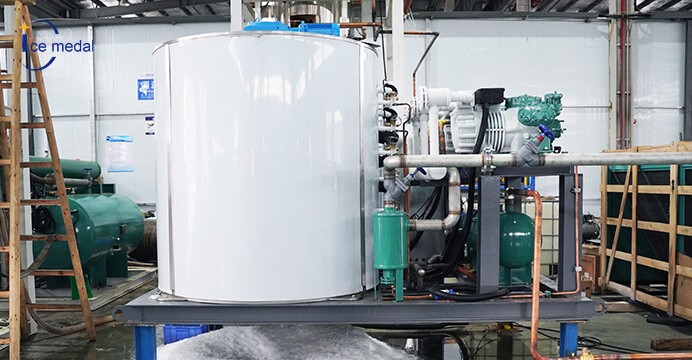

3. Frost Formation and Compressor Oil Return

Frost patterns can help engineers identify uneven cooling or possible refrigeration problems. We observe the relevant components and compare frost formation with pressure readings, temperatures, and ice production. The areas being inspected may differ between tube ice machines, flake ice machines, and cube ice machines because their evaporator structures and operating cycles are different.

Uneven or unexpected frost may indicate a problem, but frost alone cannot confirm the cause. We investigate further before deciding whether an adjustment is needed.

Oil return is equally important for systems that use an oil-lubricated compressor. Engineers check compressor operation and relevant signs of oil circulation according to the system design. Abnormal oil return may affect compressor lubrication and operating reliability. If readings or operating signs raise concerns, we investigate the cause and verify the system after corrective work.

4. Water Temperature, Ambient Temperature, and Controls

For industrial ice machines, rated operating conditions depend on the machine model and configuration. For example, the specified rated conditions for some Icemedal machines include an inlet water temperature of 20°C and an ambient temperature of 32°C. When water and ambient temperatures are below the applicable rated conditions, ice production may increase. When either temperature rises above its rated condition, actual output may decrease. The degree of change depends on the machine design, ice type, and operating conditions, so we assess production alongside the recorded test temperatures.

We also check whether the control system follows the intended ice-making and harvesting sequence. For tube ice machines, this includes the relevant ice-forming and harvesting operations. For flake ice machines and cube ice machines, we check the corresponding production and ice discharge processes. Unexpected stops, repeated alarms, failed harvesting, or readings that do not match actual operation require investigation.

A satisfactory result means the machine completes the required operating sequence and its relevant controls and protective functions respond as designed.

5. What Happens When a Machine Fails a Check?

We do not treat an unresolved problem as an acceptable final result. If production capacity is below the required level, ice quality or shape is inconsistent, pressure readings are abnormal, or the machine does not operate as intended, our engineers investigate, correct the identified issue, and repeat the relevant checks.

We keep supporting records such as test videos, ice photos, instrument readings, and commissioning records, where applicable. These records help us review the results and document the work completed during factory testing.

Once the required checks have been completed, the agreed acceptance criteria have been met, and outstanding issues have been addressed, the machine can proceed to shipment preparation in accordance with the delivery process.

For us, factory testing is not simply about seeing ice come out of a machine. It is about checking actual performance, understanding the test results, and assessing whether the industrial ice machine is ready for delivery.
